Elegant column lighting feature, which is suitable for both modern and classic architecture.Ideal for creating orientation with exceptional visual comfort.These luminaries offer general ambient light in open spaces giving a sense of security in night-time.Clean Lines and pure form are the underlying elements in this series of column light,designed to provide rotationally symmetrical illumination,Light emission 360°.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063)with die-cast aluminium components and non corrosive SS fasteners.
• Shielded light.
• For optimum illumination,these luminaries can be supplied in different heights.
• Non yellowing UV stabilized clear polycarbonate diffuser.
• Silicone gasket.
• MS mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7042-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Practical . Elegant . Efficient
• Timeless modern design options.
• Easy to maintain, robust and durable construction.
• Soft diffused lighting protects pedestrians from glare and provides distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for Private & Public areas,Illuminating Driveways,Pathways,Building surrounds,Entrances,Squares & Gardens,Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

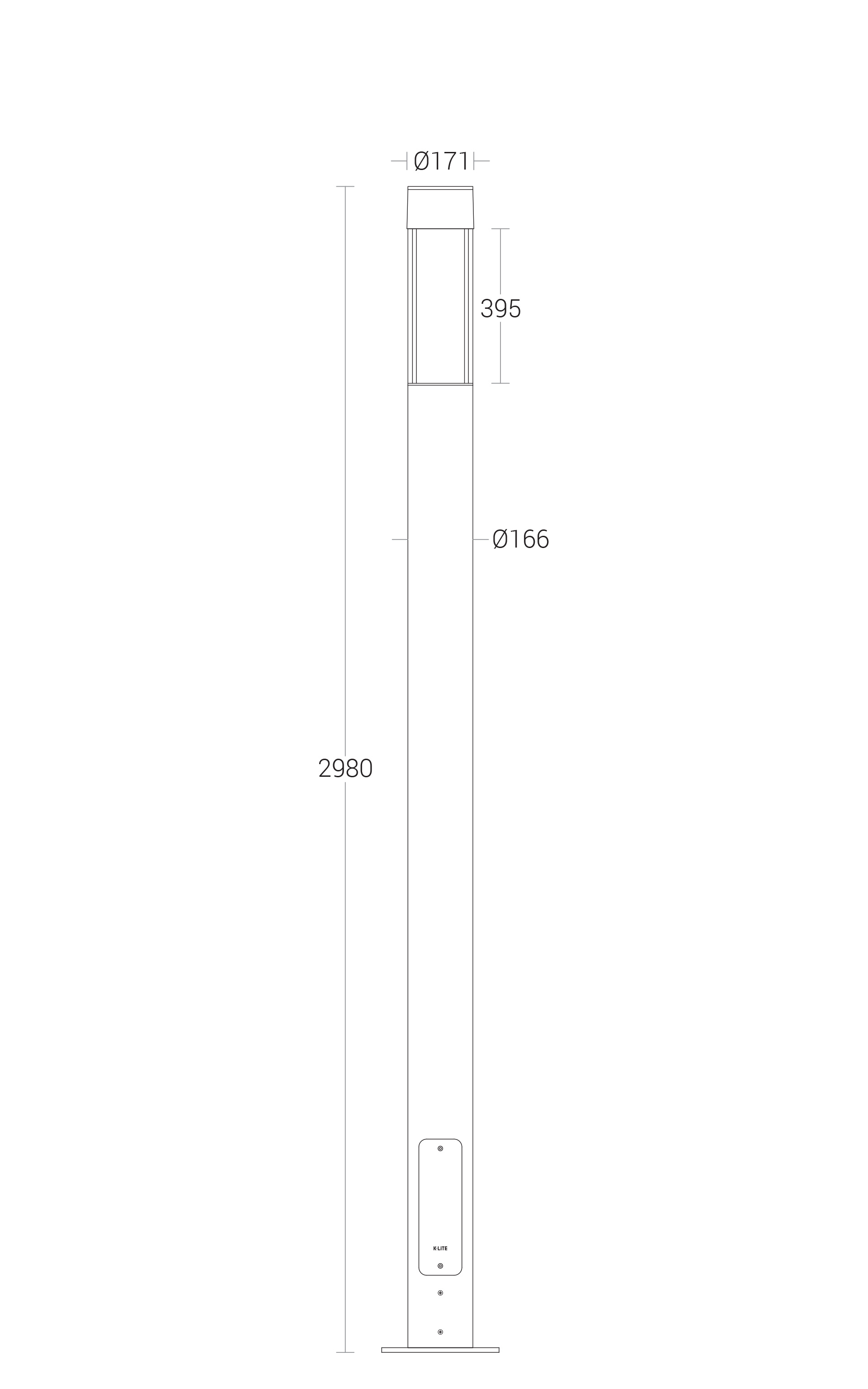

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-458745W LED WW,NW,CW, Clear polycarbonateØ171 x 2980mmM11
Detailed Foundation Drawing
KL-704230W LED WW,NW,CW, Clear PolycarbonateØ171 x 2980mmM11
Detailed Foundation Drawing
