Ritu Bollard

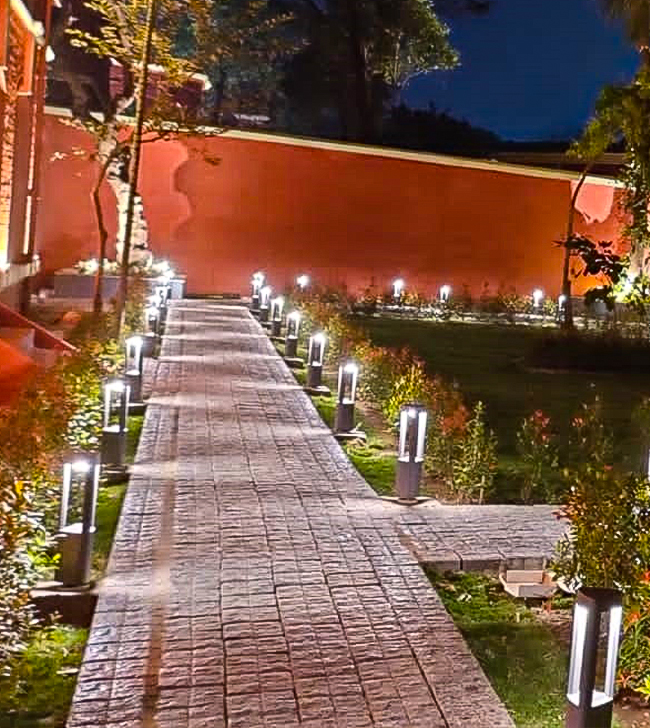

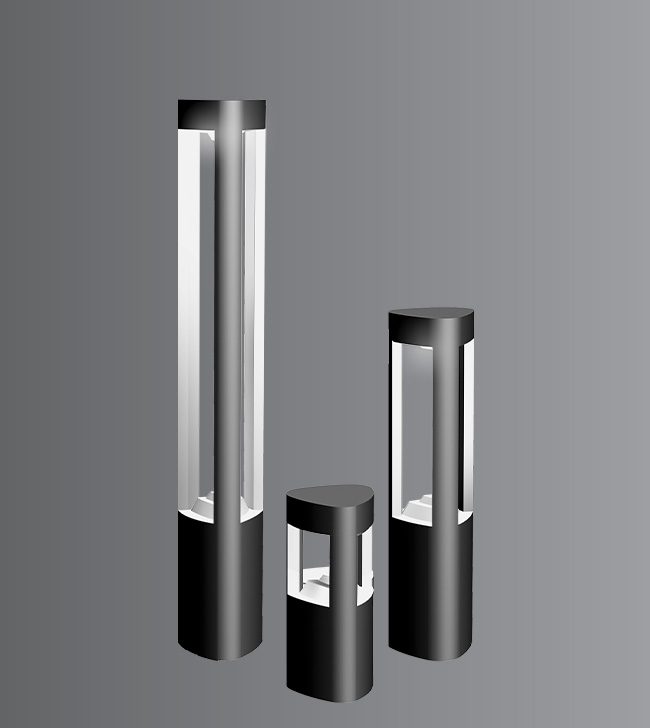

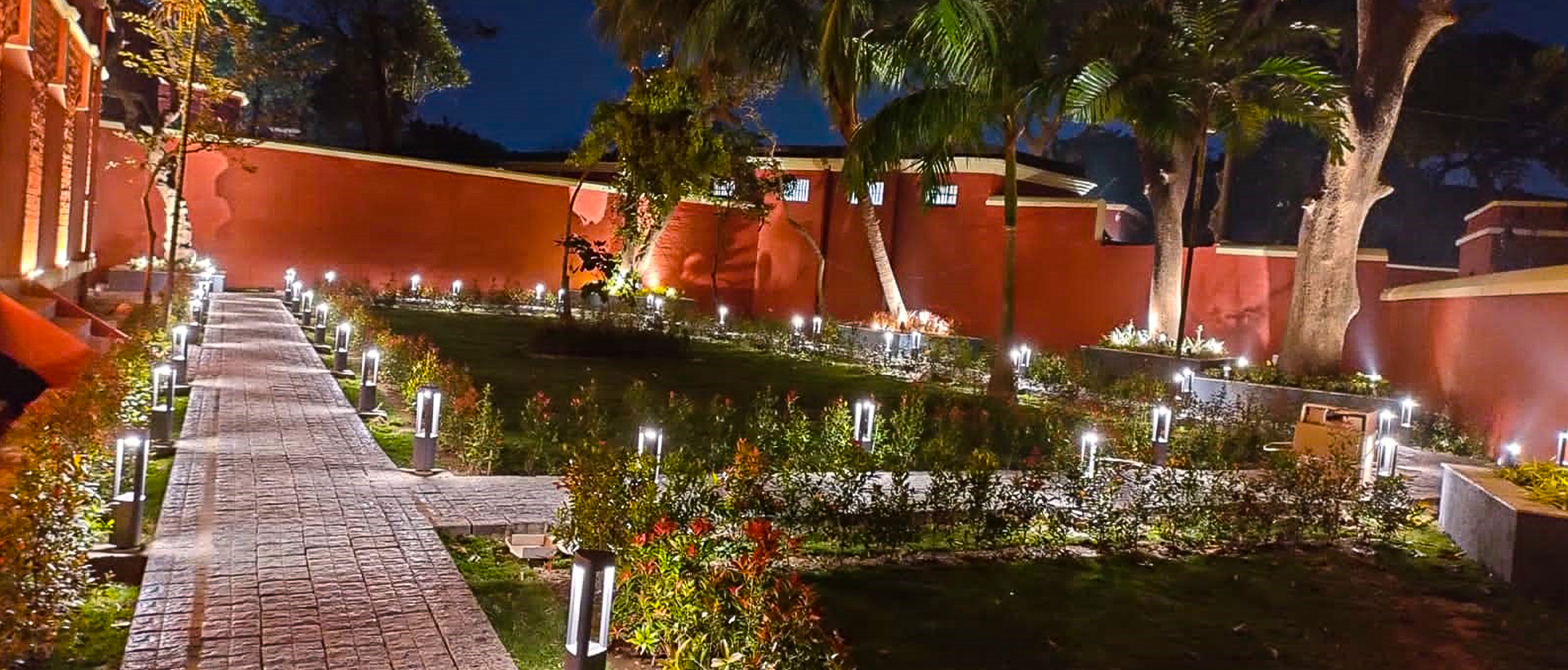

These environmentally friendly LED garden and pathway luminaires, create a pleasant light distribution with a high degree of visual comfort. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture. Clean Lines and pure form are the underlying elements of this series of LED bollards.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• For optimum coordination with lighting situation,these luminaries can be supplied in three different mounting heights.
• Non yellowing UV stabilized translucent polycarbonate diffuser
• Silicone gasket.
• Mounting plate die cast aluminium with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-6951-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for low/medium public areas.

Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

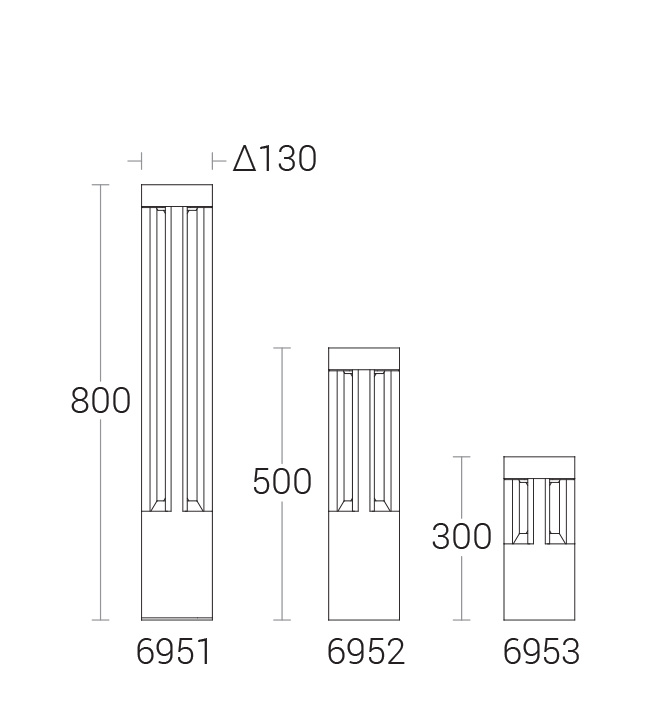

KL-69539W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateTr.130 x 300mmM5
Detailed Foundation Drawing
KL-6953.IES
KL-6953.IES
KL-6953.PDF
KL-6953.PDF
6953.pdf
KL-69529W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateTr.130 x 500mmM5
Detailed Foundation Drawing
KL-6952.IES
KL-6952.IES
KL-6952.PDF
KL-6952.PDF
6952.pdf
KL-69519W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateTr.130 x 800mmM5
Detailed Foundation Drawing
KL-6951.IES
KL-6951.IES
KL-6951.PDF
KL-6951.PDF
6951.pdf
