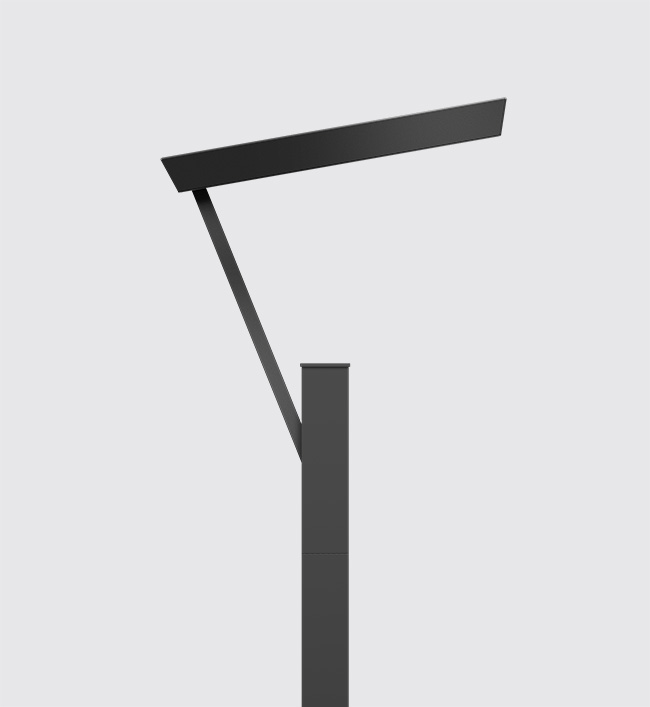

Ezhil 2.0 pathway luminaire, is an innovative design options to provide visual integration with the environment. Designed for high lumen efficiency at reduced wattage creating exceptional visual comfort. Product offered asymmetrical light distribution.

Material
Body : Extruded aluminium alloy (grade 6063)
Impact Protection : IK09
Ingress Protection : IP65 LED Module
Lens : Polycarbonate optical lens

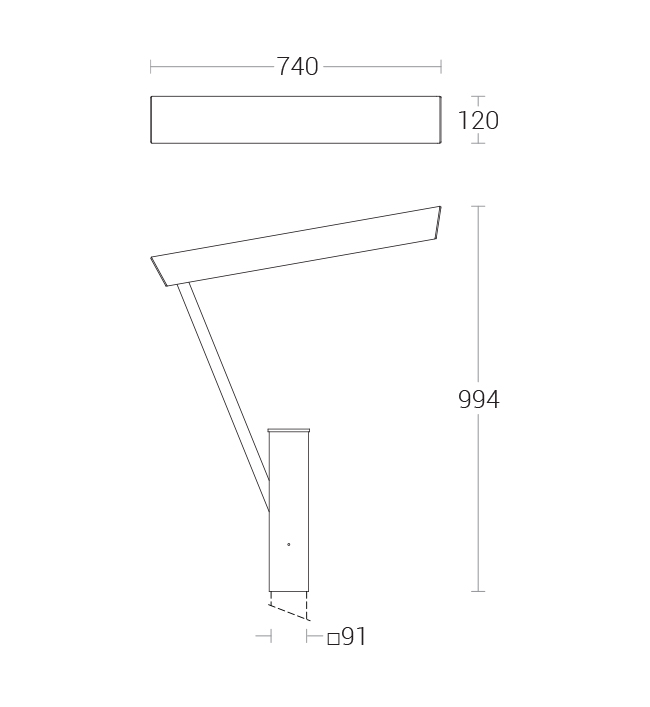

Mounting : Suitable for mounting on 91mm Square Pipe

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV / 6KV

Product Configurations
Wattage : 30W / 50W
Light Distribution : Type III
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application

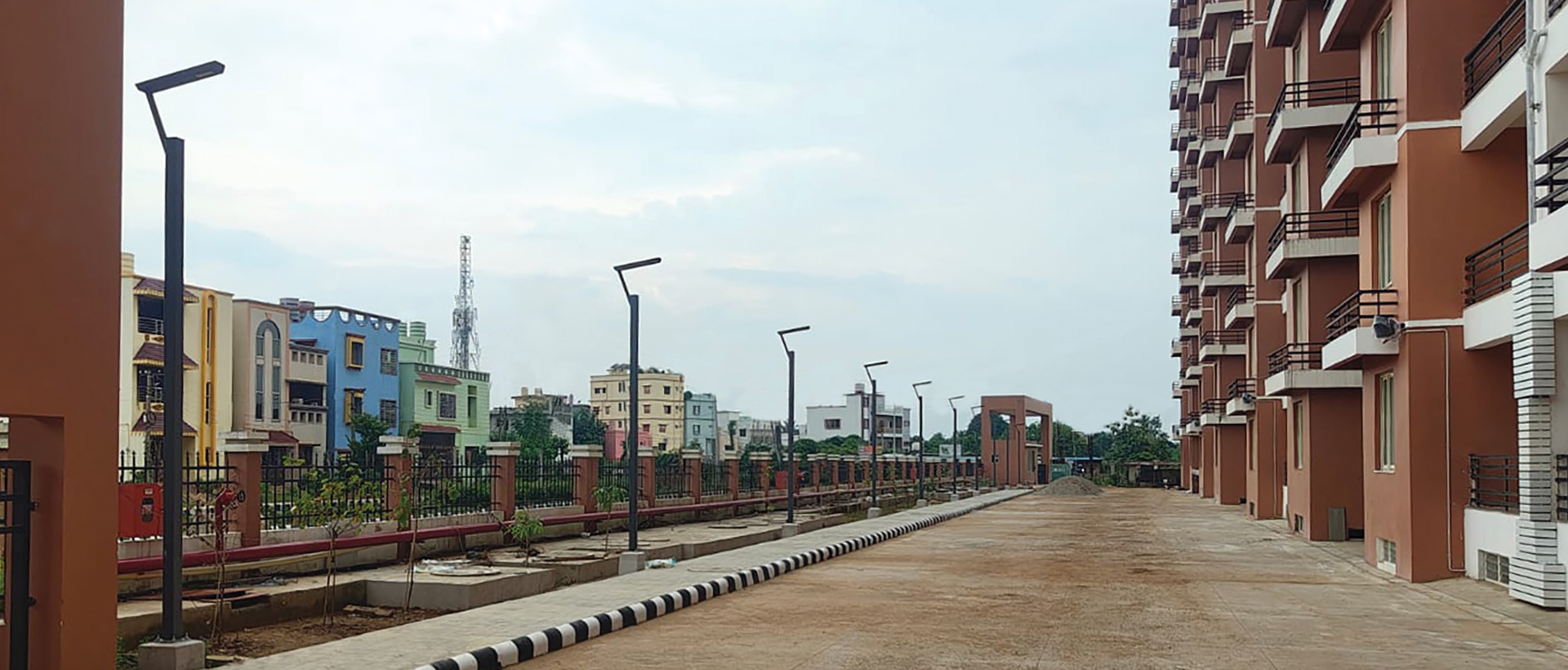

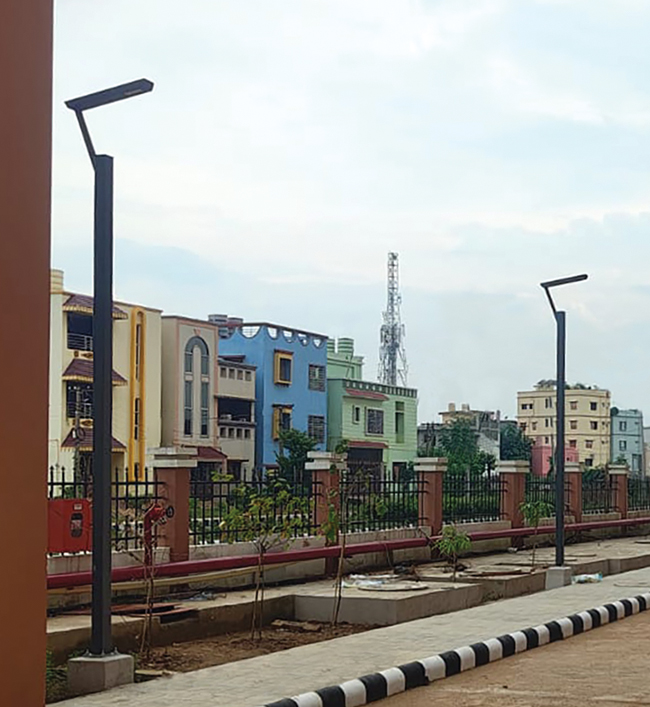

Illuminating parks, commercial complex, Street Lighting, Pathways in residential buildings & Office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
