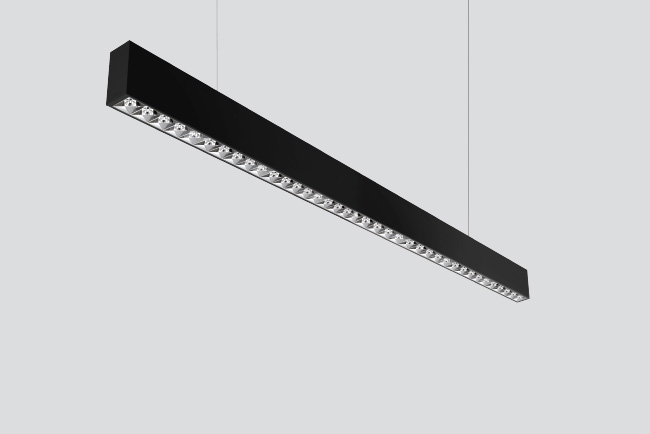

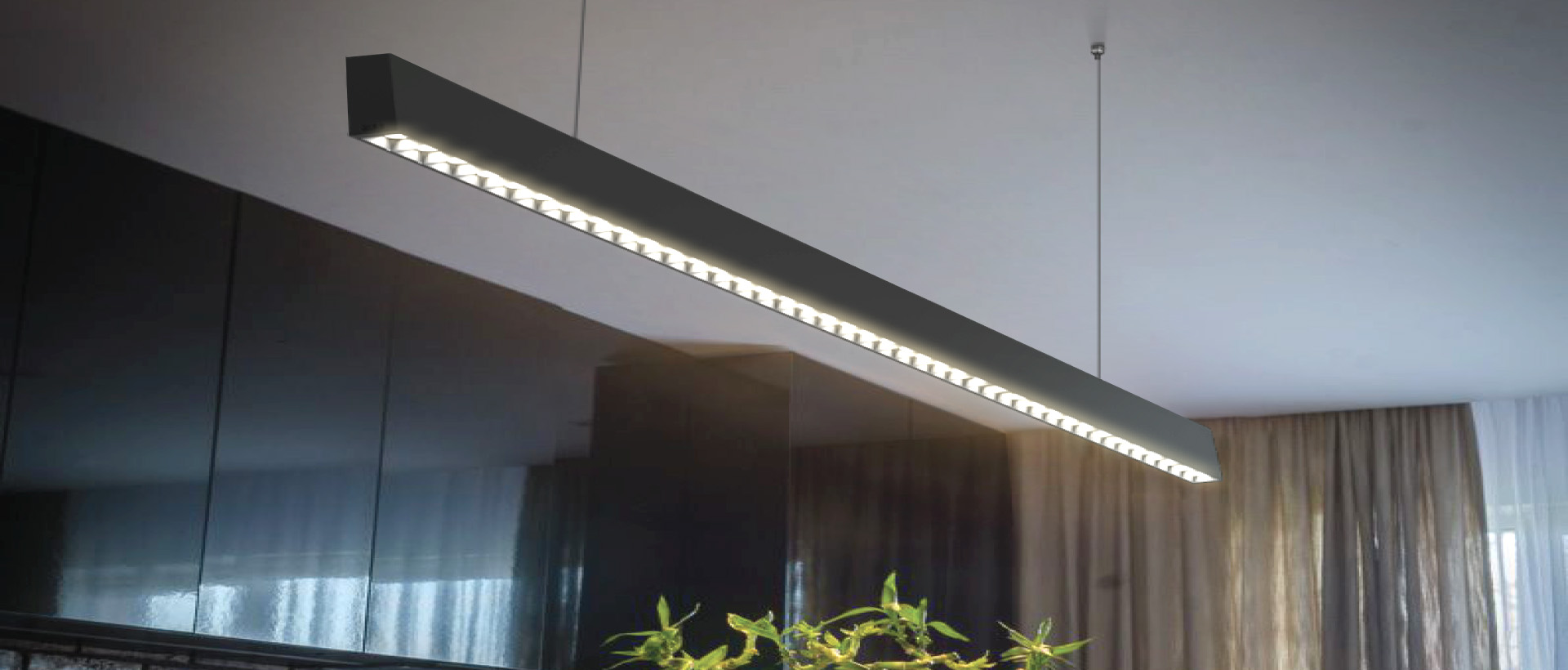

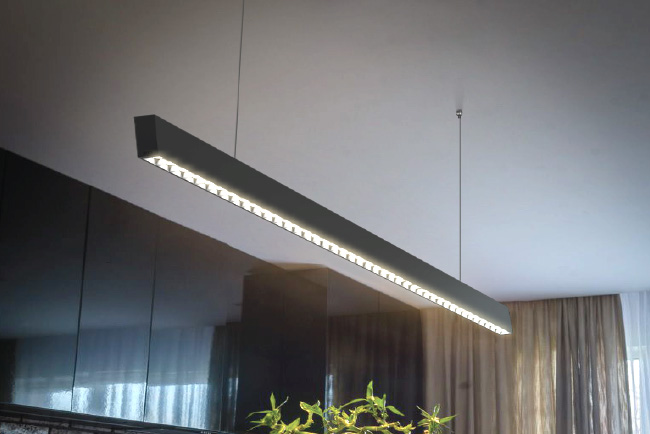

Revo-R Series
Revo-R luminaire is a versatile solution for projects that demand high quality of the lighting system and high visual comfort. With its modular design, the Revo-R can be used as an individual fixture or as a combination of luminaires put together in continuous lines.
Product Description
• Luminaire made of extruded aluminium for better thermal management.
• polycarbonate diffuser for optimum optical performance.
• Vaccum metalized chrome finish secondary reflector
• Suitable for suspended mounting.
• Supplied with standard suspension kit (1metre).
• Cable entries for through-wiring of mains supply cable
• Integral power supply.
• Suitable for operation on 240V,50Hz single phase ac supply.
Product Benefits
• Attractive high quality housing.
• Environmental friendly.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Corporate Offices,Malls,Restaurants,Receptions,Corridors,Commercial & Business Centers,Residential lighting, etc.
Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 9016 Traffic White
Product Description
• Luminaire made of extruded aluminium for better thermal management.
• polycarbonate diffuser for optimum optical performance.
• Vaccum metalized chrome finish secondary reflector
• Suitable for suspended mounting.
• Supplied with standard suspension kit (1metre).
• Cable entries for through-wiring of mains supply cable
• Integral power supply.
• Suitable for operation on 240V,50Hz single phase ac supply.
Product Benefits
• Attractive high quality housing.
• Environmental friendly.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Corporate Offices,Malls,Restaurants,Receptions,Corridors,Commercial & Business Centers,Residential lighting, etc.
Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 9016 Traffic White
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

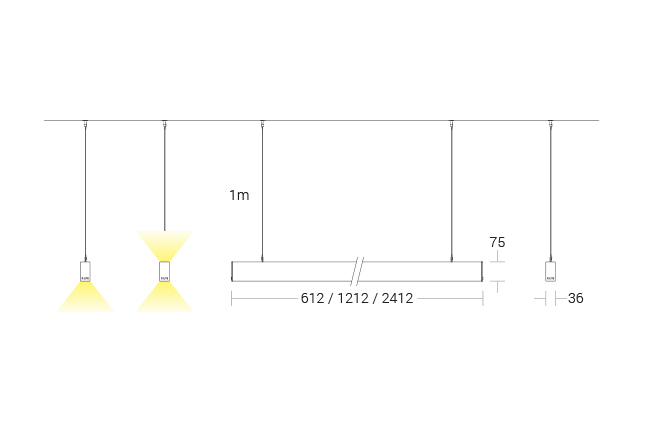

| 23469 | Dimension : 612 x 36 x 75, 1212 x 36 x 75, 2412 x 36 x 75 Wattage : Upto 20W, Upto 20W & 8W, Upto 40W, Upto 40W & 15W, Upto 80W, Upto 80W & 30W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 Optics : 12°, 20°, 34°, 48°, 60° Accessories : 1m Suspension Kit, Clamp, 2m Suspension Kit ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White LuminaireOption : Direct, Direct & Indirect Mounting : Pendant Mounting, Surface Mounting Diffuser : Metallized Chrome, Metallized Chrome & Opal Controls : Switchable | 23469.pdf |
Configuration Options
