In-Ground Luminaires
MICROLED / MINILED are compact IP67 LED fittings suitable for down light, Wall recessed and walkover for both indoor & outdoor applications. Small dimension with flush mounting installation. It is equipped with a screwless round front ring in STAINLESS STEEL with Narrow Beam / Asymmetric Beam / Medium Beam & Diffused Beam. These fixtures are perfect for creating very defined effects of accent light. On request, these luminaires are also available in Red, Green, Blue and Amber.

Product Description
• Luminaire body and screwless front ring made from solid billet of 316 grade stainless steel.
• Silicone seal gasket ensures IP67 rating.

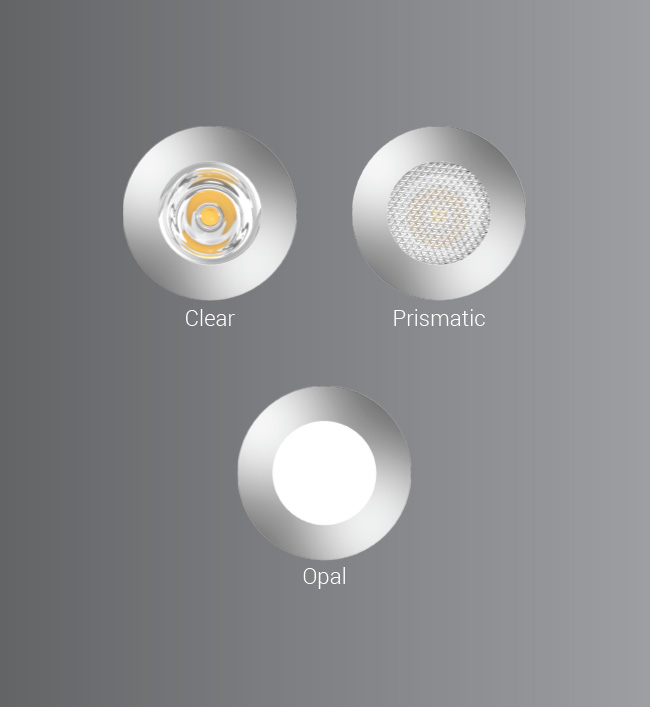

• Toughened clear glass diffuser 4mm thickness.
• Clear polycarbonate optical lens.
• Luminaire hard wired with 2 x 0.5mm2 cable of 0.5 metre length.
• Supplied with mounting sleeve for preparing recessed opening in ground or wall.
• Non integral constant current power supply.
• Ordering guide: KL-4085-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K.
• Options : Red / Green / Blue / Amber ( On Request ).

Product Benefits
• High luminous efficiency at reduced wattage.
• Compact luminaire provides distinctive lighting effects for wall architecture & accent lighting.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

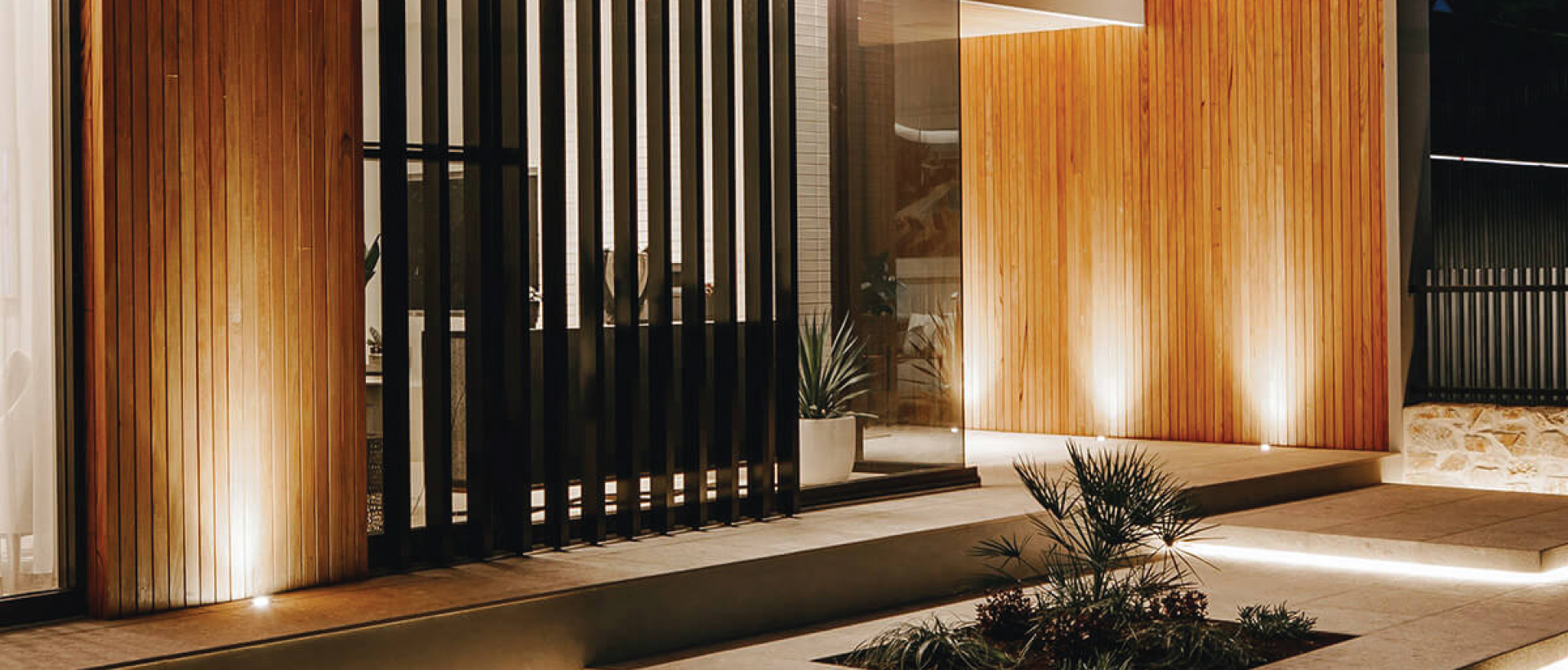

Walk ways, Facades, Landscapes, Architectural facade elements.

Accessory
• Supplied with IP67 rated connector for a secure connection to the network.
• ABS Plastic outer costing for easy installation.
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-82421W (3-5)V, 300mAKL-8242.txt
KL-82433-5W (8-12)V, 300mAKL-8243.txt
KL-82444-8W (12-24)V, 300mAKL-8244.txt
KL-82458-12W (24-42)V, 300mAKL-8245.txt
KL-82463W (3-5)V, 600mAKL-8246.txt
KL-82479-18W (9-25)V, 900mAKL-8247.txt
KL-824821-30W (20-36)V, 900mAKL-8248.txt

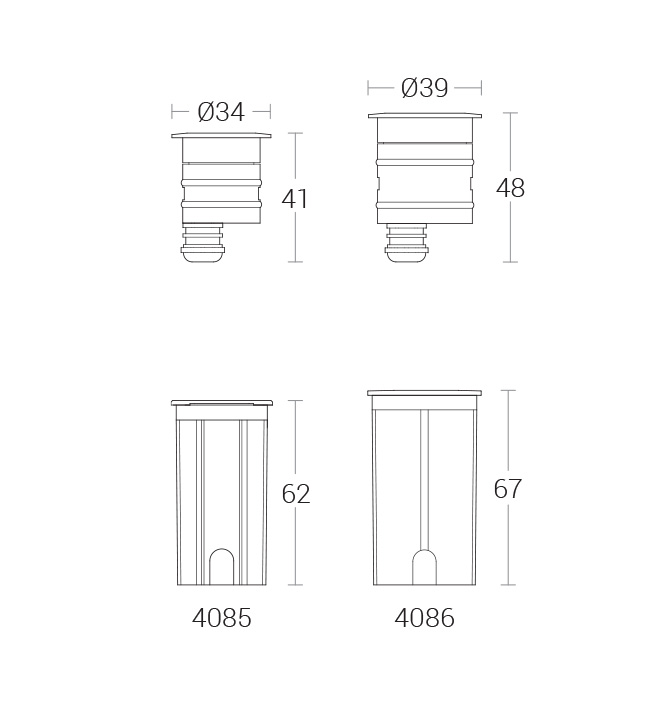

KL-40851W LED WW,NW,CW BA:40°, Toughened Clear GlassØ34 x 62 mmKL-4085.IESKL-4085.PDF4085.pdf
KL-4085.txt
KL-40863W LED WW,NW,CW BA:24°,8°,12°,40°,60°,40°x11°, Toughened Clear GlassØ39 x 67mmKL-4086-BA8°-WW.IES
KL-4086-BA12°-WW.IES
KL-4086-BA24°-WW.IES
KL-4086-BA8°-WW.PDF
KL-4086-BA12°-WW.PDF
KL-4086-BA24°-WW.PDF
4086.pdf
KL-4086.txt
