Zucchini

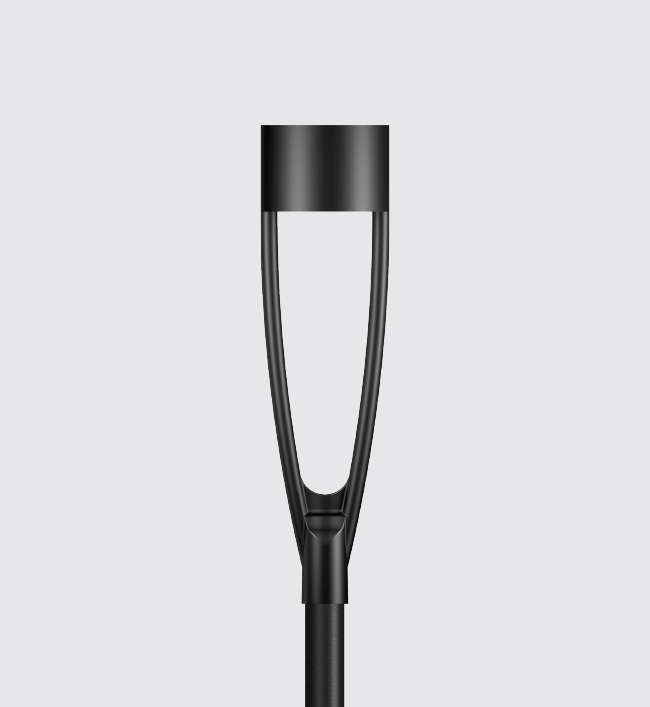

A modern heritage post top luminaire upgraded with high performance light engines. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Designed for highest efficiency in terms of more lumens at reduced wattages. Product offered in symmetrical & asymmetrical light distribution.

Product Description
• Luminaire body made of die-cast aluminium with non corrosive SS fasteners.
• Clear toughened glass diffuser.
• Luminaire integrated with 30W LED.
• Luminaires suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4849-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

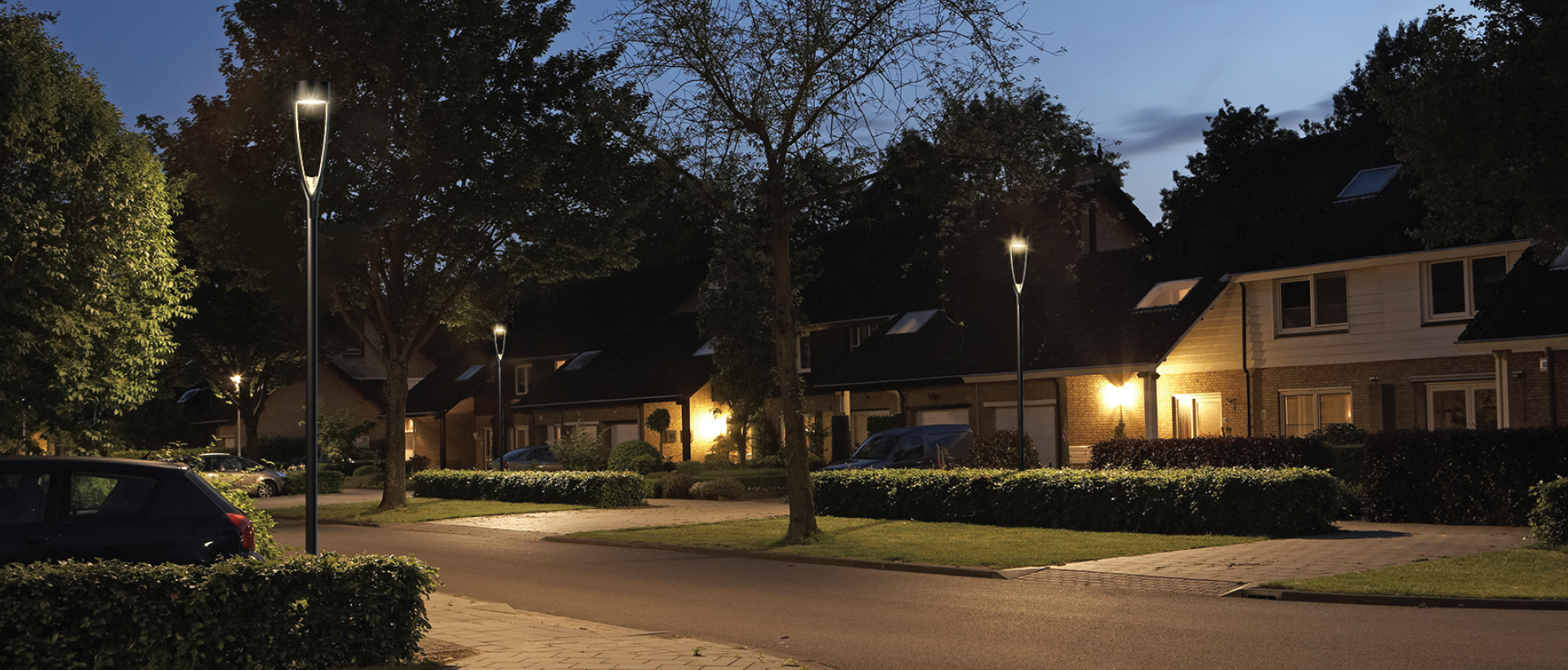

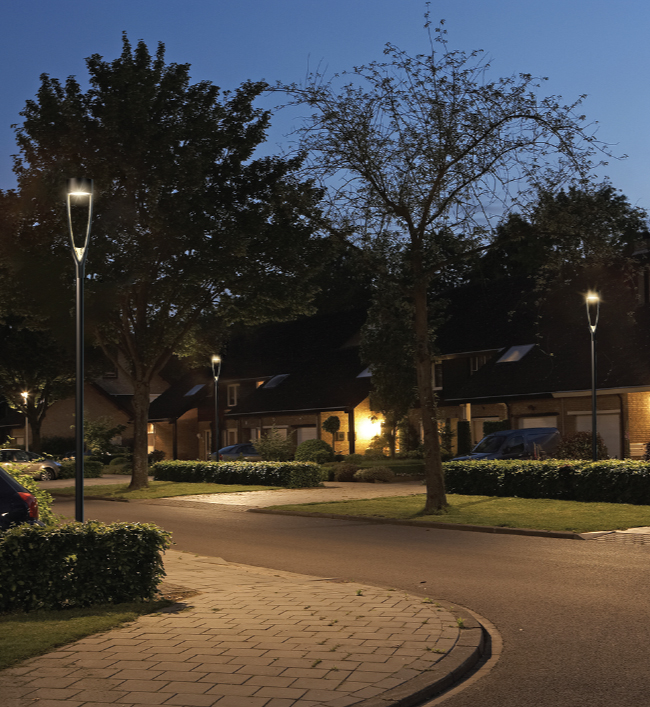

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-484930W LED WW,CW,NW BA:60°, Clear Toughened GlassØ166 x 605mmD14849.pdf
KL-491630W LED WW,CW,NW BA:Type IV, Clear Toughened GlassØ166 x 605mmD1KL-4916-BATYPEII-WW.IES
KL-4916-BATYPEII-CW.IES
KL-4916-BATYPEII-NW.IES
KL-4916-BATYPEII-WW.PDF
KL-4916-BATYPEII-CW.PDF
KL-4916-BATYPEII-NW.PDF
4916.pdf
