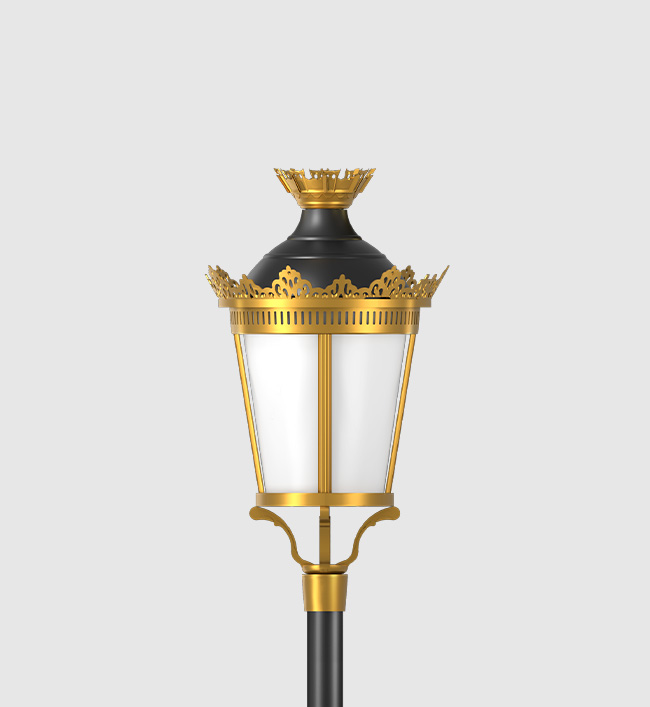

Magudam Midi
A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,
maintaining initial performances through the lifetime of the installation.
Designed for highest efficiency in terms of more lumens at reduced wattages.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover.
• Pressure diecast aluminium magudam attachment added for aesthetics.
• Non-yellowing UV stabilised translucent acrylic diffuser.
• The lamp along with driver is housed inside the top portion and the bottom portion attached to a mounting base.
• Luminaire integrated with 30W LED.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4932-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Functionality.
• Environmental Friendly.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

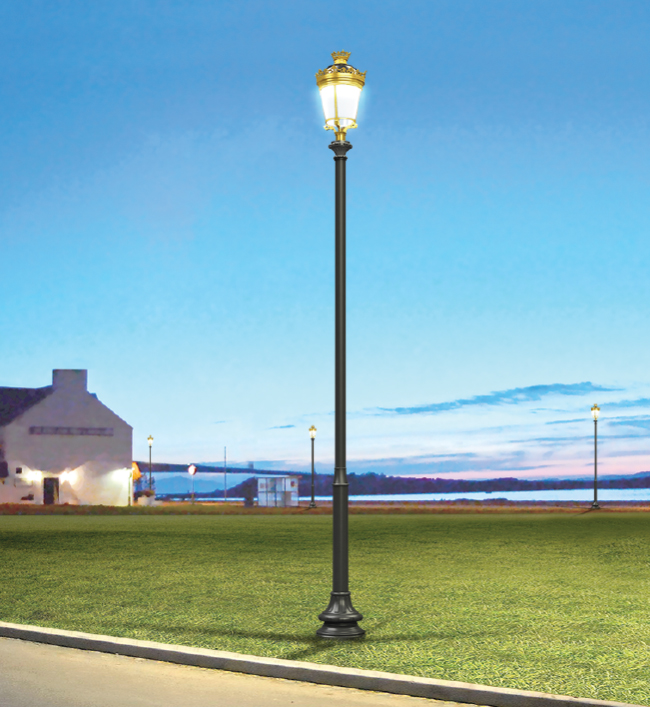

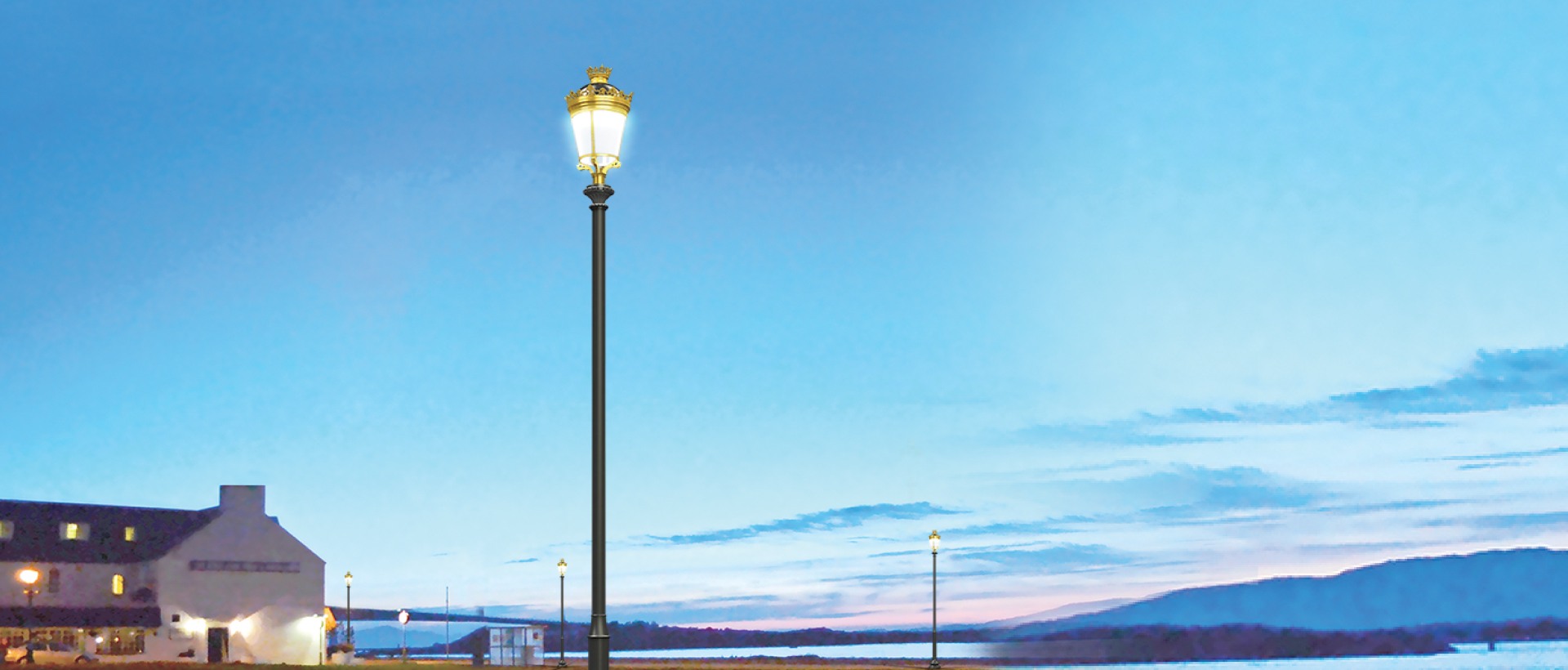

Illuminating parks,Gardens,commercial complex,Pathways in residential buildings,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey & Gold
• Anthracite grey & Gold
• Jet black & Gold.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

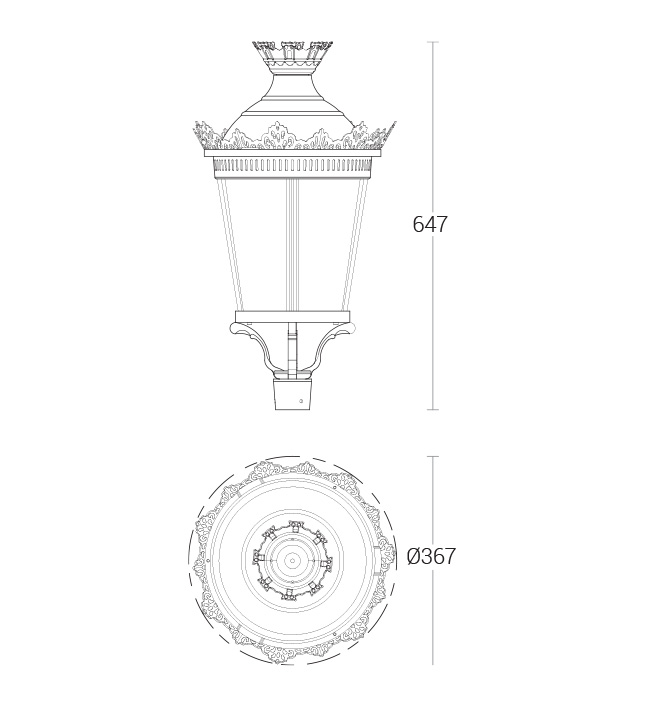

KL-4920E27 Holder (Max. 30W LED / 45W CFLE), Translucent AcrylicØ367 x 647mmD1
4920.pdf
KL-493230W LED 2700K,3000K,4000K,5700K, Translucent AcrylicØ367 x 647mmD1
KL-4932-BA--3000K.IES
KL-4932-BA--3000K.PDF
4932.pdf
KL-4932.txt
