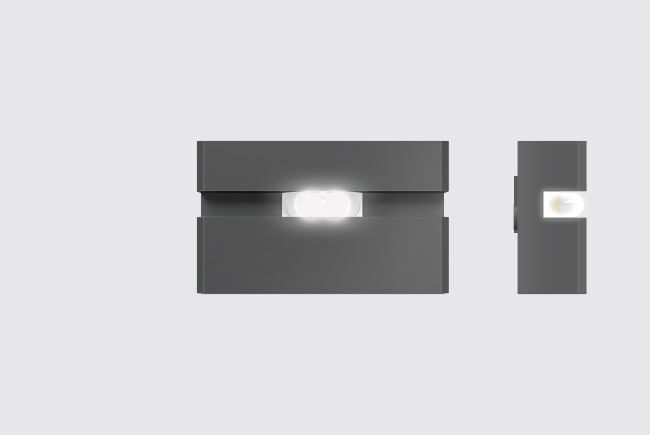

Sill
The Sill light fixture provides uniform illumination along the outer ledge of windows, creating stunning lighting effects. Its die-cast aluminum housing ensures excellent thermal management, enhancing its durability and performance. Versatile in design, this fixture is perfect for a wide range of indoor and outdoor lighting applications, making it an excellent choice for any environment.

Product Description
• Luminaire made of pressure die-cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• High efficiency polycarbonate optical lens, effectively improves transmission of light.
• Clear silicone gasket for leakproof structure design to ensure the high level of IP rating.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3078-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Areas of Application

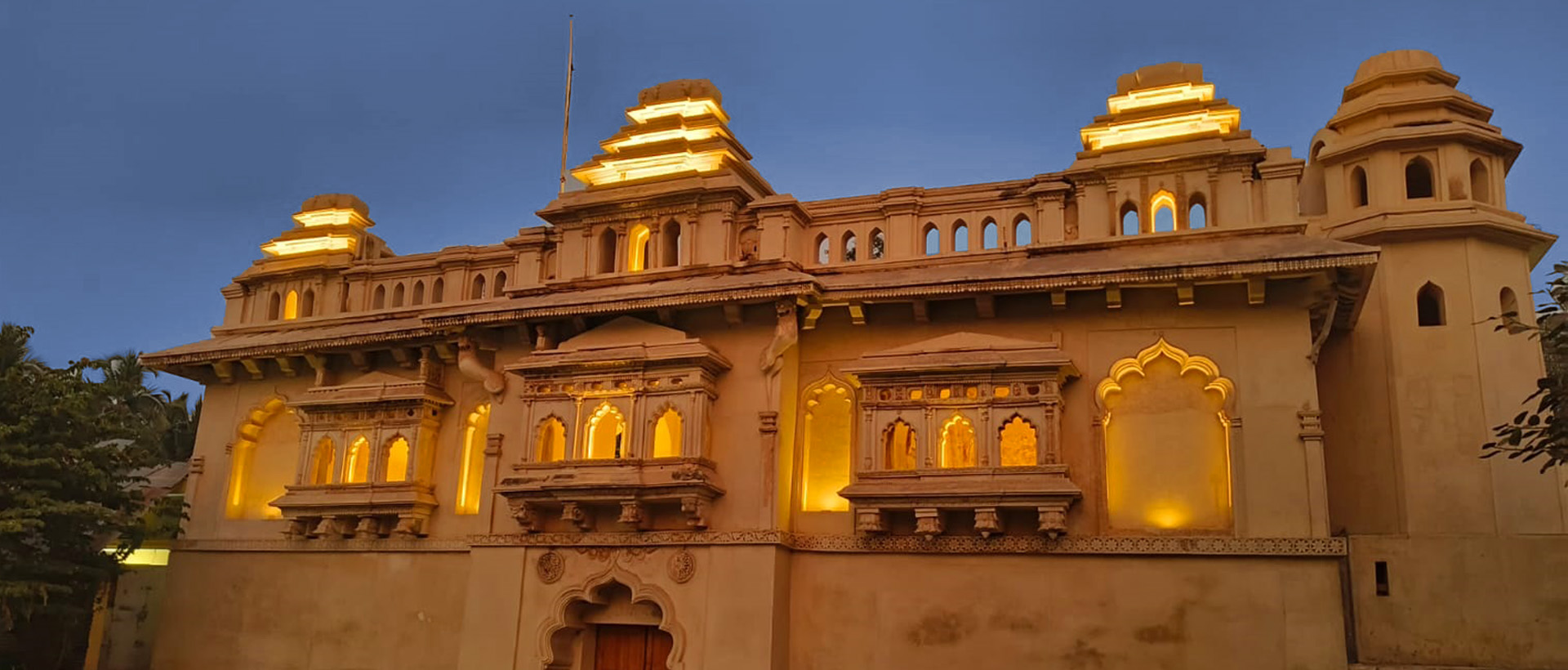

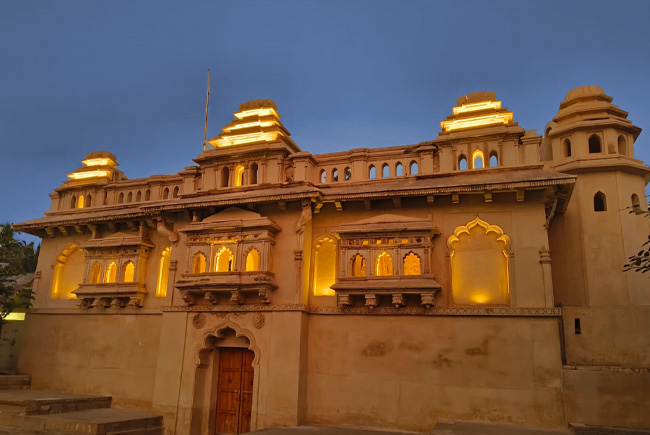

Window frames, historical and artistic facades, Widely used in subways, Interior decoration, Outdoor facade lighting.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-30786W LED 2700K,3000K,4000K,5700K BA:Blade Effect (180°), Clear Polycarbonate Lens150 x 90 x 43mmKL-3078-BAASY-WW.IES
