Cubus

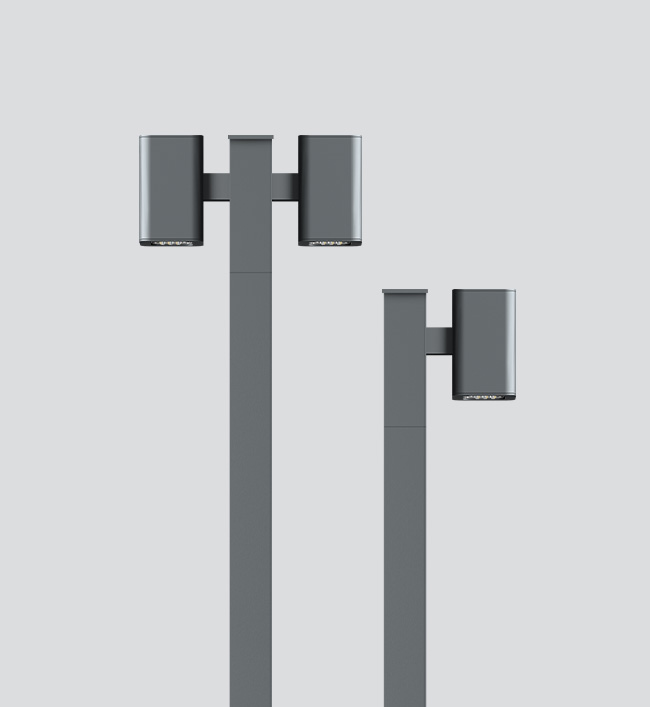

“Cubus” pathway luminaire,is an innovative design options to provide visual integration with the environment.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered asymmetrical light distribution.

Product Description
• Luminaire made of extruded aluminium square tube (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W,60W LED.
• Silicone gasket.
• Suitable for mounting on 76mm / 88.9mm OD pipe, 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : <80
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-4437-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

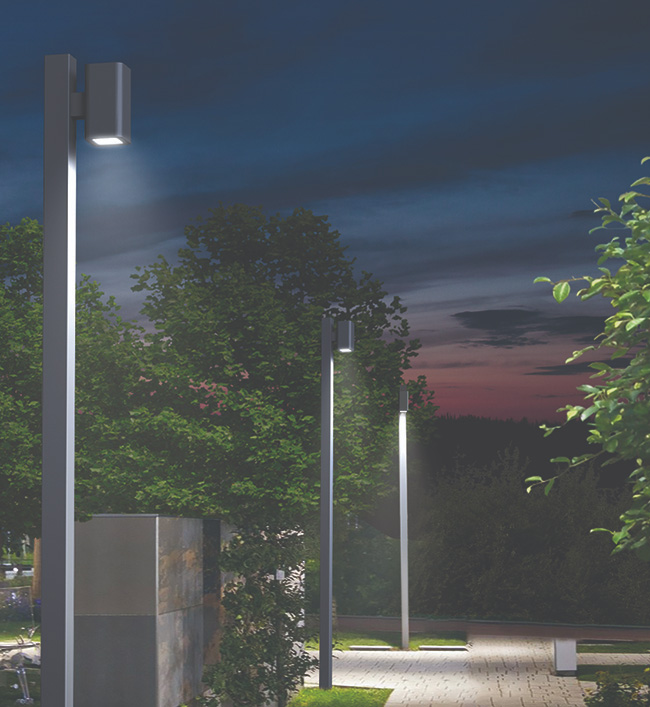

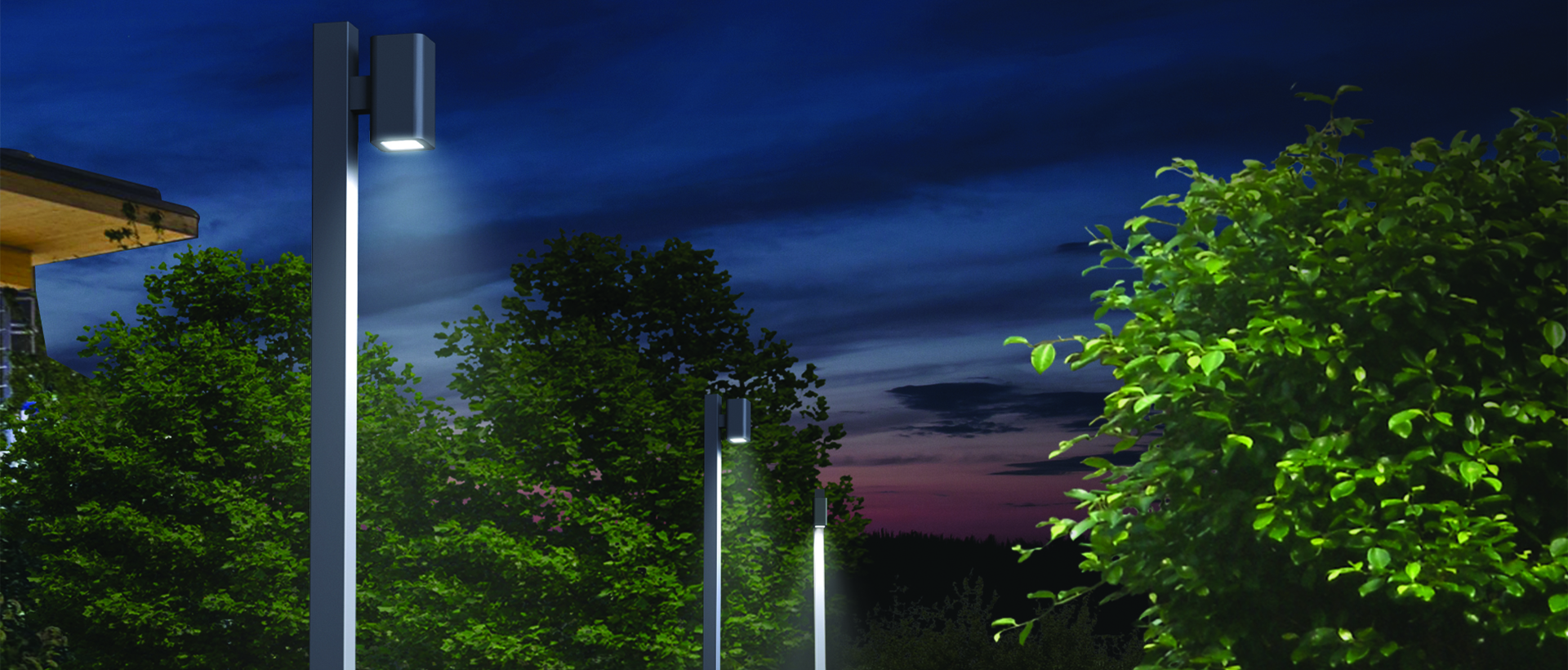

Illuminating parks,Gardens,Private driveways,Commercial complex,Pathways in Residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page

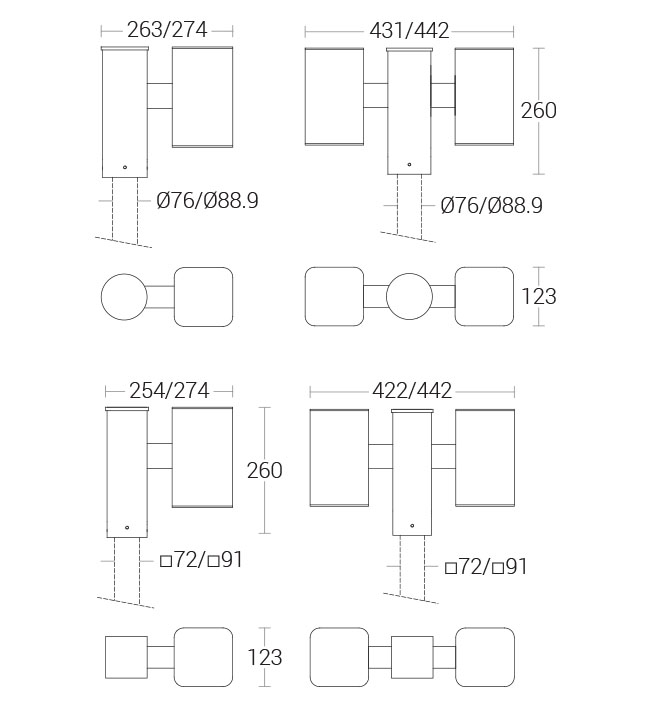

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-443630W LED WW,NW,CW, Polycarbonate Optical LensD3:254x121x260,D26:266x121x260,D15:251x121x260,D16:271x121x260mm4436.pdf
KL-4436.txt
KL-443760W LED WW,NW,CW, Polycarbonate Optical LensD3:419x121x260,D26:431x121x260,D15:422x121x260,D16:442x121x260mm4437.pdf
KL-4437.txt
