Mexican Maya Bollard - Pyro Top
These environmentally friendly LED garden and pathway luminaires,create a pleasant light distribution with a high degree of visual comfort.These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture.Clean Lines and pure form are the underlying elements of this series of LED bollards,designed to provide radially symmetric light emission of 360°.

Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• For optimum coordination with lighting situation,these luminaries can be supplied in three different heights.
• Non yellowing UV stabilized translucent polycarbonate diffuser.
• Silicone gasket.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4680-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for Residential & Public areas for Illuminating Driveways,Pathways,Flowerbeds,Entrances,Squares,Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

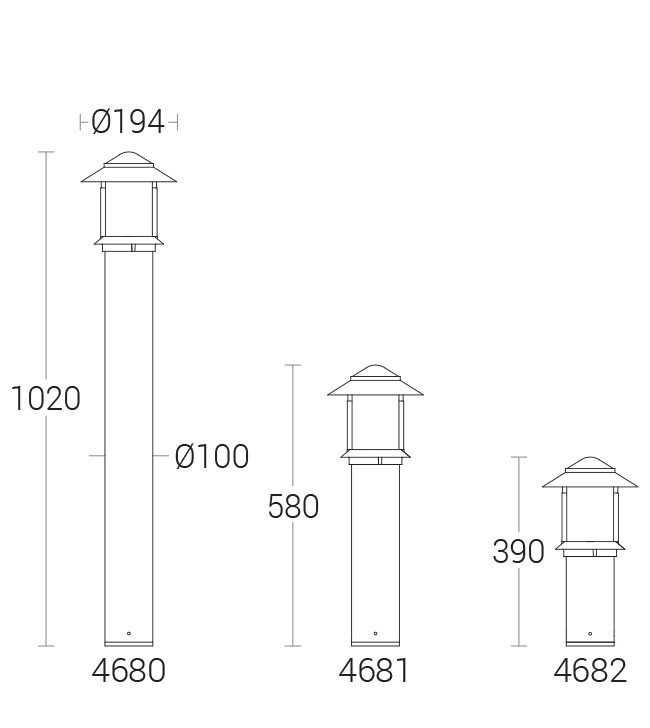

KL-46808W LED 2700K,4000K,5700K, Translucent PolycarbonateØ194 x 1000mmM2
Detailed Foundation Drawing
4680.pdf
KL-46828W LED 2700K,4000K,5700K, Translucent PolycarbonateØ194 x 325mmM2
Detailed Foundation Drawing
4682.pdf
KL-46818W LED 2700K,4000K,5700K, Translucent PolycarbonateØ194 x 475mmM2
Detailed Foundation Drawing
4681.pdf
