Juno
Elegant column lighting feature, which is suitable for both modern and classic architecture.Ideal for creating orientation with exceptional visual comfort.
These luminaries offer general ambient light in open spaces giving a sense of security in night-time.
Clean Lines and pure form are the underlying elements in this series of column light,designed to provide rotationally symmetrical illumination, Light emission 360°.

Product Description
• Luminaire body made of spun aluminium with extruded aluminium alloy (grade 6063) and non corrosive SS fasteners.
• Shielded light.
• Non yellowing UV stabilized translucent acrylic diffuser.
• Silicone gasket.
• Die cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 ( 90 CRI - On Request ).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7034-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• Practical.Elegant.Efficient.
• Timeless modern design options.
• Easy to maintain,robust and durable construction.
• Soft diffused lighting protects pedestrians from glare and provides distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for Private & Public areas,Illuminating Driveways,Pathways,Building surrounds,Entrances,Squares & Gardens,Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

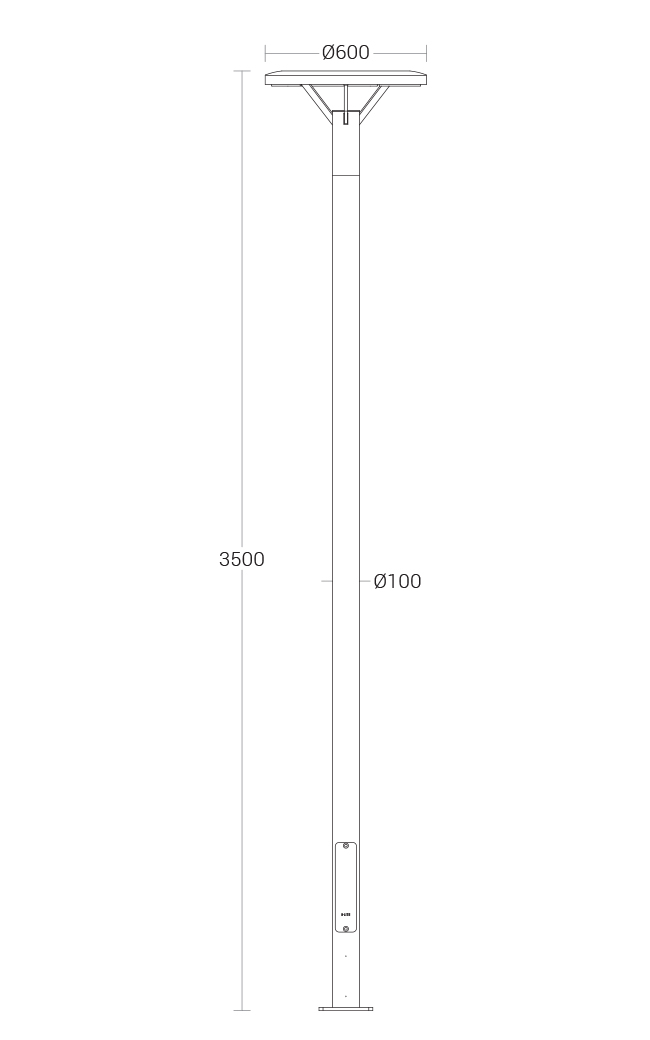

KL-703460W LED 2700K,3000K,4000K,5700K BA:120°, Translucent AcrylicØ600 x 3500mmM15
Detailed Foundation Drawing
KL-7034.IES
KL-7034.IES
KL-7034.PDF
KL-7034.PDF
7034.pdf
