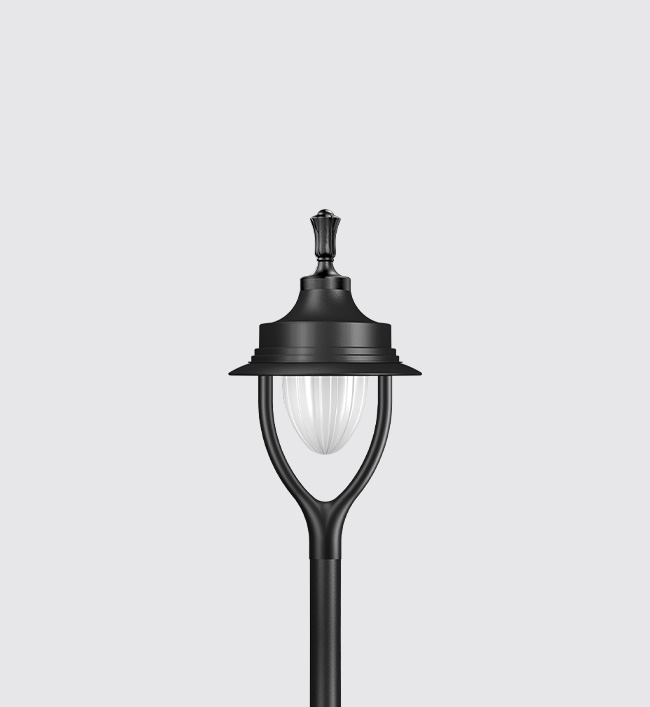

Ring Fort Arc Micro
A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered in symmetrical light distribution.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover,gravity die cast aluminium supporting arms with mounting base.
• Non yellowing UV stabilised V translucent acrylic.
• Luminaire integrated with 30W LED.

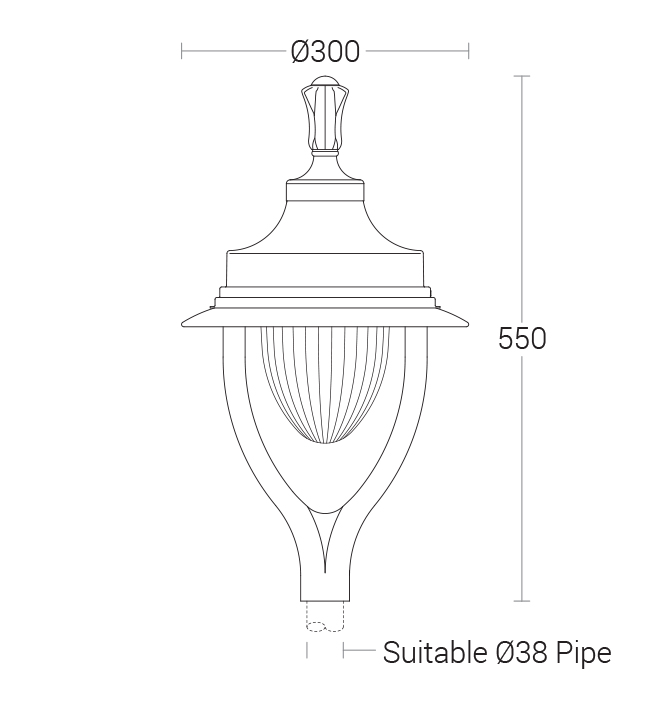

• Suitable for mounting on 38mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4978-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

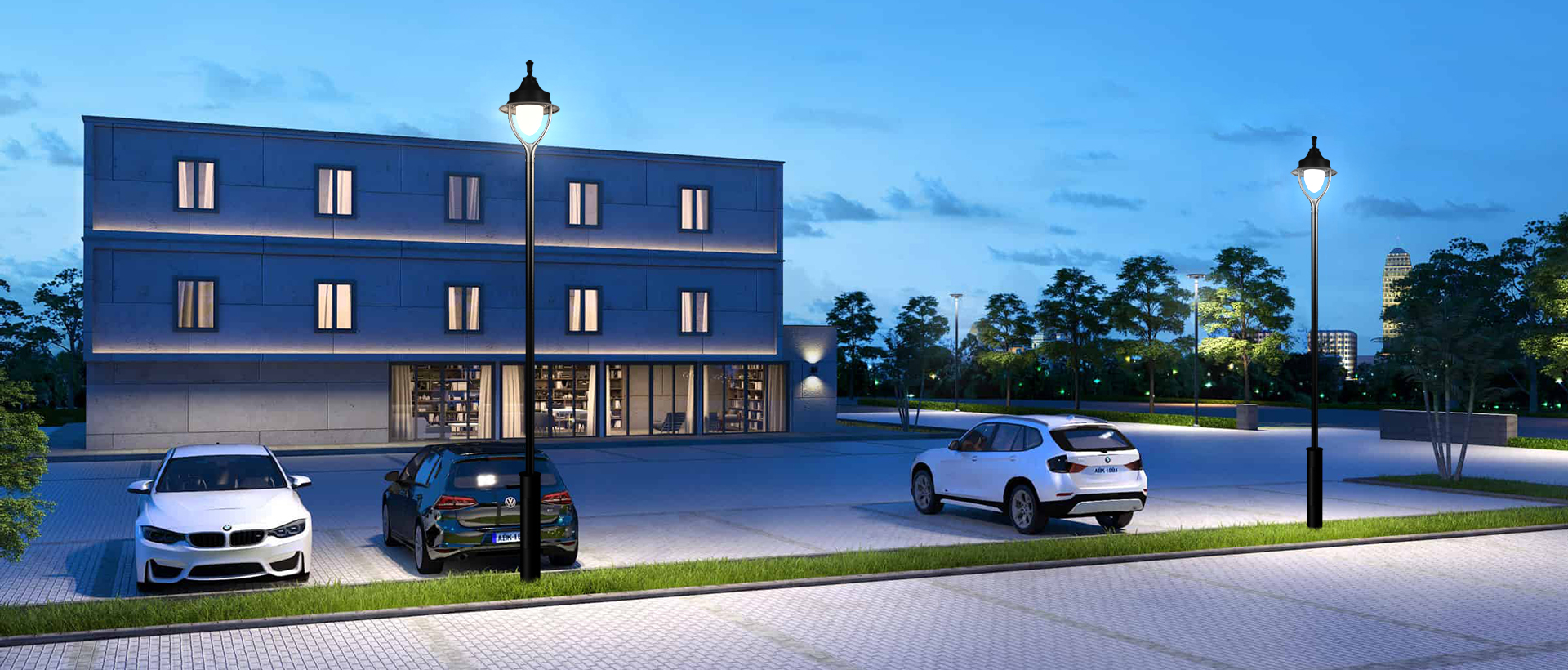

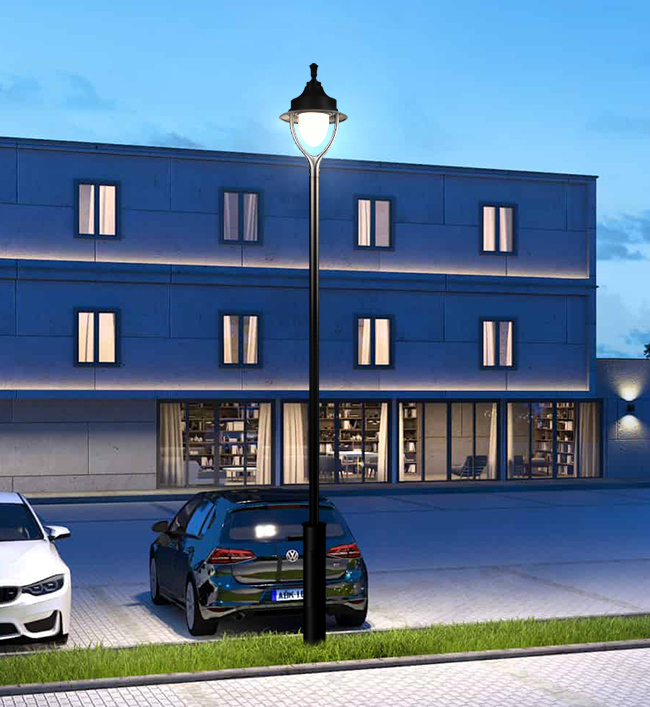

Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-497830W LED 2700K,3000K,4000K,5700K, A8 - Translucent Acrylic, A10 - Translucent AcrylicØ300 x 550mmD6
4978.pdf
KL-5189E27 Holder, A8 - Translucent Acrylic, A9 - Clear AcrylicØ300 x 550mmD6
5189.pdf
