Angle Dixon

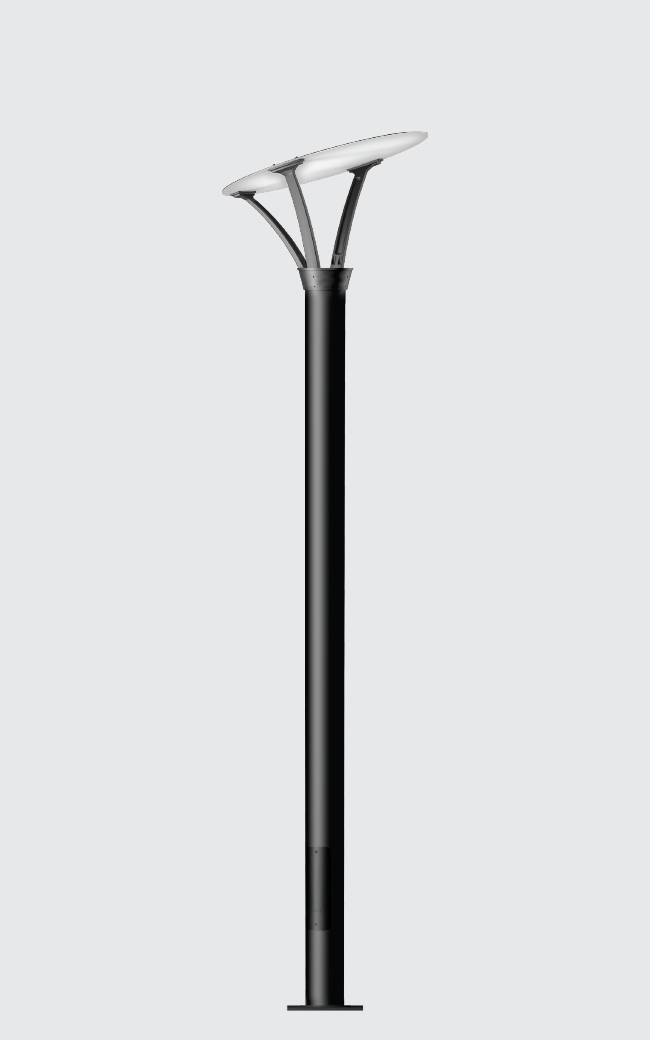

Elegant column lighting feature,which is suitable for both modern and classic architecture.Ideal for creating orientation with exceptional visual comfort.
These luminaries offer general ambient light in open spaces giving a sense of security in night-time.
Clean Lines and pure form are the underlying elements in this series of column light,designed to provide asymmetrical light distribution providing indirect lighting.

Technical Specifications
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• For optimum illumination,these luminaries can be supplied in different heights.
• Reflector system made of aluminium sheet (powder coated white for high reflection).
• Clear toughened glass.
• Clear silicone gasket.
• Die cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7030-CCT (Colour Temperature).
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• Practical.Elegant.Efficient.
• Timeless modern design options.
• Easy to maintain, robust and durable construction.
• Soft diffused lighting protects pedestrians from glare and provides distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

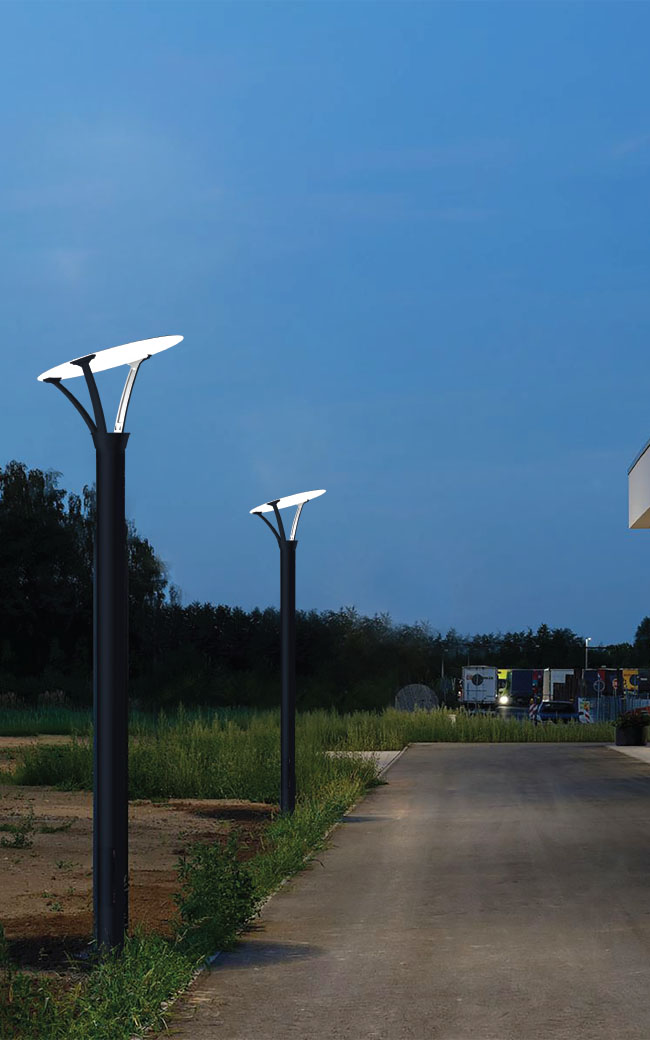

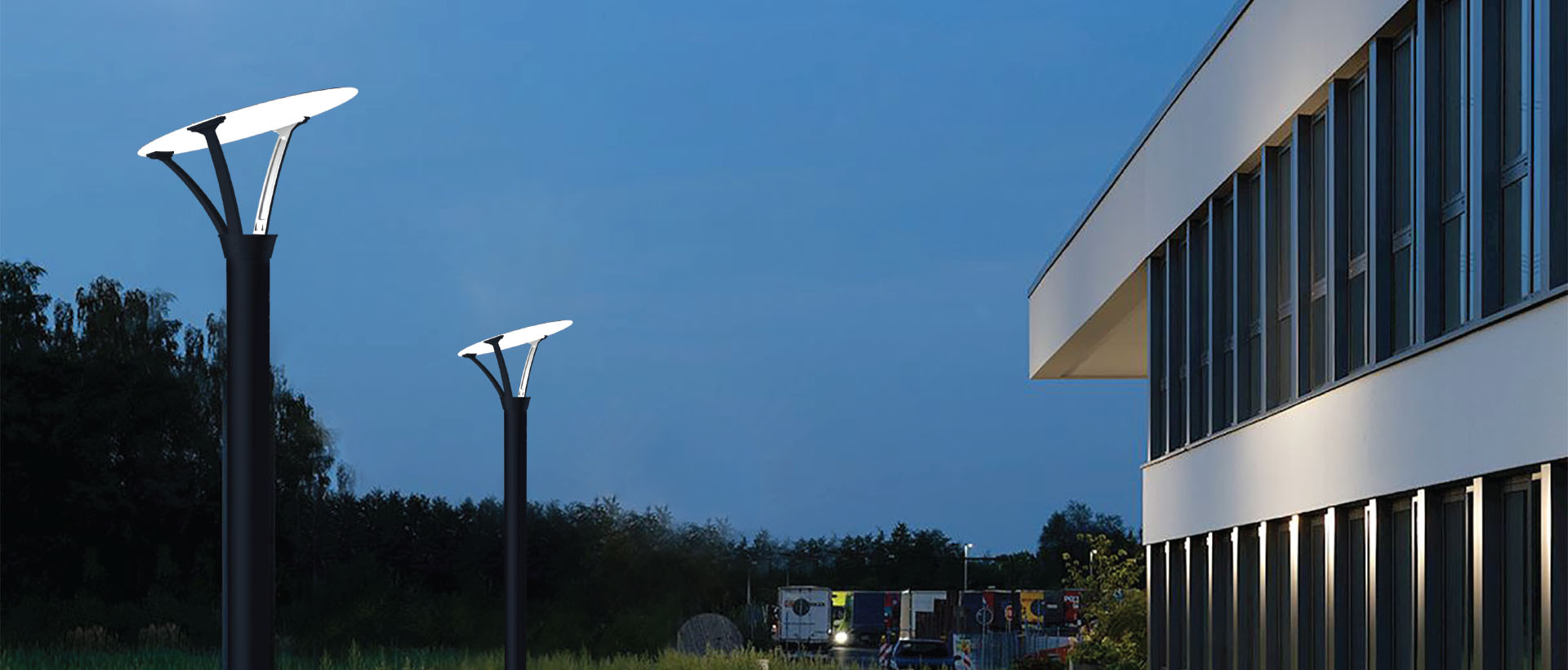

Suitable for Private & Public areas,Illuminating Driveways,Pathways,Building surrounds,Entrances,Squares & Gardens,Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

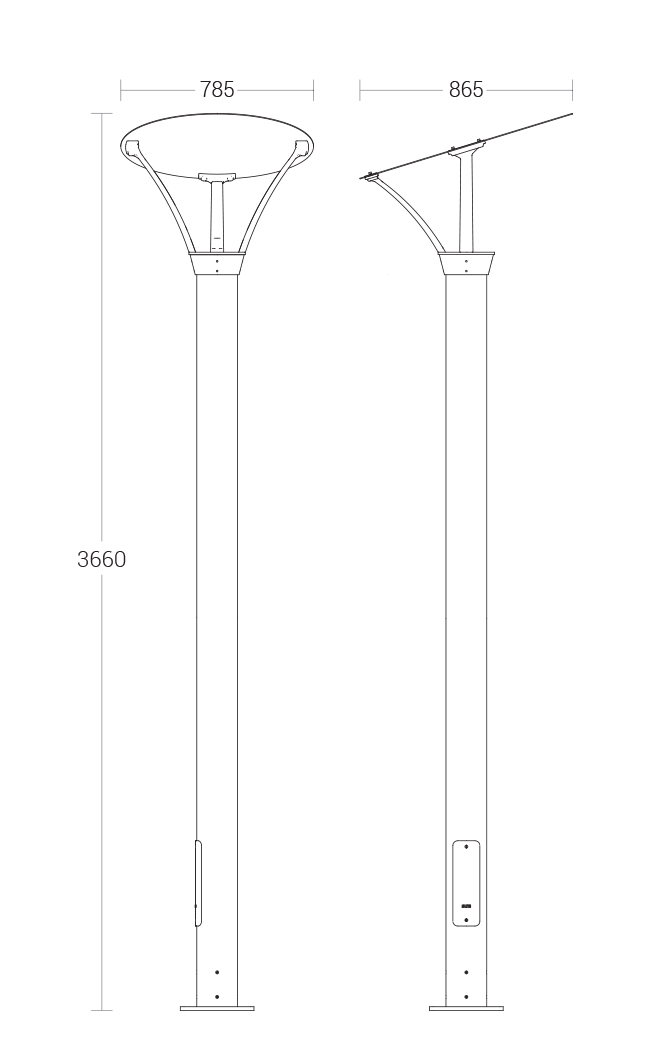

KL-703050W LED 2700K,3000K,4000K,5700K, Clear Toughened Glass865 x 785 x 3660mmM11
Detailed Foundation Drawing
7030.pdf
