Seagull Mega
“Seagull Mega” Street Light Cut off lantern, integral model, side entry type. High Brightness, LED Light source do not pose any environment risks. Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World. Long life span with very low maintenance.

Product Description
• Luminaire body and top cover made of pressure die cast aluminium featuring high strength and anti corrosion.
• Clear polycarbonate optical cover.
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Integrated with 150W LED module.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single
phase ac supply.
• Ordering guide : KL-4158-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Street Lighting, Smaller Roadways, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Traffic grey
• Black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

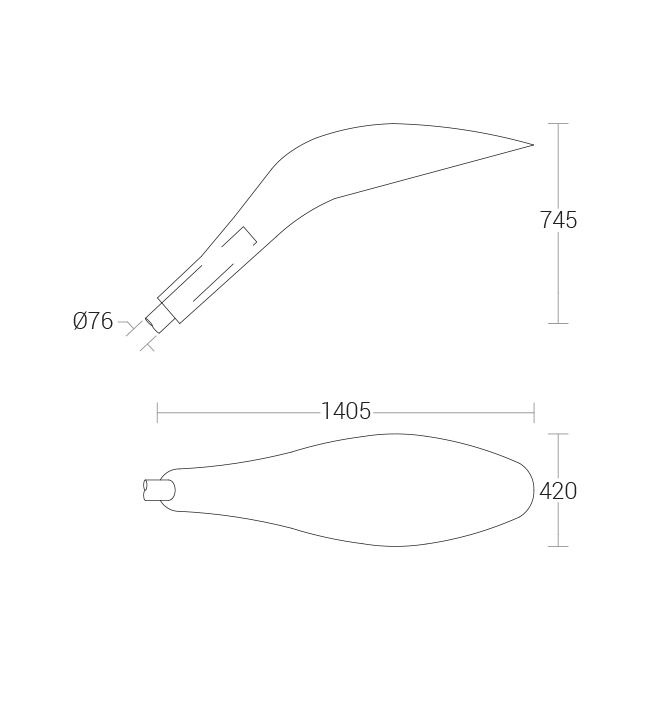

KL-4158150W LED 3000K,4000K,5700K BA:Type III, Clear Polycarbonate Optical Cover1405 x 420 x 745mmD3
4158.pdf
