Nimba Mini

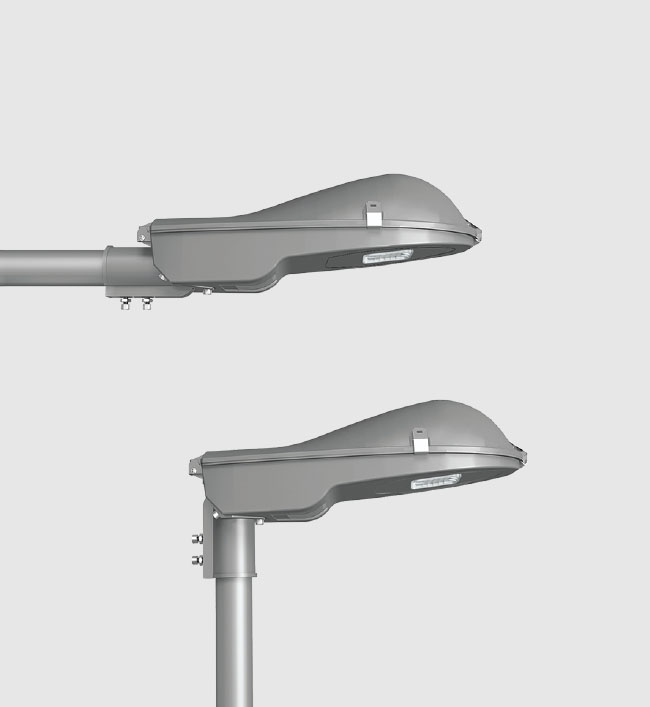

Nimba Mini Street Light Cut off lantern, integral model, horizontal and vertical mounting. Improved long lasting protection against ingress of dust / insects inside optical compartment with top opening facility for maintenance.

Product Description
• Luminaire body and top cover made of pressure die cast aluminium featuring high strength and anti corrosion.
• Integrated with 30W / 50W LED module.
• Polycarbonate optical lens
• Suitable for Mounting on 50mm OD pipe
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-5150-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

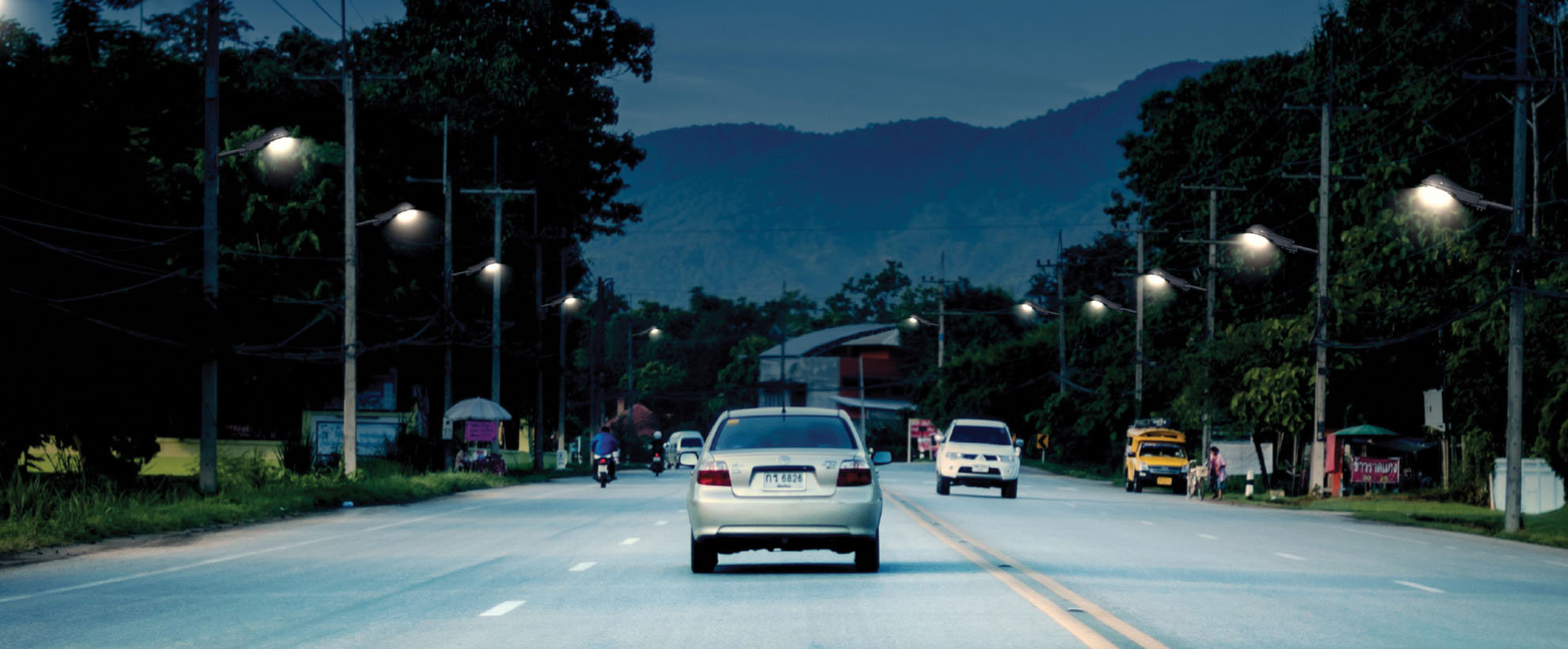

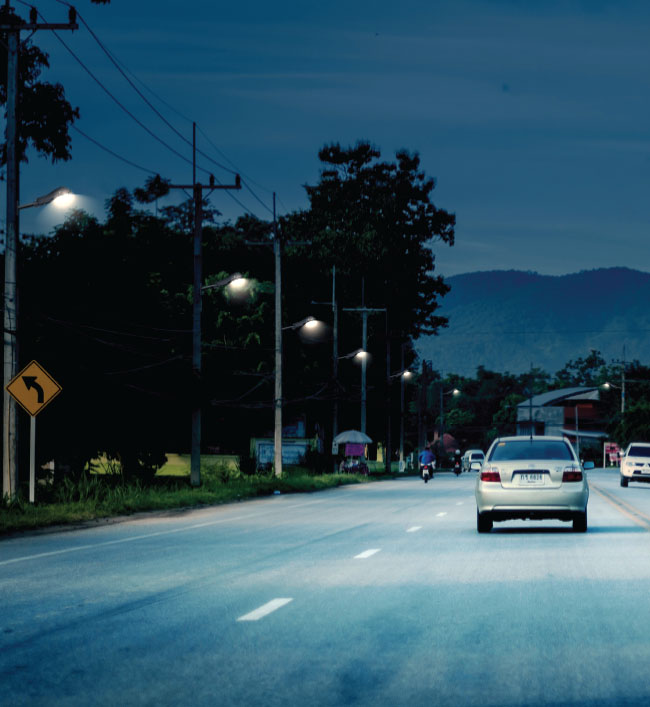

Illuminating parks, Gardens, commercial complex, streets & office complex.

Available Finish
Pure polyester powder coated
• Traffic grey
• Black

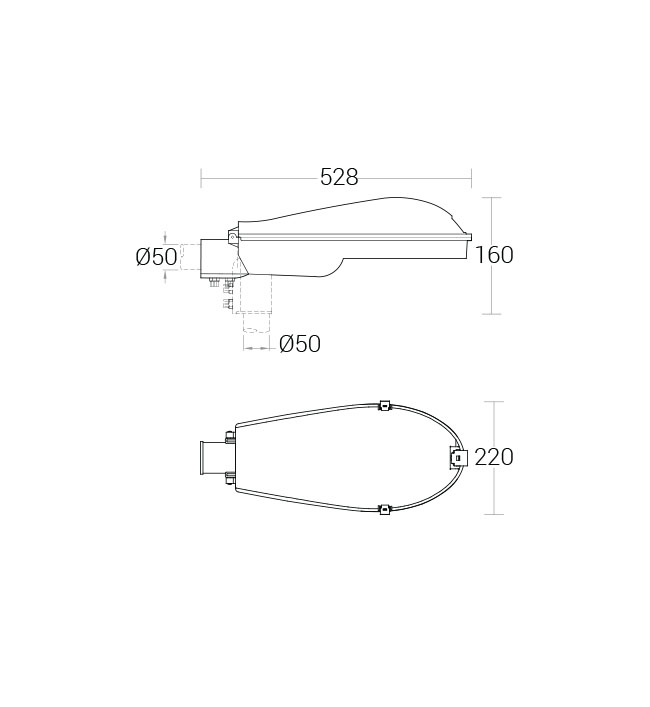

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-430450W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens528 x 220 x 160mmD1
4304.pdf
KL-51501 x 30W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens528 x 220 x 160mmD1
KL-5150-BATYPEII-WW.IES
KL-5150-BATYPEII-CW.IES
KL-5150-BATYPEII-NW.IES
KL-5150-BATYPEII-WW.PDF
KL-5150-BATYPEII-CW.PDF
KL-5150-BATYPEII-NW.PDF
5150.pdf
