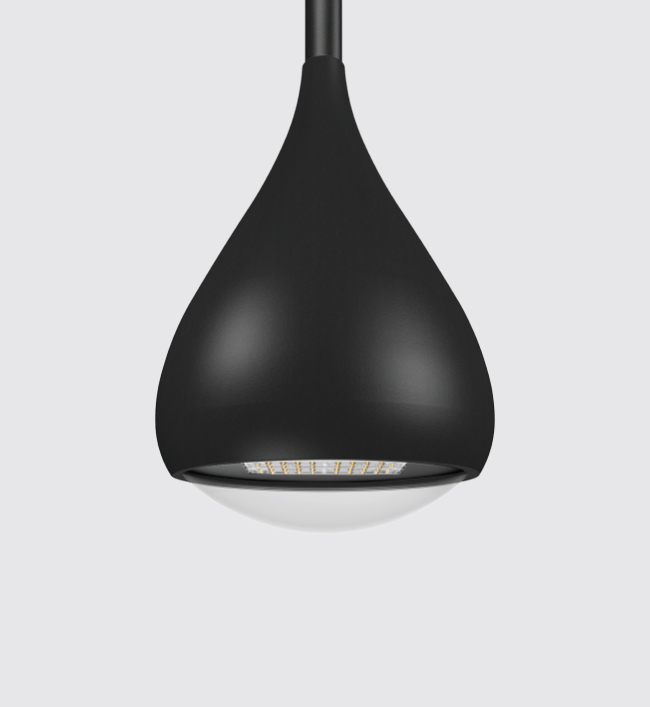

Street light is a special purpose outdoor luminaire, integral model, totally weather proof aesthetically contoured. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment.

Product Description
• Housing made of die cast aluminium featuring high strength and anti corrosion.
• Convex type clear toughened glass diffuser.
• Luminaire integrated with 100W / 150W LED.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4941-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Functionally versatile, strong and stable.
• Environmental friendly, moisture proof, insect free.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.

Area of Application

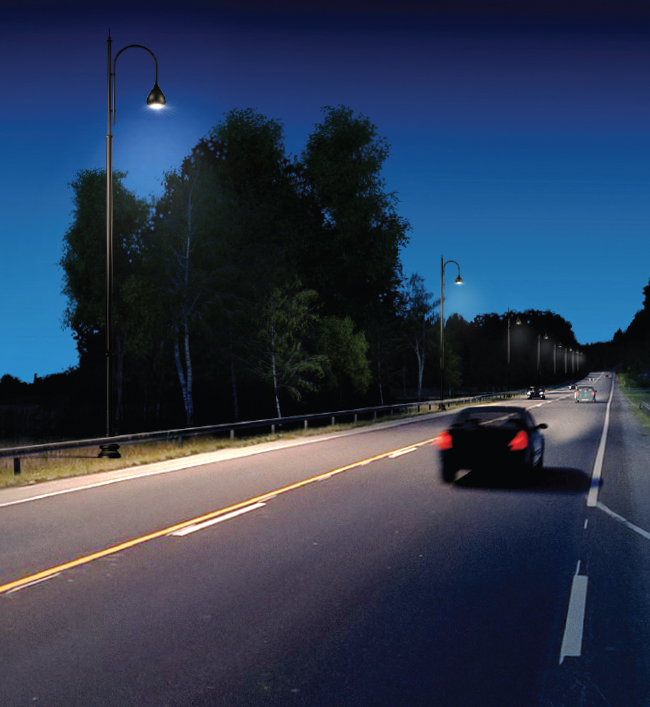

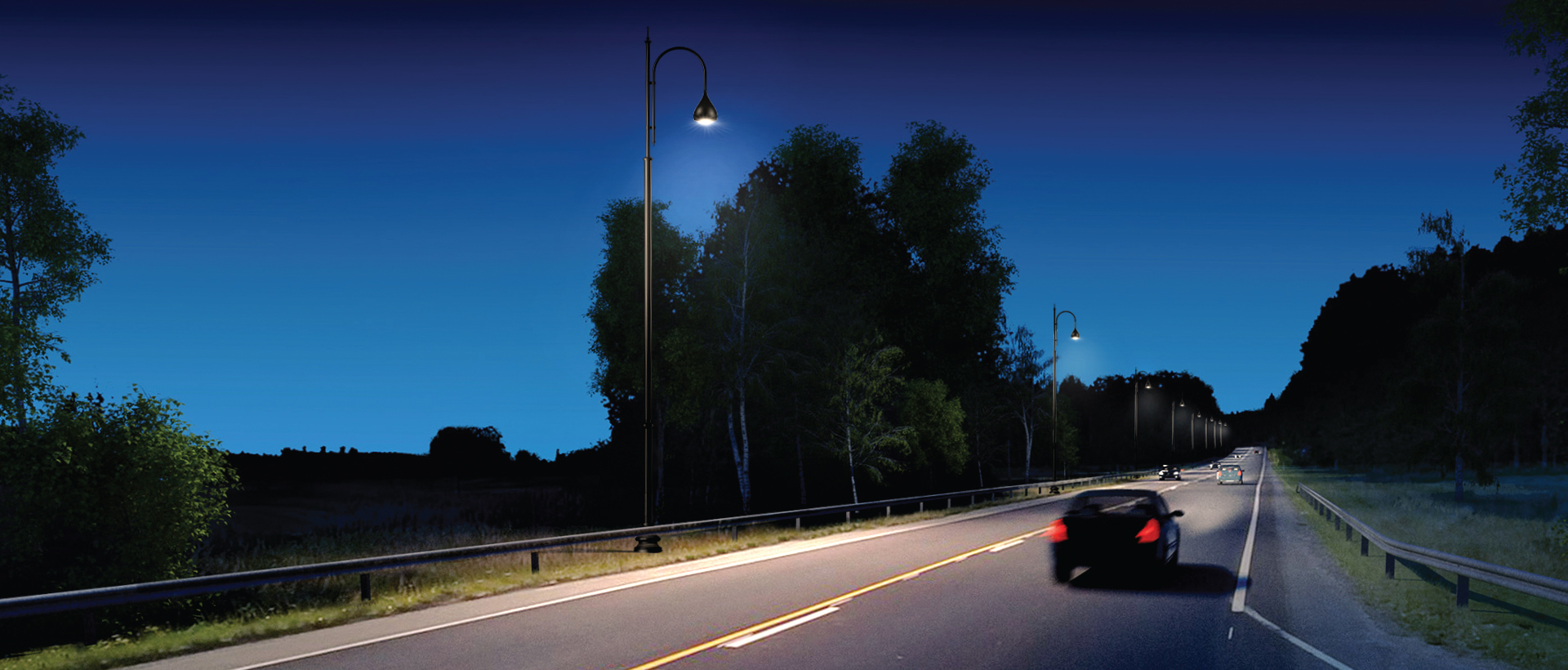

Street Lighting, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

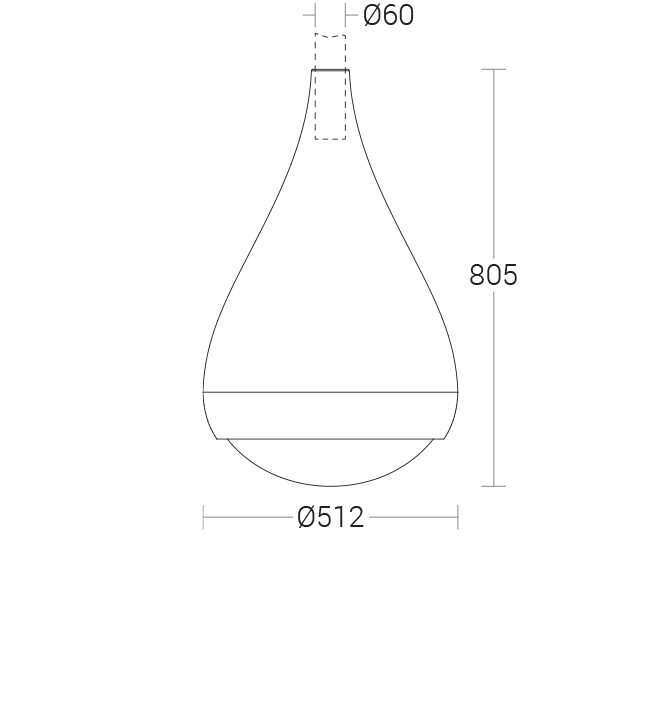

KL-4622150W LED WW,CW,NW BA:Type IV, Clear Toughened GlassØ512 x 805mmD24622.pdf
KL-4941100W LED WW,CW,NW BA:Type IV, Clear Toughened GlassØ512 x 805mmD24941.pdf
