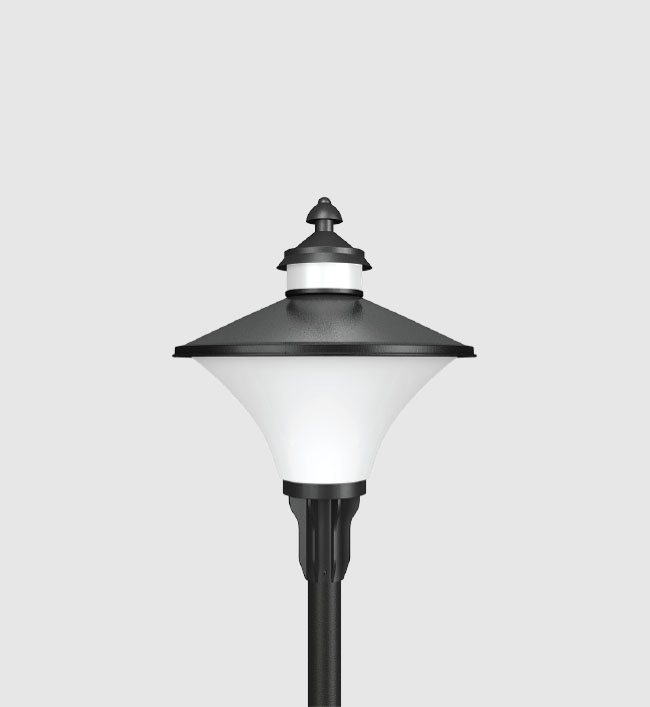

Light House Midi
An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with symmetrical light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover with circular capping spacer and ventilating knob.
• Lamp compartment encased in non-yellowing translucent UV stabilised acrylic diffuser.
• Luminaire integrated with 27W LED.
• EPDM rubber gasket.
• Turn type polycarbonate locking system for easy maintenance.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4983-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Functionality
• Environmental Friendly
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

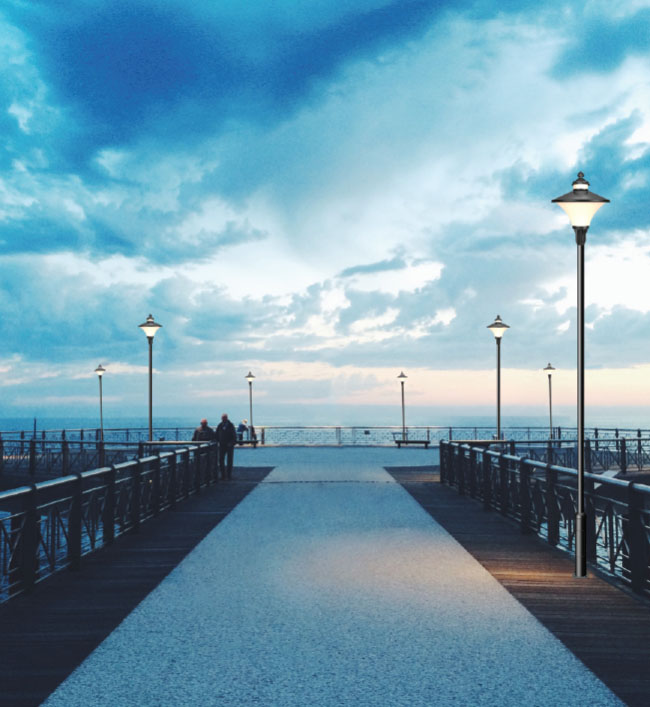

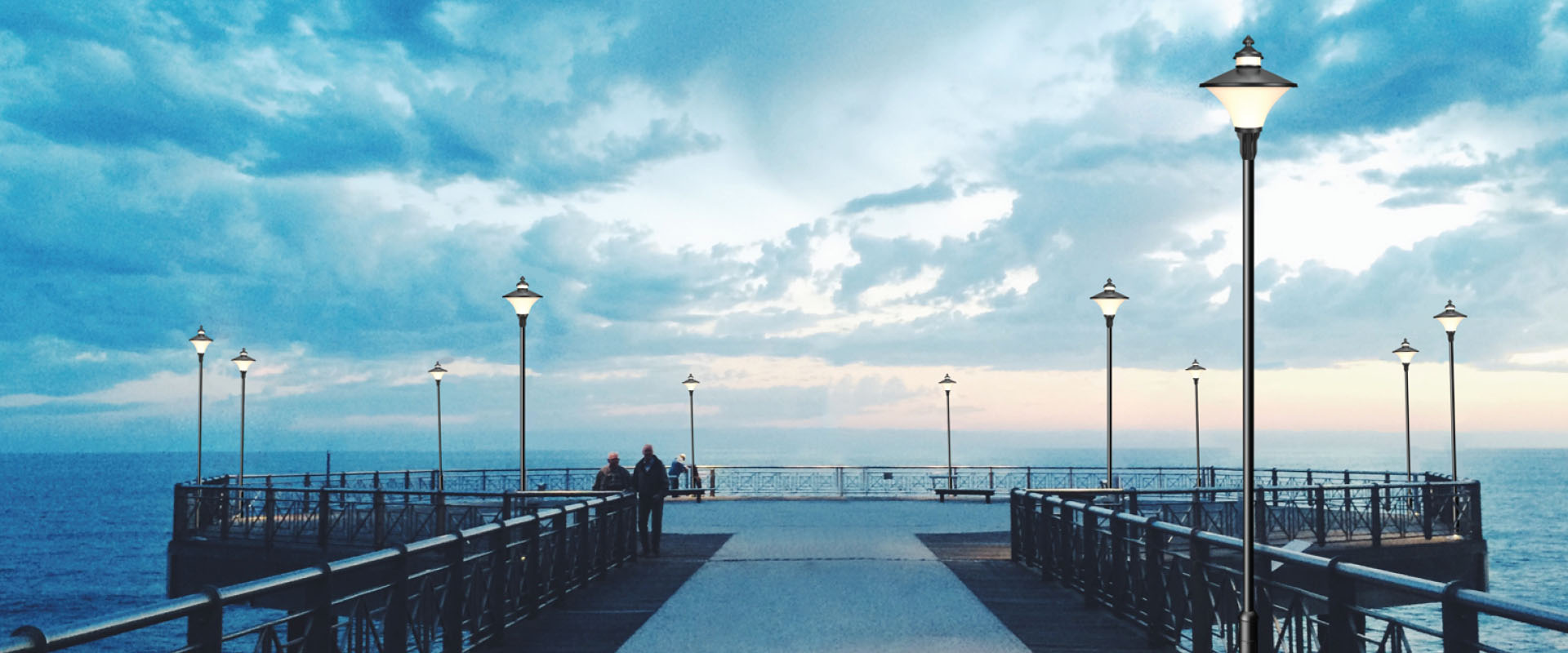

Illuminating parks, Gardens, Commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

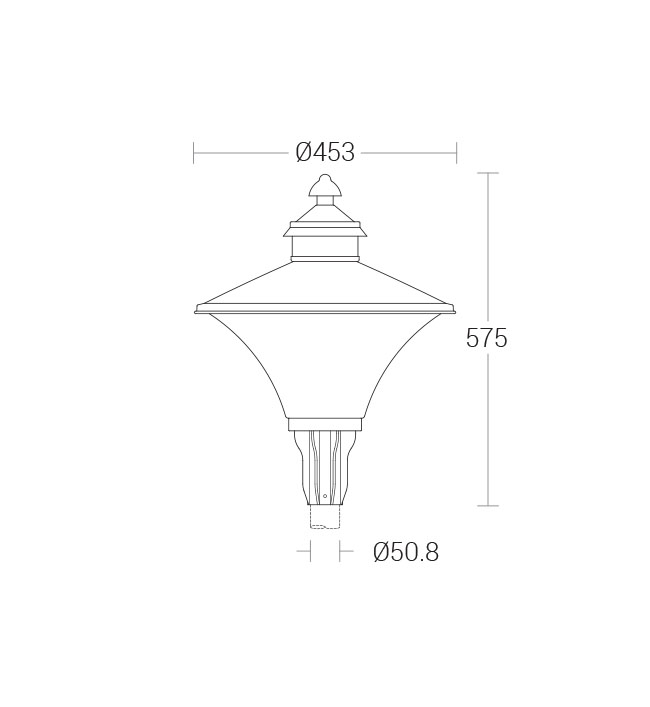

KL-498327W LED 2700K,3000K,4000K,5700K, Translucent AcrylicØ453 x 575mmD1
KL-4983.IESKL-4983.PDF4983.pdf
KL-5084E27 Holder (Max.17W LED / 23W CFLE), Translucent AcrylicØ453 x 575mmD1
