Pyro Stix
Product Description
• Luminaire made of Stainless Steel Pipe (grade 304) & Pressure die cast aluminium pyro top.
• Non yellowing UV stabilized clear acrylic diffuser
• Mounting spike / die cast aluminium base arrangement to facilitate easy Installation at any desired location.
• Luminaire operating voltage is 24Vdc. Non-Integral luminaires supplied with suitable external dc to dc converter, to be installed with suitable IP Junction box.
• Luminaire to be ordered with suitable power supply.
• Low Voltage at 24Vdc assures safety.
• Ordering guide : KL-4560-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Timeless modern design, quick & simple installation.
• Corrosion resistant and Maintenance free.
• Soft diffused lighting provides pedestrians glareless and distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption

Area of Application
Suitable for gated community and non-public / low density public areas

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

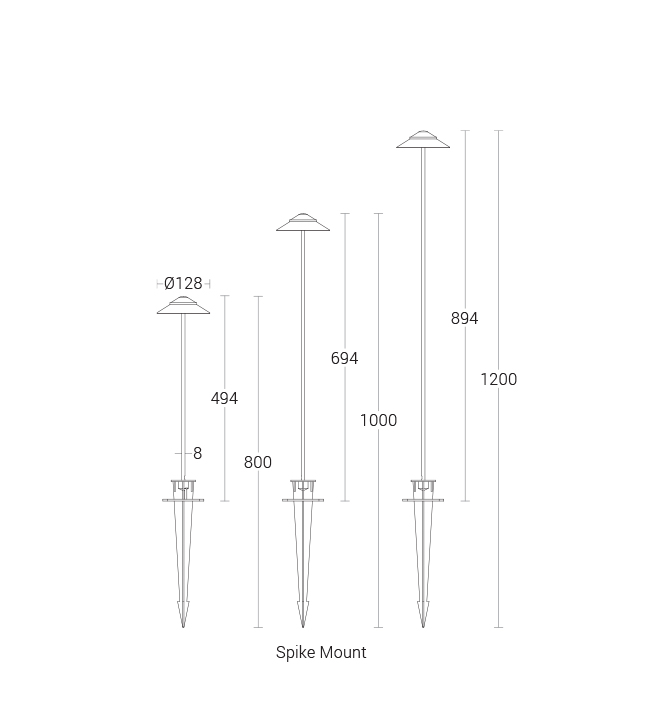

KL-45606W LED 2700K,3000K,4000K,5700K BA:Symmetrical, Clear AcrylicSurface : Ø128 x 500,Ø128 x 700,Ø128 x 900,Spike : Ø128 x 800,Ø128 x 1000,Ø128 x 1200mm4560.pdf
KL-4560.txt
