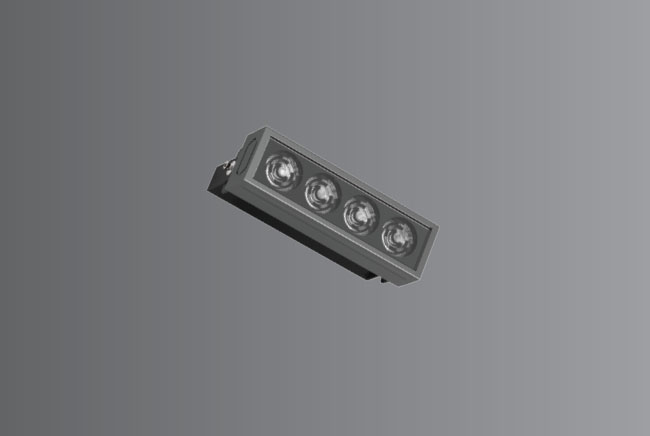

Leva-4
Surface mounted LED luminaires suitable for wall, ceiling & floor applications which adds elegance to commercial, historical and modern architecture.

Product Description
• Luminaire body made of aluminium alloy (grade 6063) of high strength and heat dissipation performance.
• Safety clear toughened glass.
• Silicone gasket.
• Equipped to take multiple optics for varied wall grazing & wall washing distribution
• All external screws used are in stainless steel.
• Mounting bracket to facilitate proper aiming of the luminaire at desired angle during installation.
• Wall, ceiling and floor mount options with adjustable brackets.
• Constant voltage non integral power supply
• Luminaire power cord for single colour 2 x 1.0mm2 rubber wire of 0.5 metre length.
• LED versions available with 3000K (Other CCT’s on request).
• Luminaire power cord for RGBW signal wire 5 x 0.5mm2 rubber wire male female butt joint unilateral 0.5mm length.
• LED versions available with RGBW.
• RGBW DMX512 compatibility
• Low Voltage at 24V dc assures safety.

Product Benefits
• Versatile use, Simple installation
• Varied optics
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

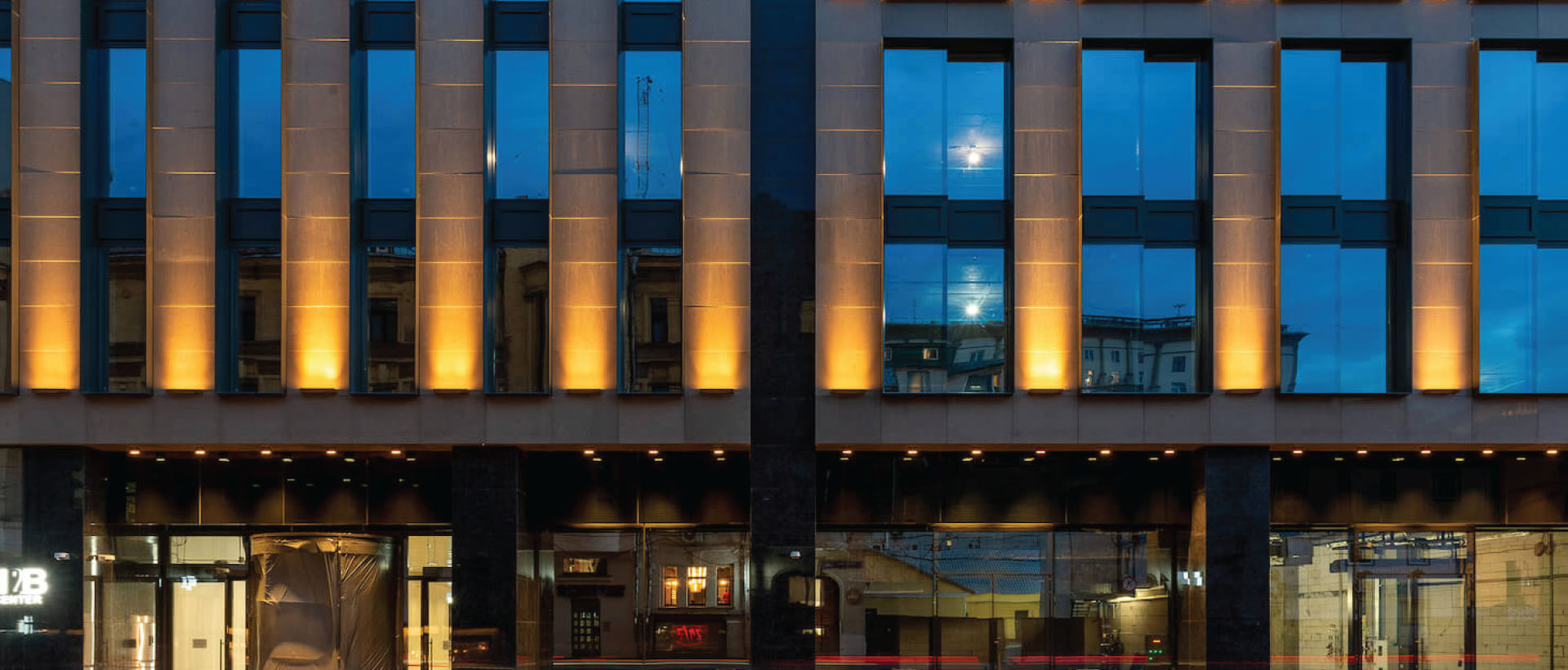

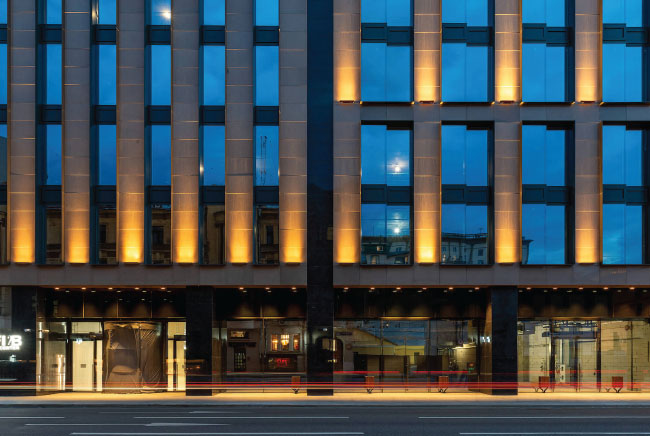

Building Facade, Architectural focal points, Bridges, Landscapes, Architectural elements.

Available Finish
Pure polyester powder coated grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-431920W LED 3000K,RGBW BA:2°,20°,10°x30°, Clear Toughened Glass236 x 70 x 121mmKL-4319-BANARROWBEAM-3000K.IES
KL-4319-BAASYMMETRICAL-3000K.IES
KL-4319-BANARROWBEAM-3000K.PDF
KL-4319-BAASYMMETRICAL-3000K.PDF
4319.pdf
