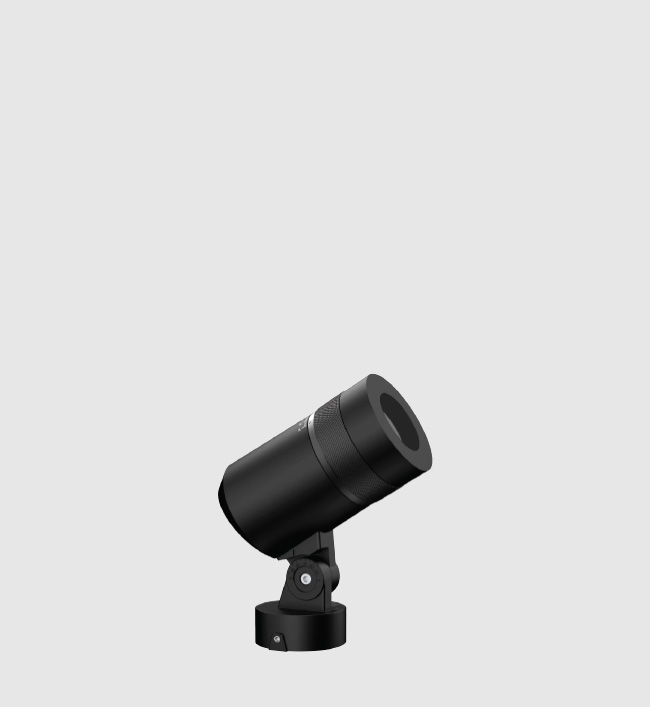

Zoom Midi
LED compact spot light luminaires designed to provide directional light. The luminaires comes with a connecting cable and bracket for permanent installation on a wall, under a ceiling or on floor.

Product Description
• Luminaire made of pressure die cast aluminium of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear tempered glass.
• Mounting die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Rotary ring to adjust focusing from 15°- 60° beam angles (Zoomable).
• Cable entries for through-wiring of mains supply cable.
• CRI (Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-2594-CCT (Colour Temperature).
• Available CCT : 3000K (Other CCT’s on request)

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

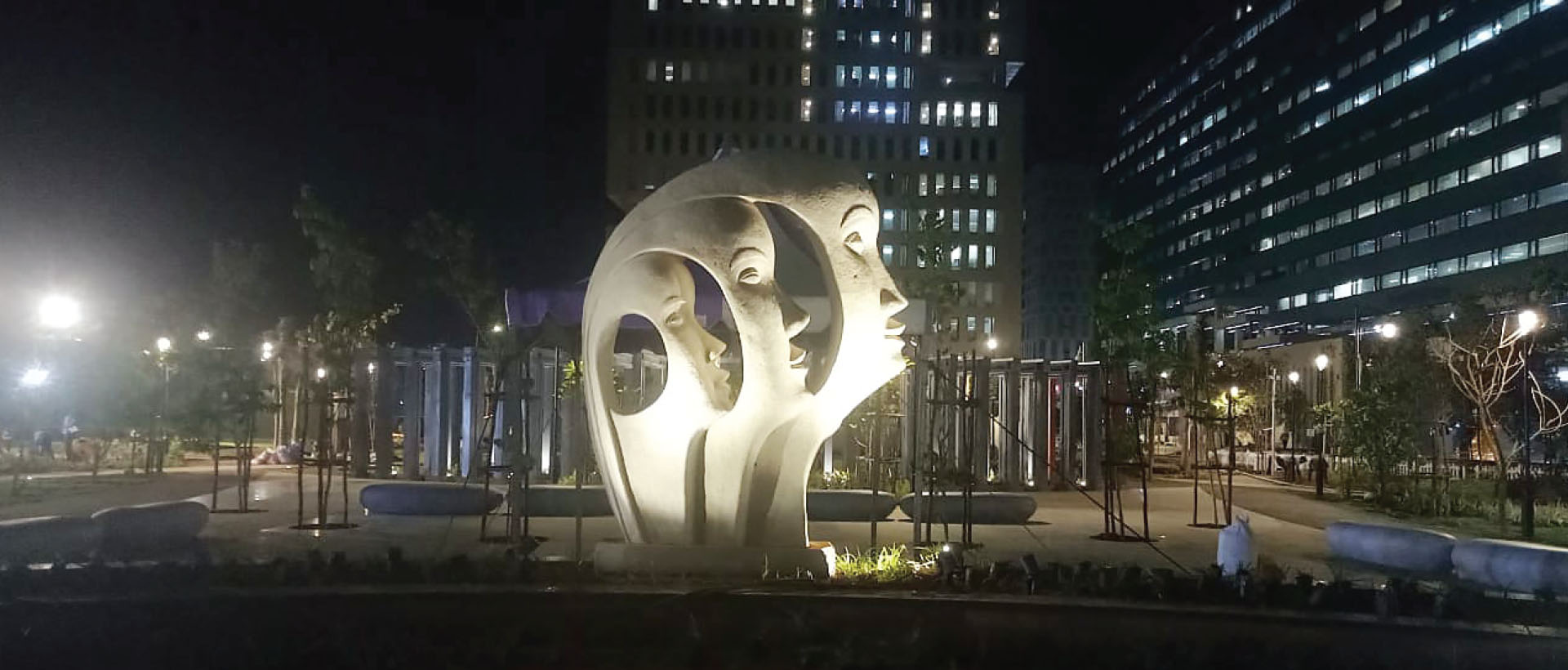

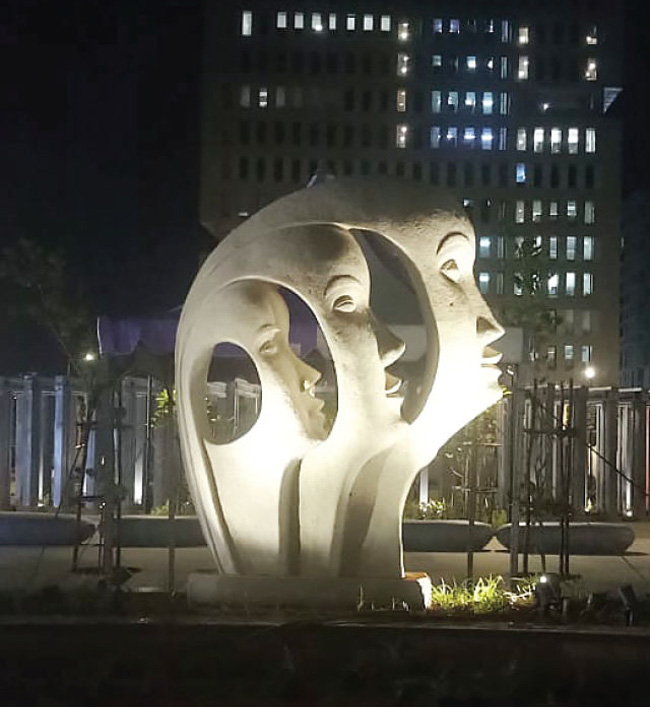

Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting.

Available Finish
Powder coated anthracite grey.

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

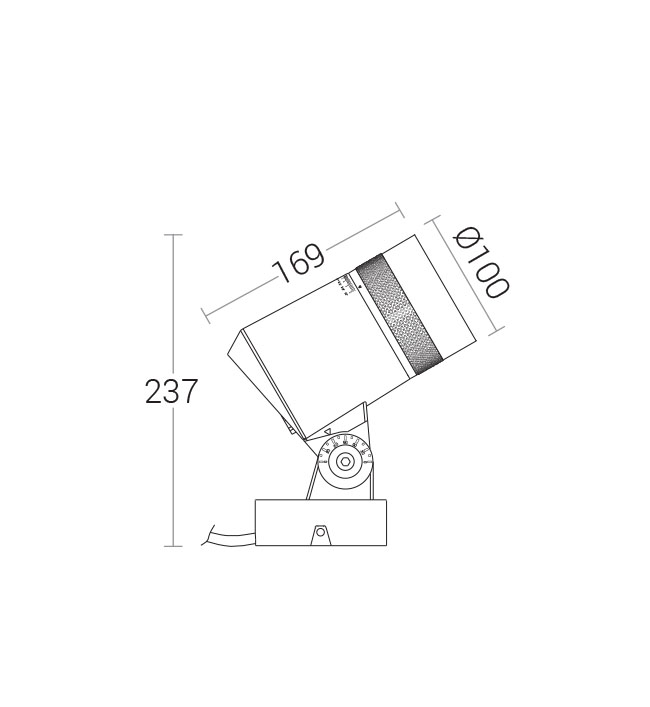

KL-259420W LED 3000K BA:15-60° Zoomable, Clear Tempered glass169 x Ø100 x 237mmKL-2594-BA-WIDE-BEAM-WW.IES
KL-2594-BA-NARROW-BEAM-WW.IES
KL-2594-BA-WIDE-BEAM-WW.PDF
KL-2594-BA-NARROW-BEAM-WW.PDF
2594.pdf
