Verbena Bollard

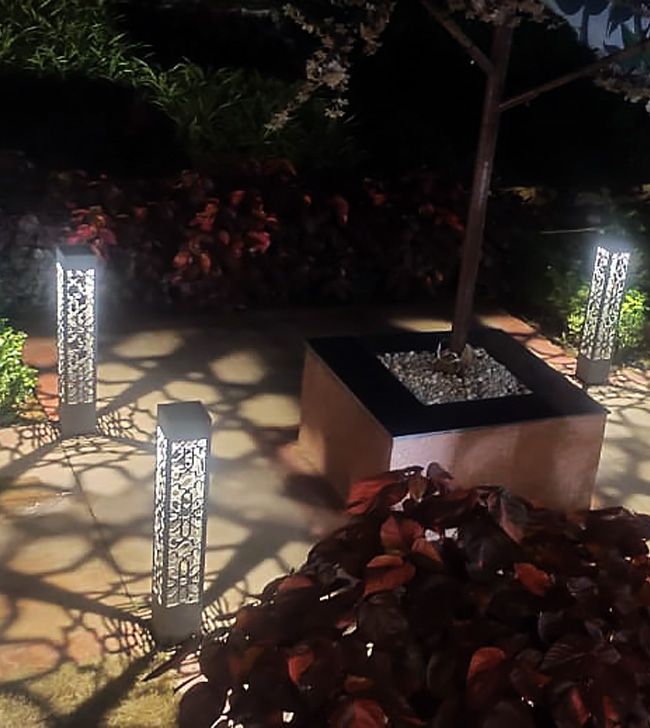

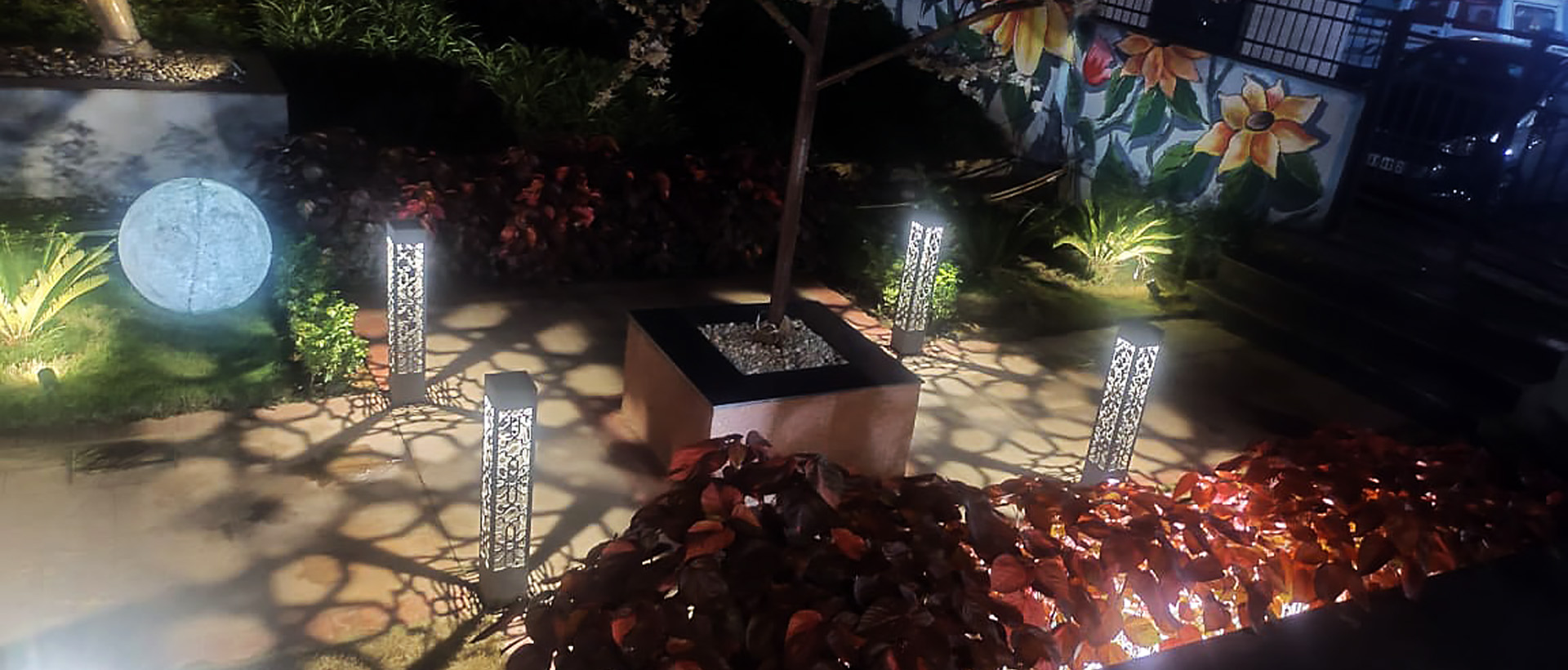

A decorative LED bollards designed for garden and pathway luminaires. These luminaries offer shielded glare free illumination of ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture. Bollard luminaires contribute to safety by illuminating pathways and other open spaces.

Product Description
• Luminaire body made of square aluminium tube (grade 6063) with aluminium components and SS fasteners.
• For optimum coordination with lighting situation, luminaires can be supplied in different Bespoke design options.
• EPDM gasket
• Luminaire integrated with 12W LED.
• Toughened clear glass diffuser.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4735-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6500K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Corrosion resistant and Maintenance free.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and as well as landscape architecture

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

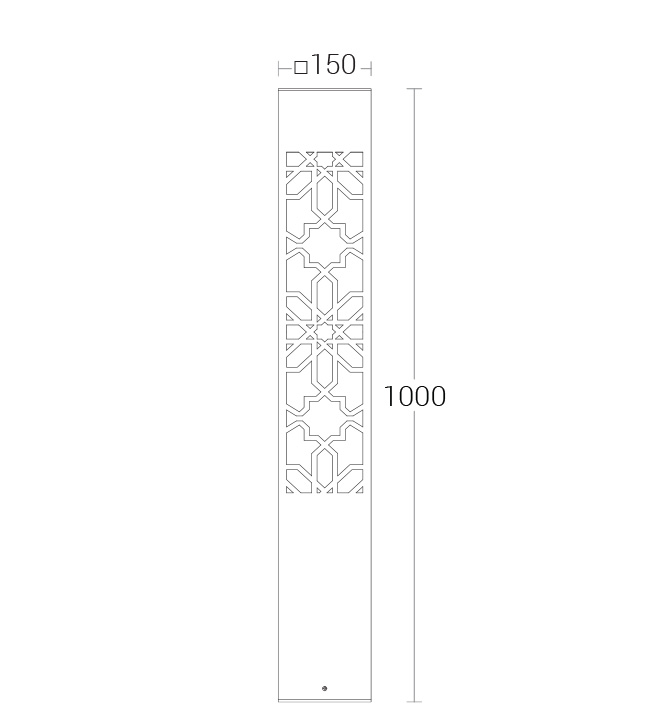

KL-473512W LED WW,NW,CW, Toughened Clear Glass Sq.150 x 910mmM36
Detailed Foundation Drawing
KL-4735-BA--WW.IES
KL-4735-BA--CW.IES
KL-4735-BA--NW.IES
KL-4735-BA--WW.PDF
KL-4735-BA--CW.PDF
KL-4735-BA--NW.PDF
4735.pdf
KL-4735.txt
