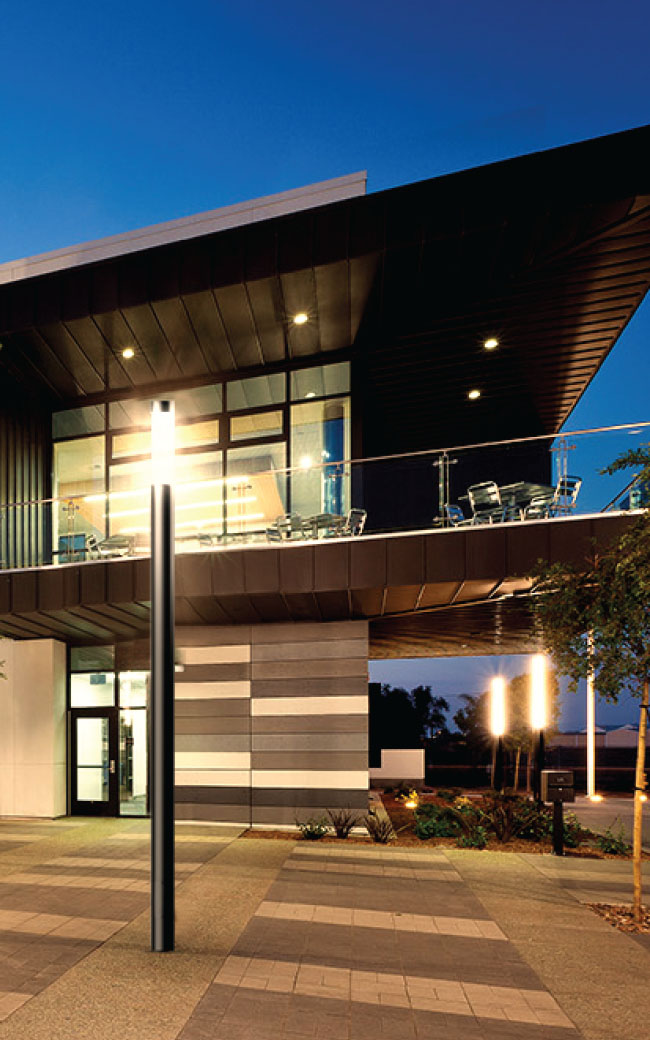

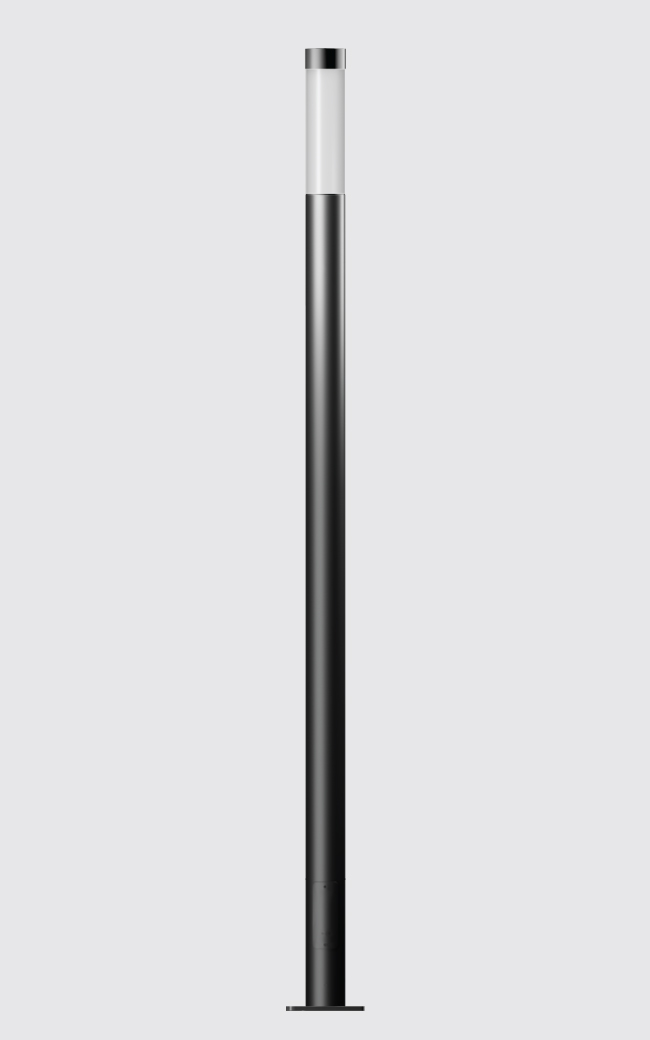

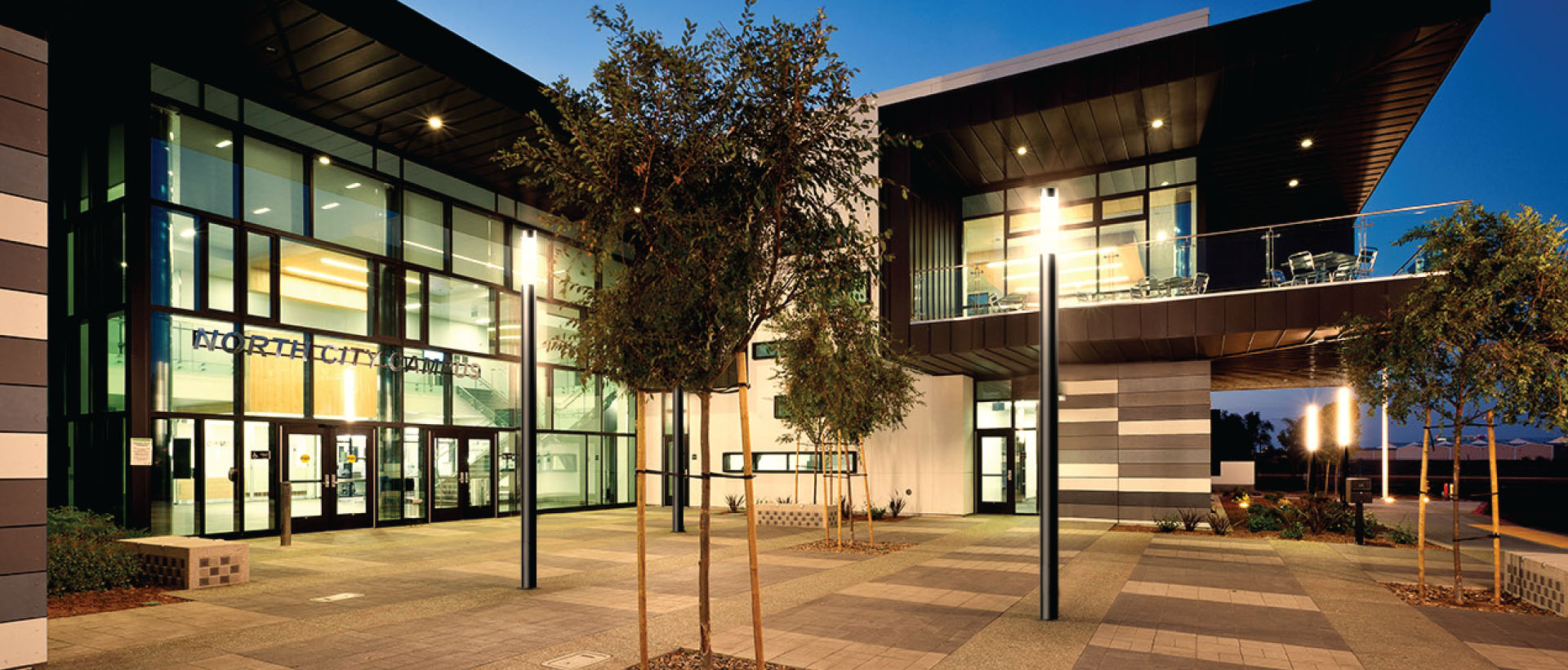

Elegant column lighting feature,which is suitable for both modern and classic architecture.Ideal for creating orientation with exceptional visual comfort.These luminaries offer general ambient light in open spaces giving a sense of security in night-time.Clean Lines and pure form are the underlying elements in this series of column light,designed to provide rotationally symmetrical illumination,Light emission 360°.

Technical Specifications
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• For optimum illumination,these luminaries can be supplied in three different heights.
• Non yellowing UV stabilized translucent polycarbonate diffuser.
• Silicone gasket.
• MS mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4665-CCT (Colour Temperature)
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• Practical.Elegant.Efficient.
• Timeless modern design options.
• Easy to maintain,robust and durable construction.
• Soft diffused lighting protects pedestrians from glare and provides distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for Private & Public areas,Illuminating Driveways,Pathways,Building surrounds,Entrances,Squares & Gardens,Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

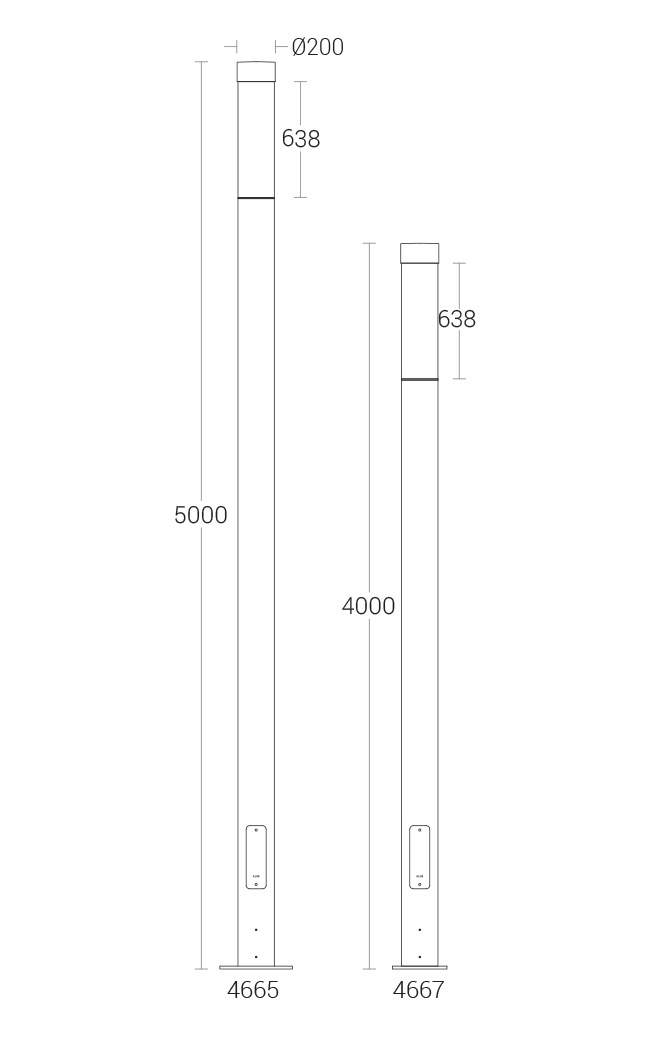

KL-466750W LED 2700K,4000K,5700K, Translucent PolycarbonateØ200 x 4000mmM50
Detailed Foundation Drawing
KL-466550W LED 2700K,4000K,5700K, Translucent PolycarbonateØ200 x 5000mmM50
Detailed Foundation Drawing
