Navya / Navya Mini

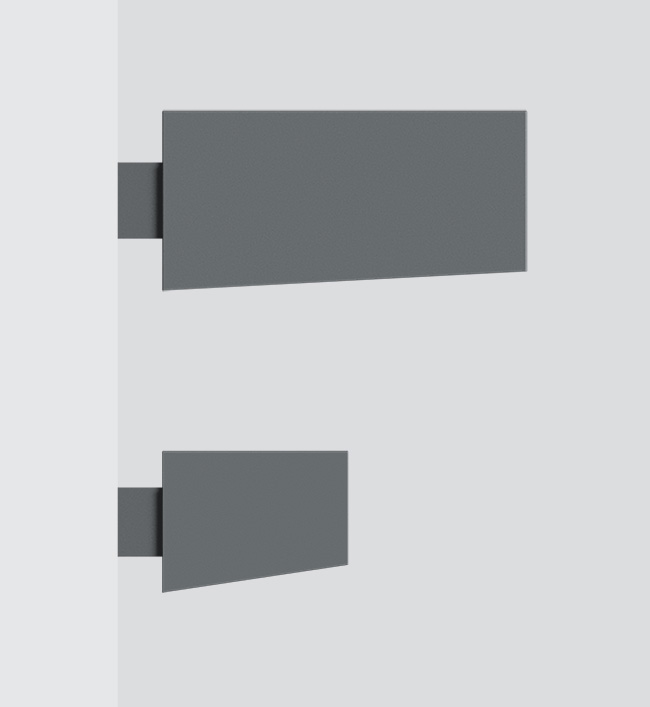

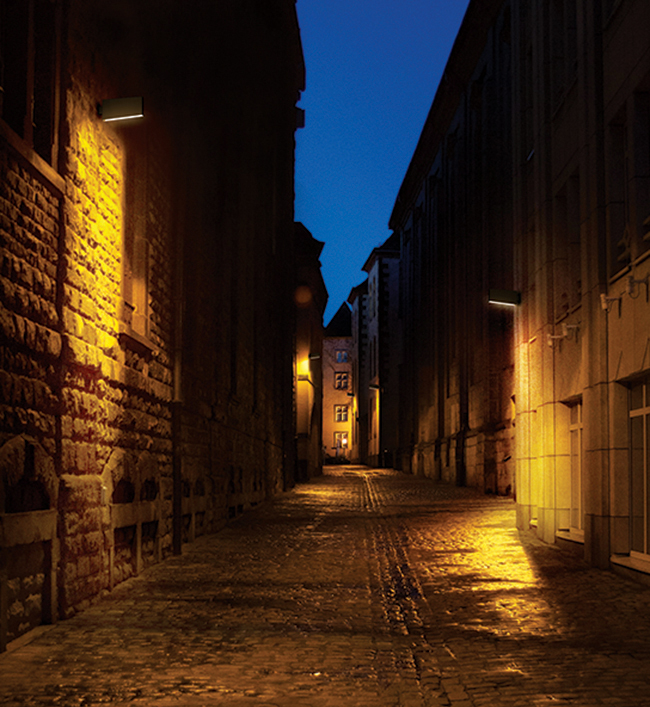

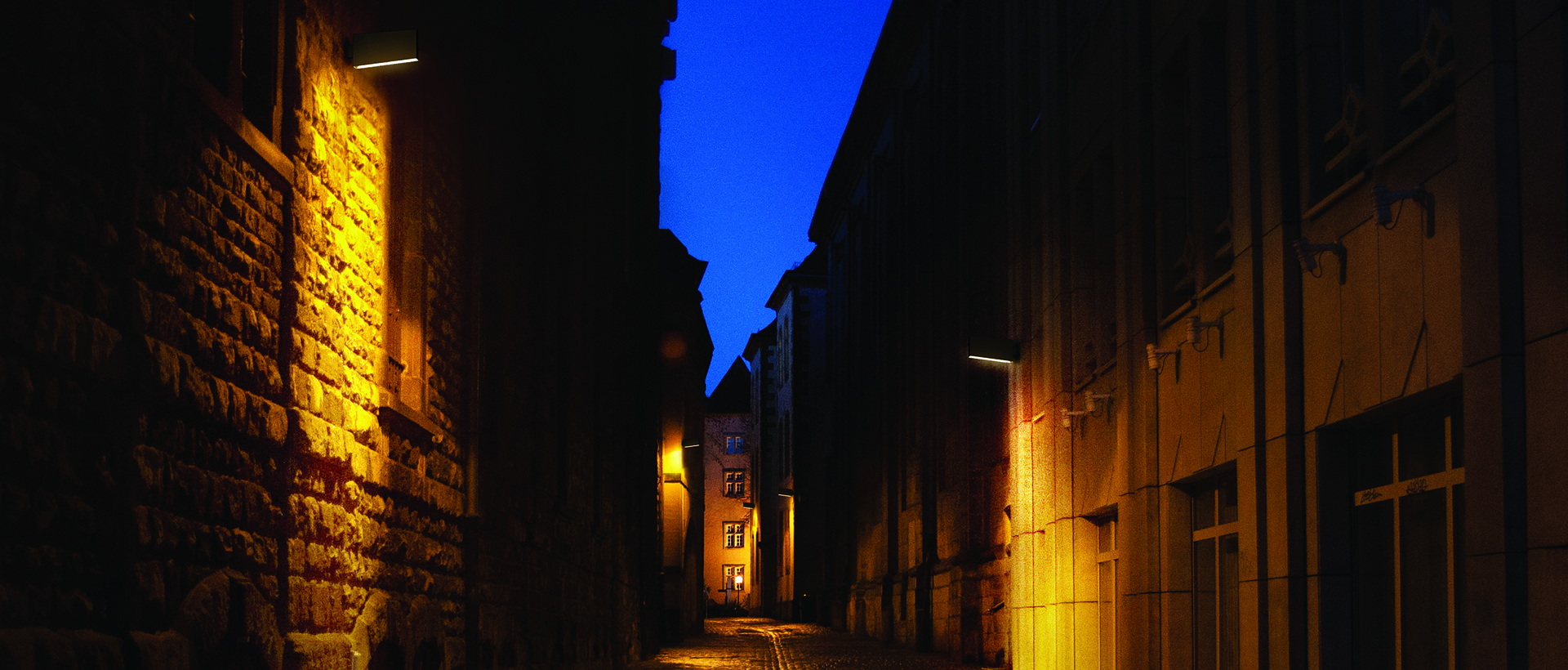

“Navya Mini / Navya” wall luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically shaped wall mounted luminaire with fully shielded light source for striking light effects. Product offered asymmetrical light distribution.

Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 24W LED.
• Pressure die cast aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4367-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Retail Sector, Residential, Building facade, Commercial centres, Internal passages, Pathways.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

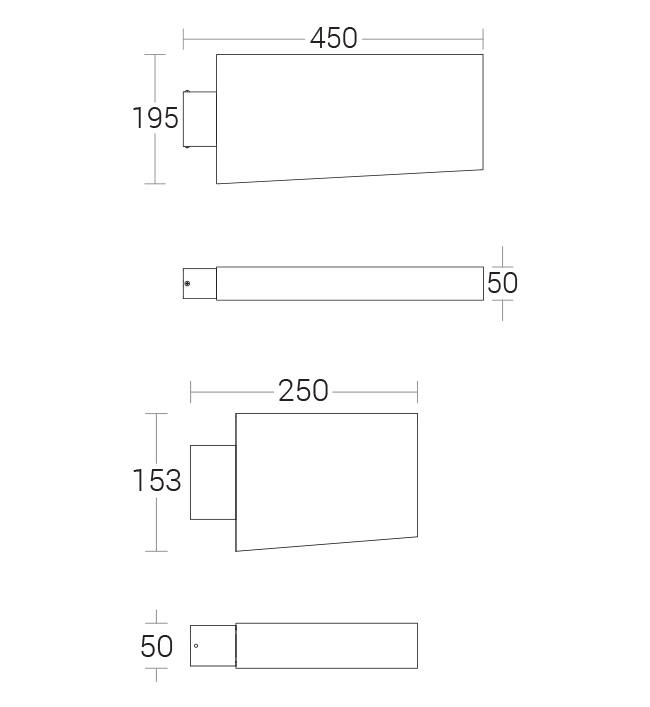

KL-436848W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical Lens450 x 50 x 195mmN13
W32
Detailed Foundation Drawing
KL-4368-BANA-NW.IES
KL-4368-BANA-NW.PDF
4368.pdf
KL-436724W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical Lens250 x 50 x 153mmN13
W32
Detailed Foundation Drawing
KL-4367-BATypeIII-WW.IES
KL-4367-BA--CW .IES
KL-4367-BATypeIII-NW.IES
KL-4367-BATypeIII-WW.PDF
KL-4367-BA--CW .PDF
KL-4367-BATypeIII-NW.PDF
4367.pdf
