Genesis
“Genesis” is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description

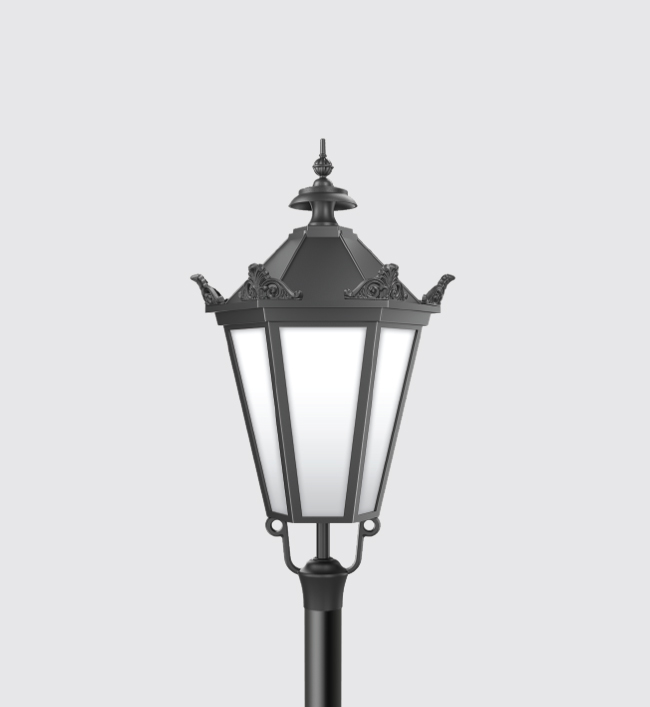

• The luminaire body made of die-cast aluminium alloy with decorative embellishment.
• Translucent acrylic diffuser formed from non-yellowing acrylic sheet.
• The lamp along with driver is housed inside the top portion and the bottom portion of supporting arms attached to a cast aluminium base.
• Luminaire integrated with 45W LED.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5436-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

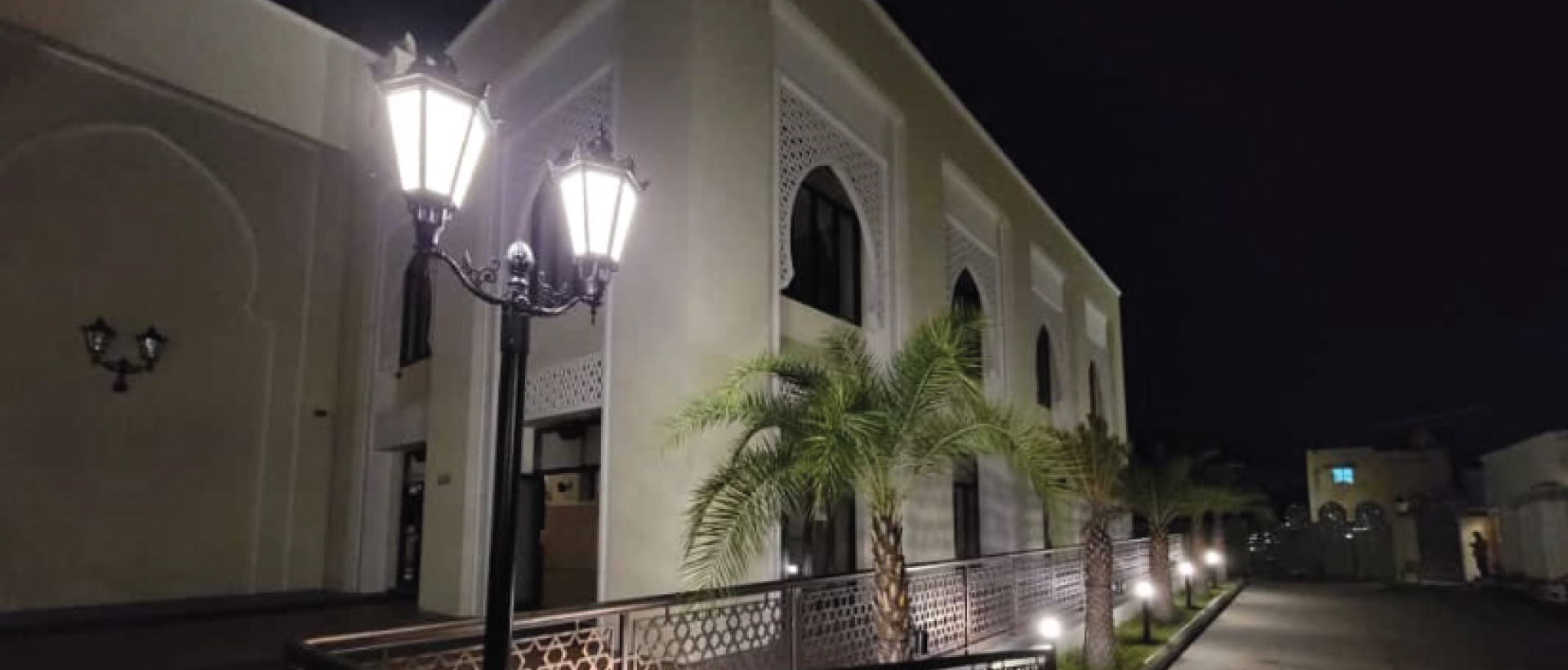

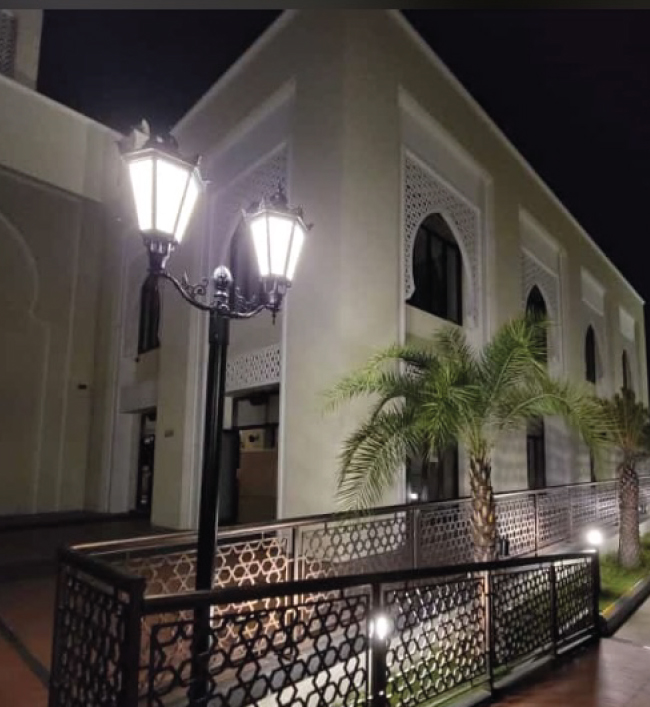

Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & Office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

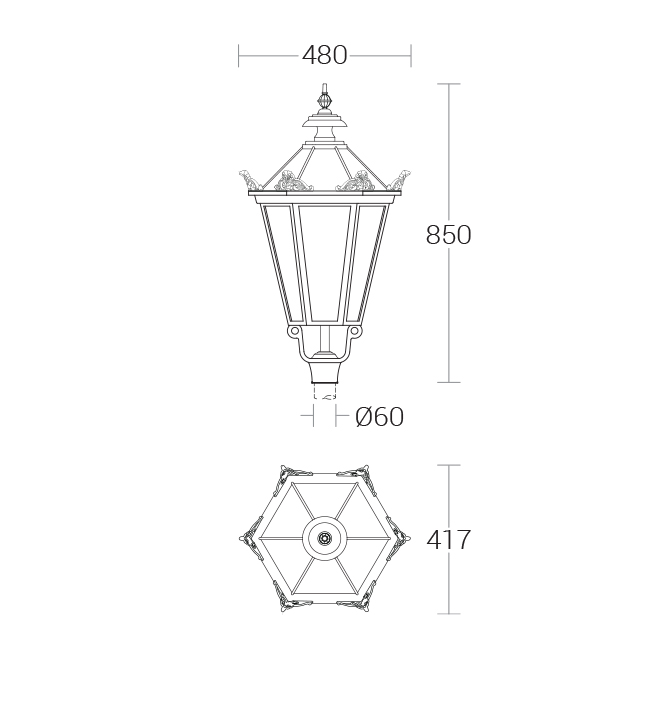

KL-5435E27 Holder (Max. 30W LED / 45W CFLE), Translucent Acrylic480 x 417 x 850mmD25435.pdf
KL-5435.txt
KL-543645W LED WW,NW,CW, Translucent Acrylic480 x 417 x 850mmD25436.pdf
KL-5436.txt
