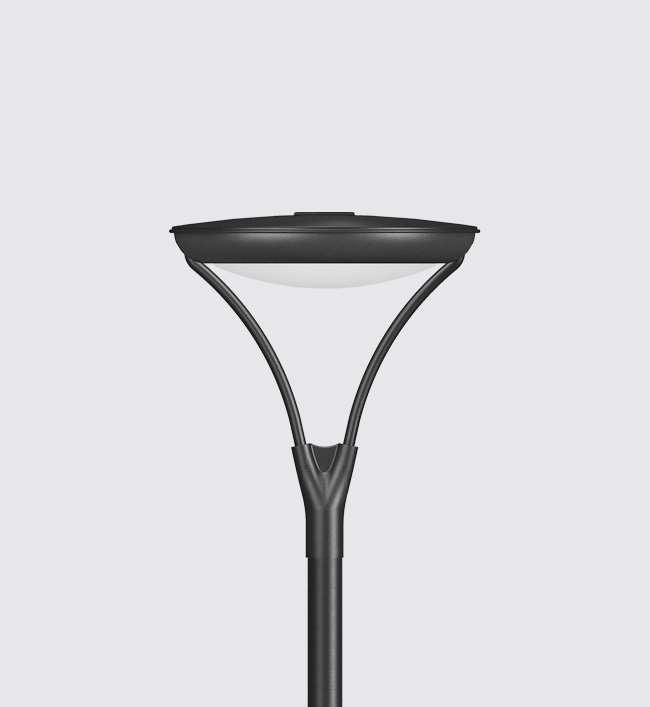

A modern heritage post top luminaire upgraded with high performance light engines. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Designed for highest efficiency in terms of more lumens at reduced wattages.

Product Description
• The luminaire housing made of spun aluminium top cover and die cast luminium bottom.
• The module along with driver is housed inside and covered with diffuser and supporting brackets.
• Non yellowing UV stabilized clear acrylic diffuser.
• Luminaire integrated with 45W / 50W / 100W LED.
• Die cast aluminium mounting base.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5384-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

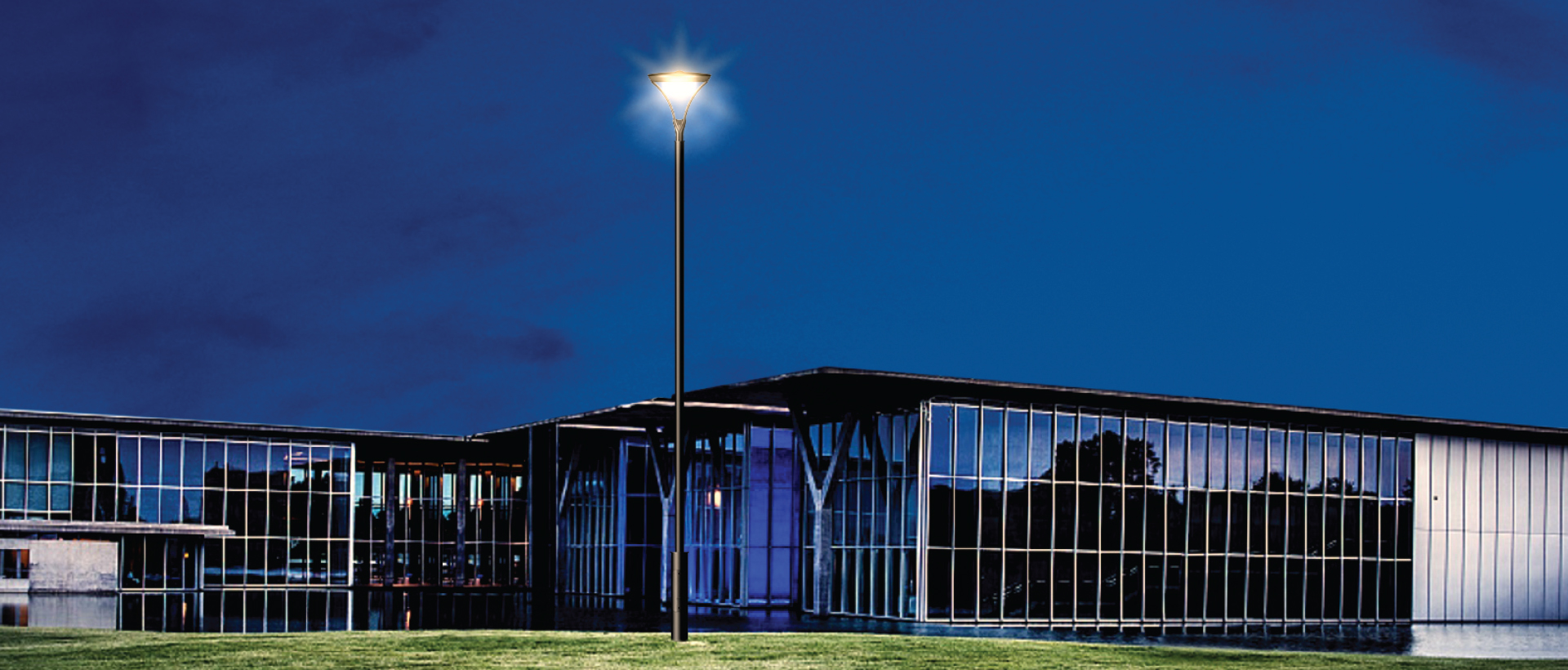

Illuminating parks, Gardens, Commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

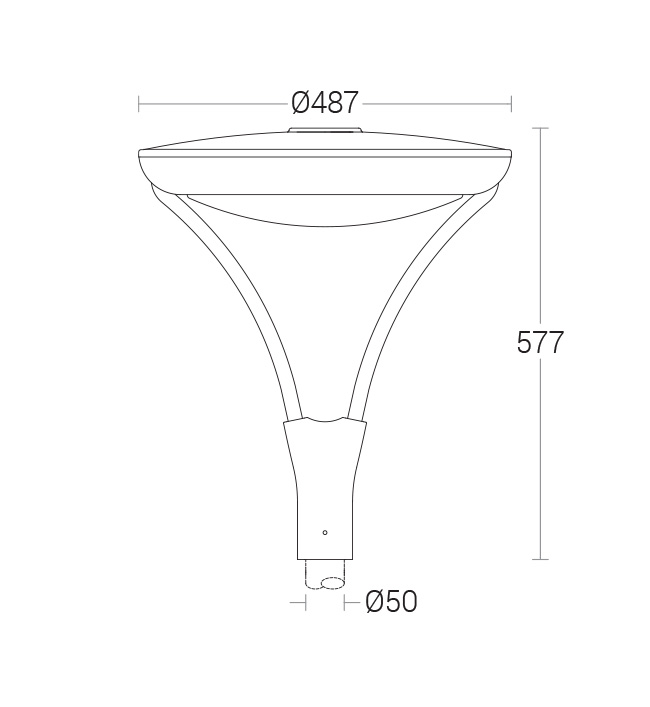

KL-450245W LED WW,NW,CW BA:Symmetrical, Translucent AcrylicØ487 x 577mmD1KL-4502.IESKL-4502.PDF4502.pdf
KL-4502.txt
KL-4503100W LED WW,NW,CW BA:Type IV, Clear AcrylicØ487 x 577mmD14503.pdf
KL-4503.txt
KL-538450W LED WW,NW,CW BA:Type IV, Clear AcrylicØ487 x 577mmD1KL-5384-BATYPEIII-WW.IES
KL-5384-BATYPEIII-CW.IES
KL-5384-BATYPEIII-NW.IES
KL-5384-BATYPEIII-WW.PDF
KL-5384-BATYPEIII-CW.PDF
KL-5384-BATYPEIII-NW.PDF
5384.pdf
KL-5384.txt
