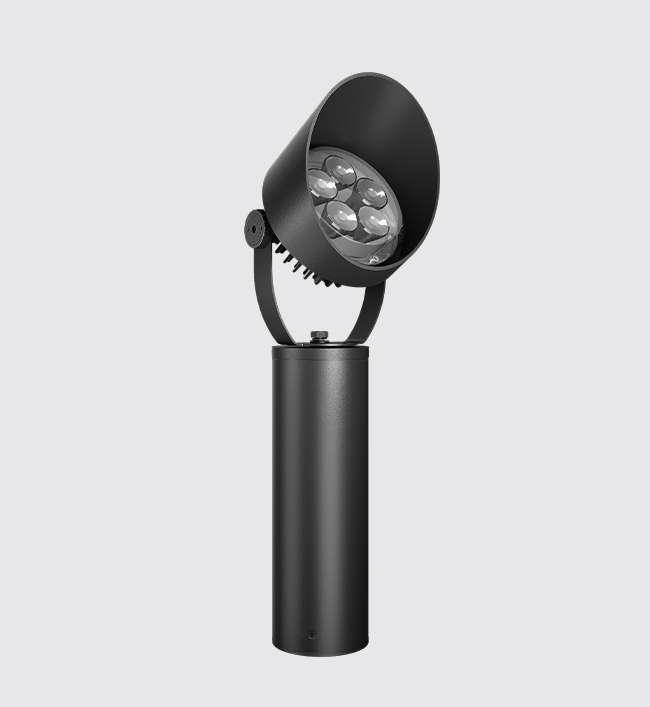

Navi Spot
High efficiency LED flood lights designed to provide directional spot light.The product design and construction of the luminaires are characterized by high luminous efficiency, an extremely long service life and uniform illuminance. Their sturdy construction makes them particularly suitable for areas where a high level of robustness is required.

Product Description
• Extruded aluminium hood cover integrated with die-cast module and extruded aluminium alloy (grade 6063) pipe
• Heat resistant polycarbonate optical lens
• Mounting bracket to facilitate proper aiming of the luminaire at desired angle.
• Available in 6° beam angle
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4285-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

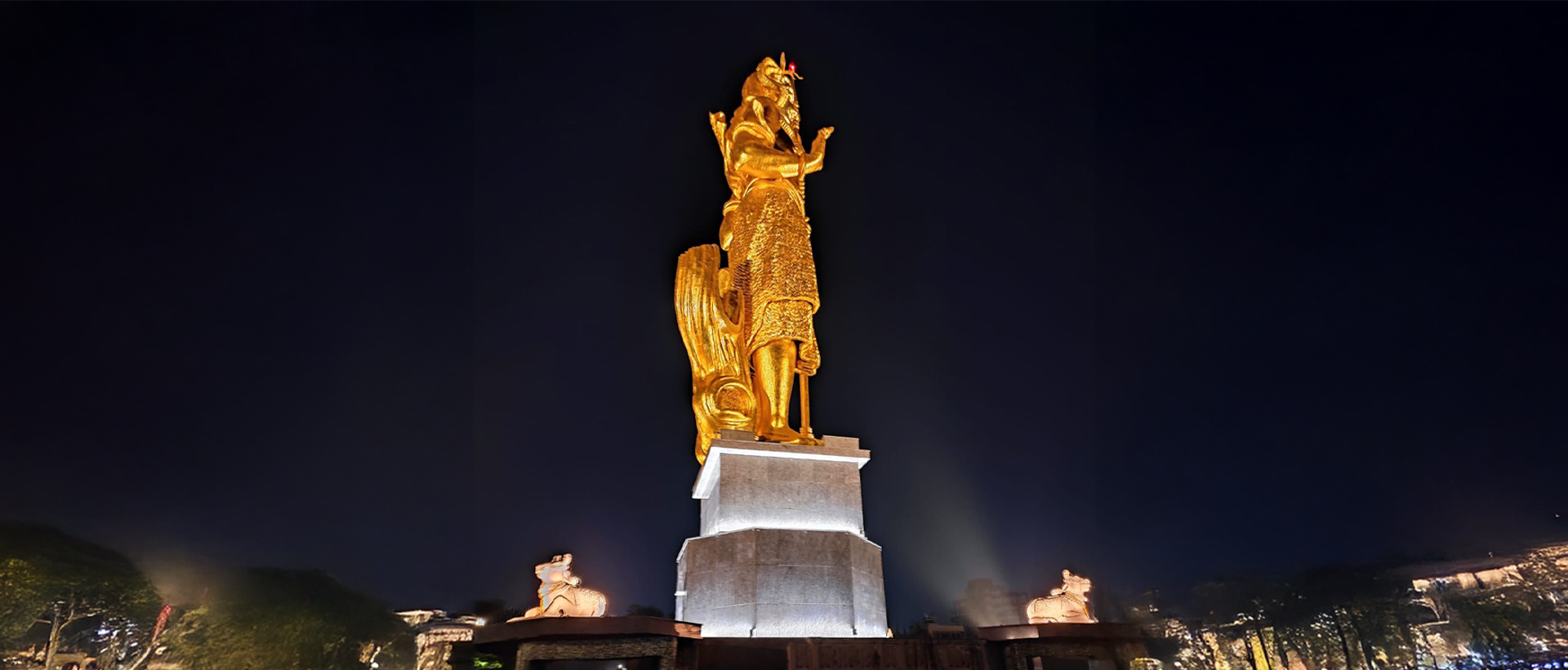

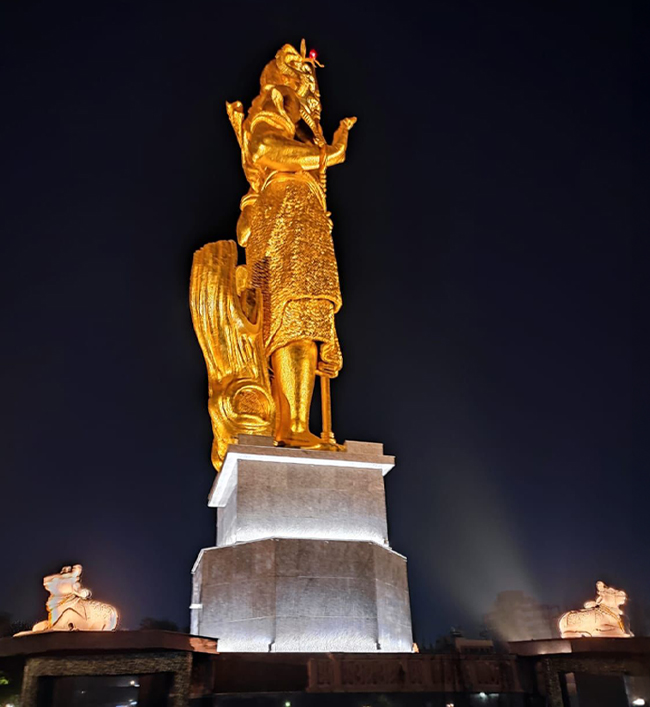

Architectural and building facade lighting, Pathways, Parks, Sculptures, structures and Security lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Accessory
• Spill Control Snoot
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-8275Tree Strap Accessory1000mm8275.pdf
KL-8275.txt
KL-8341Navi - Spill Control Snoot AccessoryØ166 x 200mmKL-8341.txt

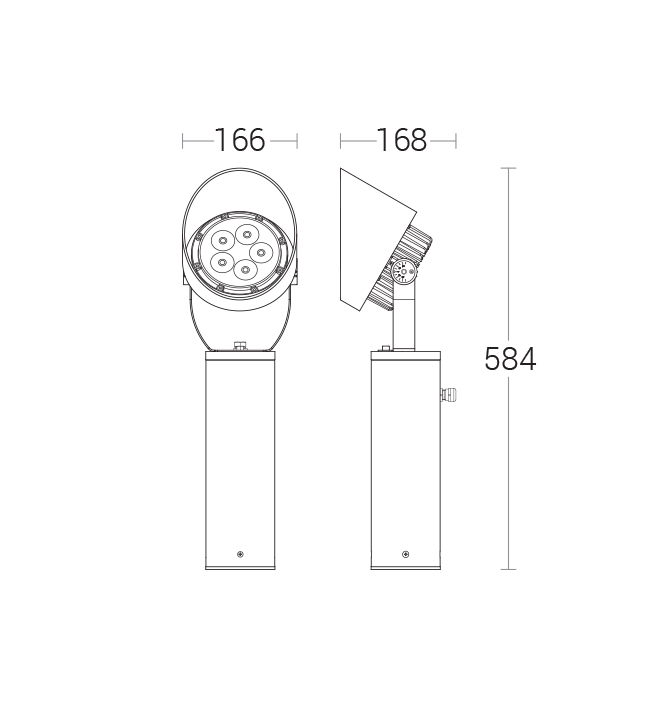

KL-426150W LED WW,NW,CW BA:6°, Polycarbonate Optical LensØ166 x 153 x 423mmKL-4261-BA6°-WW.IES
KL-4261-BA6°-WW.PDF
4261.pdf
KL-4261.txt
KL-428530W LED WW,NW,CW BA:6°, Polycarbonate Optical LensØ166 x 153 x 423mm4285.pdf
KL-4285.txt
