Form-16

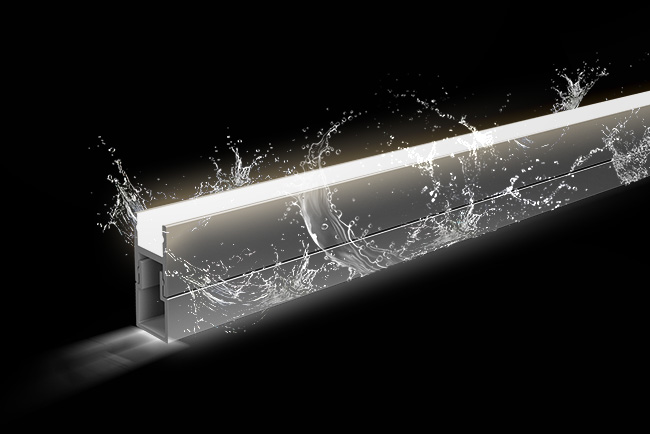

Our IP67 profiles are modular and offers an innovative lighting solution in constrained space which require linear lighting.The profiles are made of extruded aluminium and are available in powder coated white / black and anodised aluminium finish options.
Depending upon form selected clear and translucent encapsulation options are available.The aluminium profile and the polyurethane encapsulation lends to IP67 protection class.Various mounting options are available making it a versatile product for various applications.

Product Features
• Luminaire made of extruded aluminium for better thermal management.
• Translucent polyurethane encapsulation.
• Surface / Recessed / Suspended mounting options available.
• IP67 connector on both ends and can be easily installed via mounting clips or adjustable wall clamps.
• Constant voltage LED driver 24V Non integral (to be ordered separately).
• MacAdam LEDs < 3-step.
• High CRI80+.
• Dimmable.
• Special colour on request( Red,Green,Blue,Amber etc.)
• Multiple lengths available.

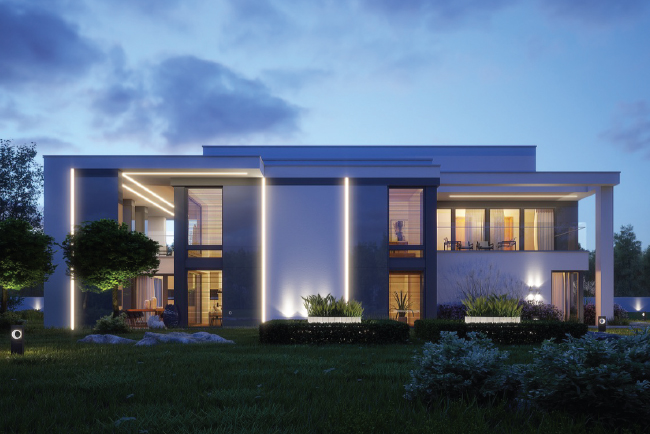

Area of Application
Hotel & Resorts,Staircase Lighting,Malls,Restaurants,Receptions,Shopping Complex,Commercial & Business Centers,Residential Lighting and similar applications.

Installation Note
• Surface,Recessed or Suspended.
• Based on site requirement can be glued using PU glue,silicone / grouted or plastered in on-site cutouts.
• Mounting accessories :Wall clamps / Clips / Suspension kits as per site requirement.
• Luminaire to be ordered with suitable 24V dc power supply.
• Mounting tray for better cable management with slide fit system.

Downloads
Catalogue Page

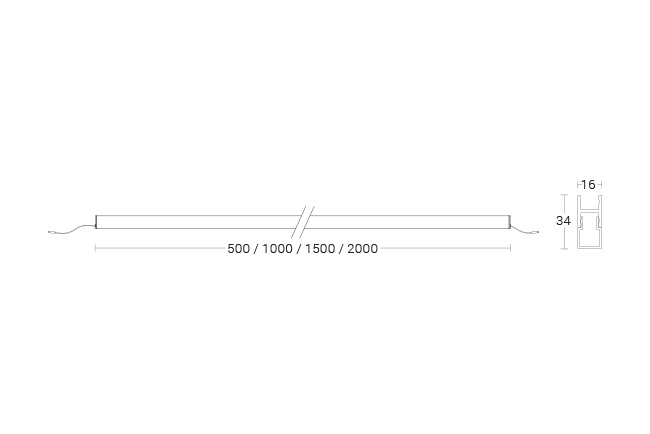

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-8319Accessorie
KL-8322Accessorie1000mm
KL-8321Accessorie500mm
KL-8320Accessorie500mm
KL-325110W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation1000 x 16 x 34mmKL-3251-BAN/A-WW.IES
KL-3251-BAN/A-WW.PDF
3251.pdf
KL-356915W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation1500 x 16 x 34mm3569.pdf
KL-357020W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation2000 x 16 x 34mm3570.pdf
KL-32475W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation500 x 16 x 34mm3247.pdf
