Reflecto Dixon Mega

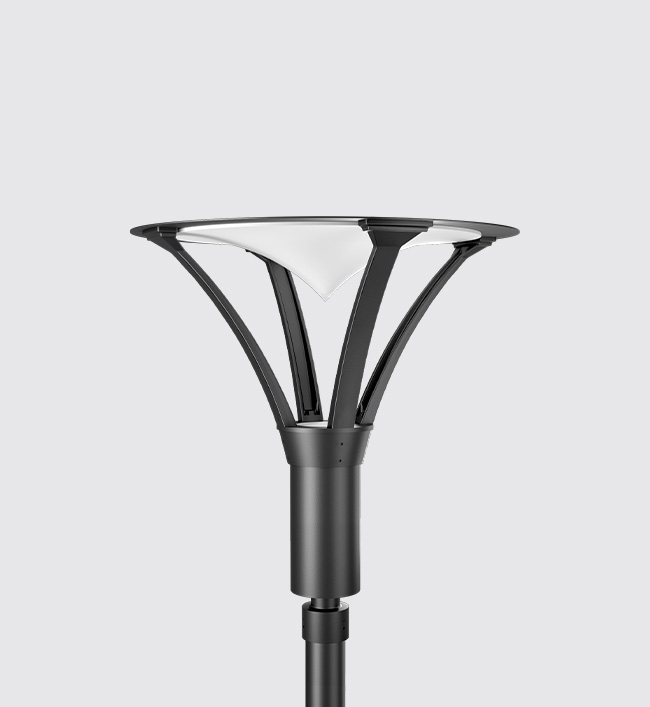

Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Low glare indirect post top luminaire designed for symmetrical light distribution.

Product Description
• Die cast aluminium spigot base integrated with extruded aluminium pipe and a collar.
• Reflector system made of spun aluminium white powder coated for high reflection and cast aluminium supporting brackets.
• The lamp along with control gear is housed inside and covered with a toughened glass diffuser at the top portion of extruded aluminium tube and the bottom portion attached to a mounting base.
• Suitable for mounting on 101mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4925-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Functionality
• Environmental Friendly
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Illuminating parks, Gardens, Commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

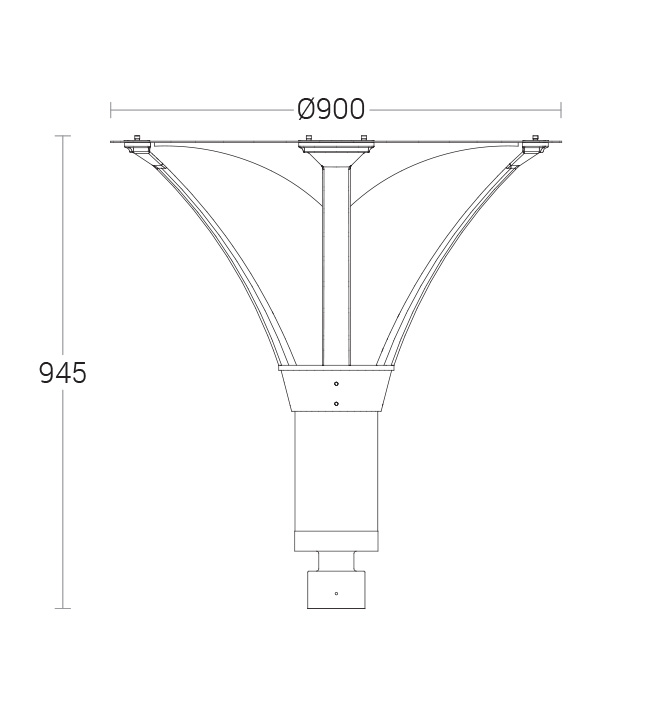

KL-492545W LED WW,CW,NW, Toughened Clear GlassØ900 x 1045mmD13KL-4925.IESKL-4925.PDF4925.pdf
