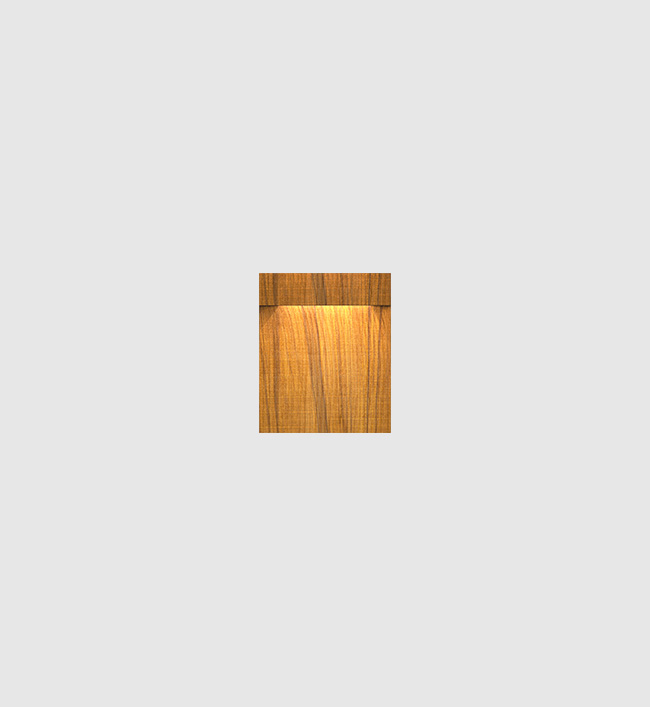

Wall Jado Wood
Surface mounted range of LED wall lights are a perfect fit for varied outdoor lighting applications. Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces. Aesthetically shaped wall mounted luminaire with fully shielded light source for down lighting effects.

Product Description
• Luminaire body made of GI frame fixed and non corrosive SS fasteners.
• Non yellowing UV stabilized clear acrylic diffuser.
• Die-cast aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4211-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low
power consumption.

Area of Application

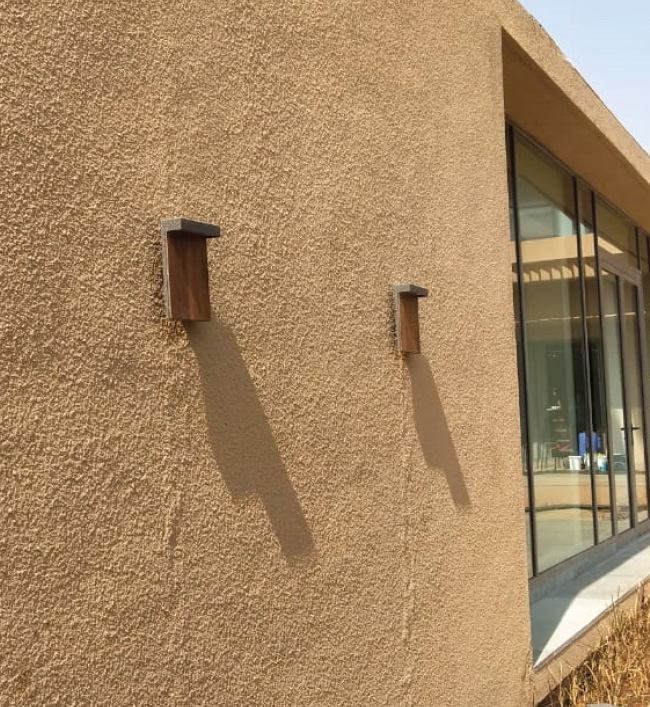

Suitable for Private & Public areas, Illuminating Driveways, Pathways, Building surrounds, Entrances, Squares & Gardens, Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

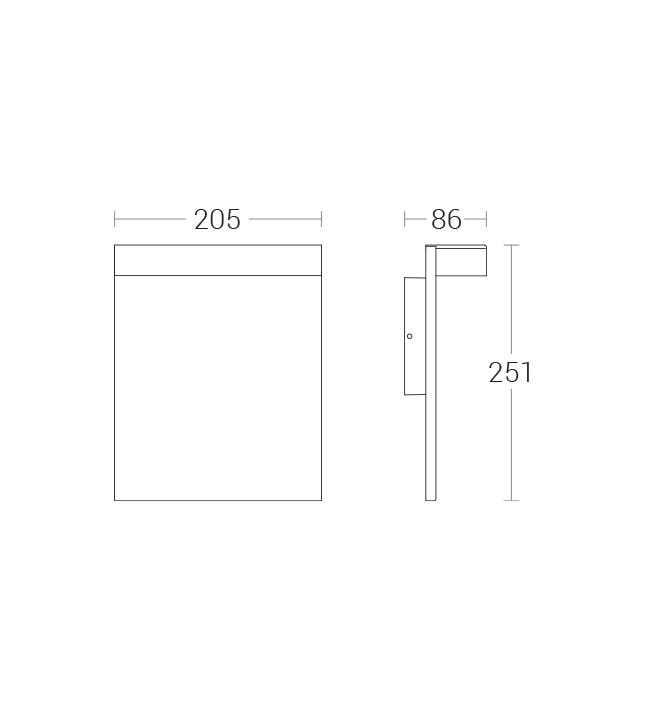

KL-421112W LED 2700K,3000K,4000K,5700K, Clear Acrylic205 x 86 x 251mmW28
Detailed Foundation Drawing
KL-4211-BA--WW.IES
KL-4211-BA--CW.IES
KL-4211-BA--NW.IES
KL-4211-BA--WW.PDF
KL-4211-BA--CW.PDF
KL-4211-BA--NW.PDF
4211.pdf
