Proxima
Proxima series adopt the energy-saving, environmental LED lamp. It is a Perfect lamp with high luminous efficiency, prominent energy saving effect and long lifespan. Also with no radialization, no strobe flash, gentle light. It’s appearance is refined and elegant.
Product Description

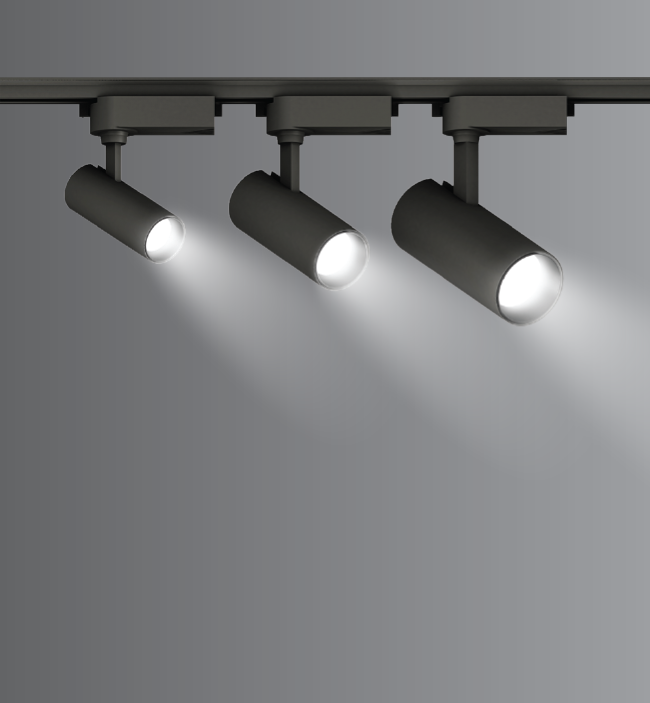

• Adjustable spot light with adapter for installation on track. Luminaire made of die cast aluminium 360° on vertical axis and 90° tilt.
• The body of LED spot light adopt aluminium alloy which has excellent mechanical strength, extruded aluminium for better thermal management.
• Adopting reflector which is with excellent optics effect and excellent spot light effect.
• Two circuit connector, directionally adjustable, convenient installation and maintenance.
• Luminaire provided with built-in-constant current driver with advanced circuit design achieves stable performances and long services span.
• Integral constant current power supply.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-23679-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K
Product Benefits
• Excellent efficiency for high energy savings of up to 80% compared to CFL downlights.
• Replacement of existing CFL downlights with even better performance.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application

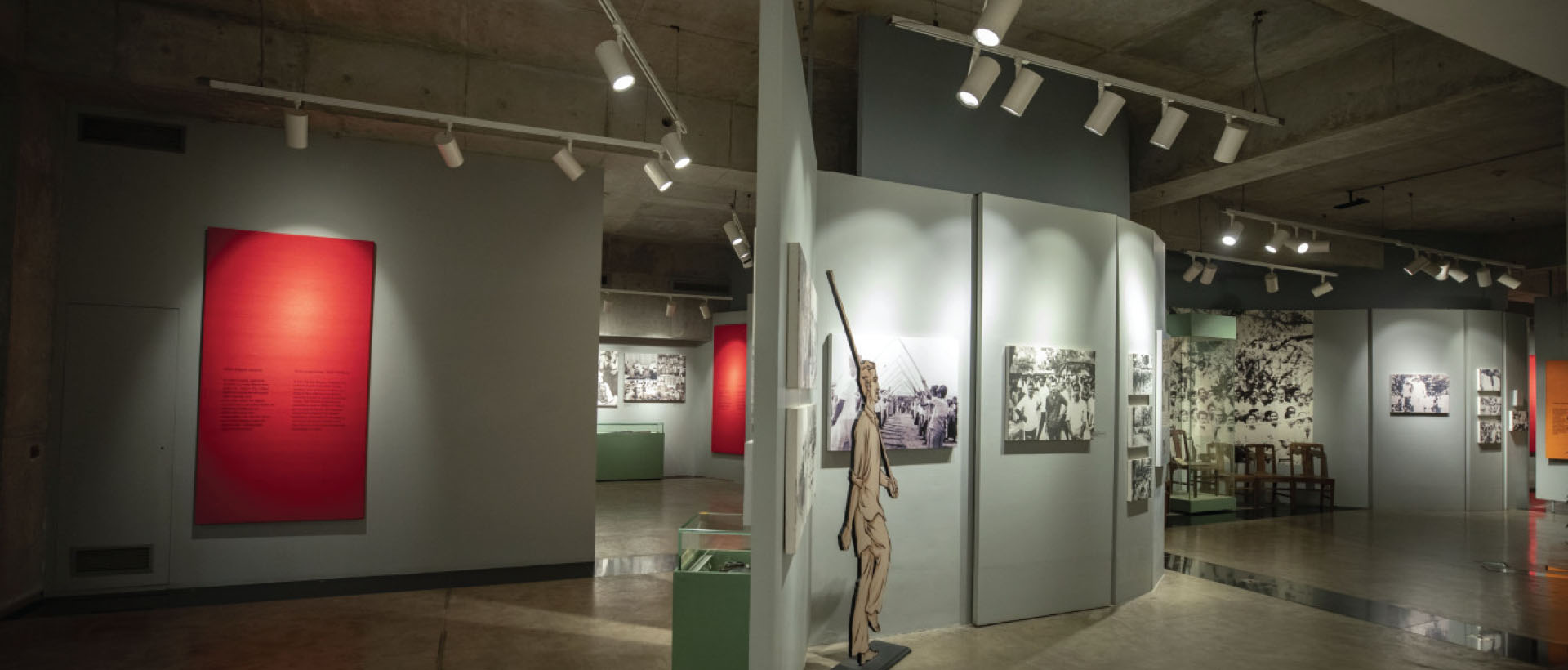

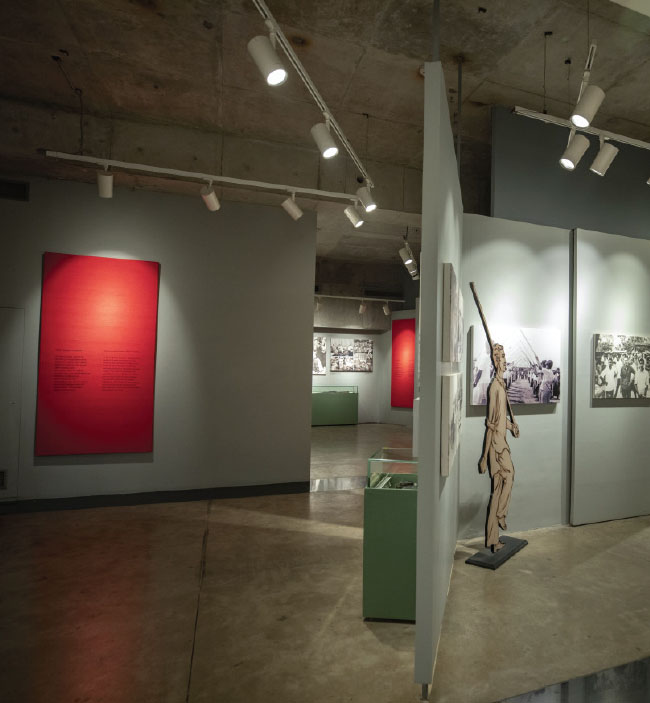

Retail Sector, Receptions, Large shopping malls, Brand sales, Museum / Art Gallery display, etc
Available Finish
White / Black epoxy polyester powder coating.
Product Description
• Adjustable spot light with adapter for installation on track. Luminaire made of die cast aluminium 360° on vertical axis and 90° tilt.
• The body of LED spot light adopt aluminium alloy which has excellent mechanical strength, extruded aluminium for better thermal management.
• Adopting reflector which is with excellent optics effect and excellent spot light effect.
• Two circuit connector, directionally adjustable, convenient installation and maintenance.
• Luminaire provided with built-in-constant current driver with advanced circuit design achieves stable performances and long services span.
• Integral constant current power supply.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-23679-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K
Product Benefits
• Excellent efficiency for high energy savings of up to 80% compared to CFL downlights.
• Replacement of existing CFL downlights with even better performance.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Retail Sector, Receptions, Large shopping malls, Brand sales, Museum / Art Gallery display, etc
Available Finish
White / Black epoxy polyester powder coating.
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|
| 23677 | CCT : 3000K, 4000K, 6500K, 2700K CRI : 90 Optics : 24° ProductFinishColour : Black, White Warranty : 3 Years Controls : Switchable | 23677-BA24°-WW.IES 23677-BA24°-CW.IES 23677-BA24°-NW.IES |
23677-BA24°-WW.PDF 23677-BA24°-CW.PDF 23677-BA24°-NW.PDF |
23677.pdf | 23677.txt |
| 23678 | CCT : 3000K, 4000K, 6500K, 2700K CRI : 90 Optics : 24° ProductFinishColour : Black, White Warranty : 3 Years Controls : Switchable | 23678-BA12°-WW.IES 23678-BA24°-NW.IES |
23678-BA12°-WW.PDF 23678-BA24°-NW.PDF |
23678.pdf | 23678.txt |
| 23679 | CCT : 3000K, 4000K, 6500K, 2700K CRI : 90 ProductFinishColour : Black, White Warranty : 3 Years Controls : Switchable | 23679-BA24°-WW.IES 23679-BA12°-NW.IES |
23679-BA24°-WW.PDF 23679-BA12°-NW.PDF |
23679.pdf | 23679.txt |
Configuration Options
