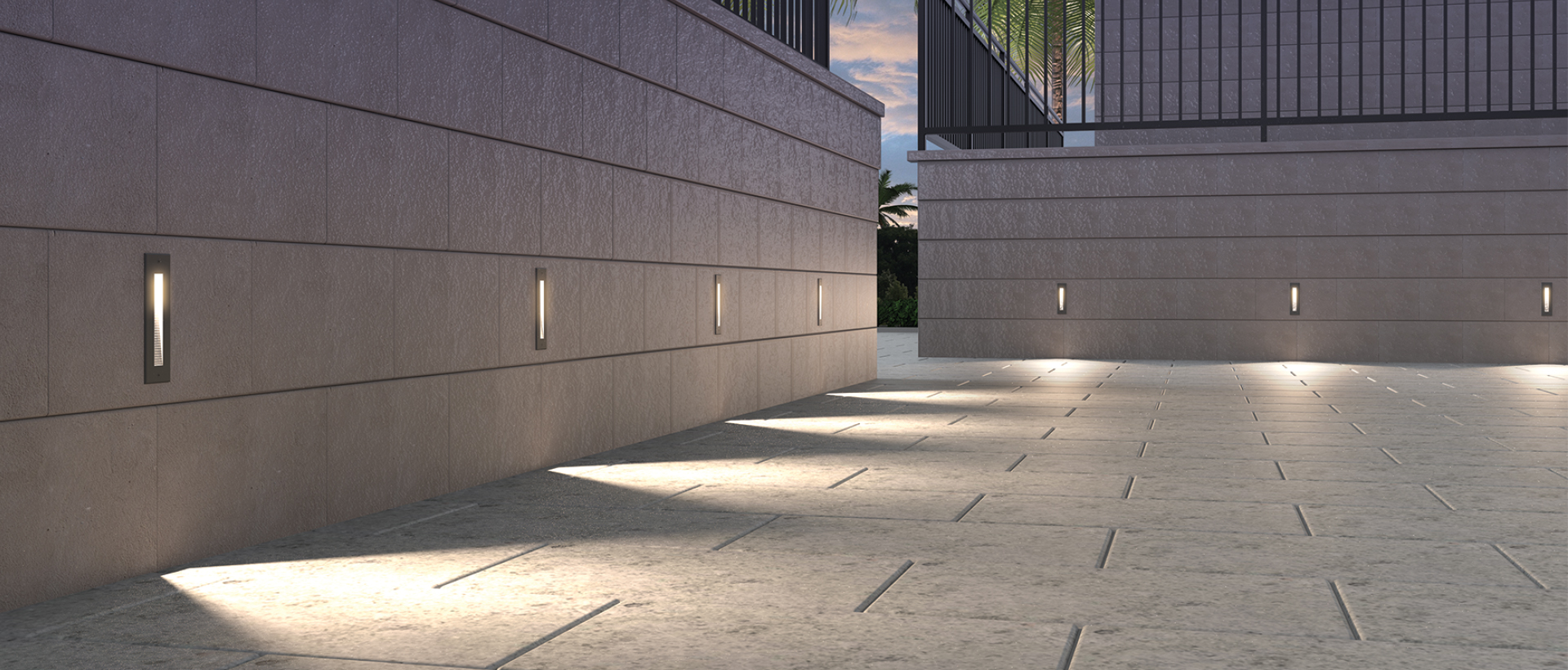

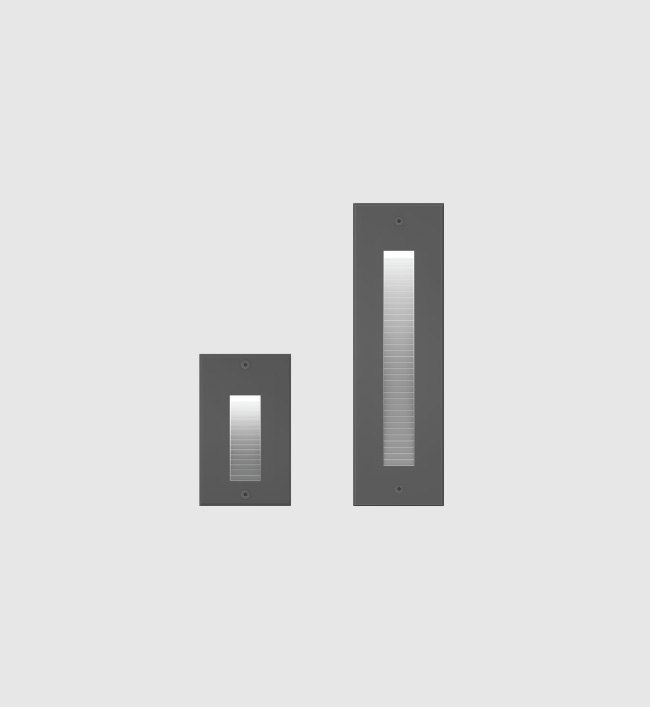

Sudo/Sudo Mini - Asy Vertical Reeded
Sudo represents a perfect combination of sleek and aesthetic fixtures designed to provide uniform illumination for low mounting heights where guidance and security lighting is required. Sustainable LED technology offers durability and optimal light output with low power consumption.
Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive A2 stainless steel fasteners.
• Non yellowing UV stabilized clear acrylic diffuser.
• Silicone gasket.
• ABS plastic installation housing for preparing the recess opening in wall / stairs for flush mounting.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (>90 - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22750-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• High visual comfort
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for pathway.
Areas of Application

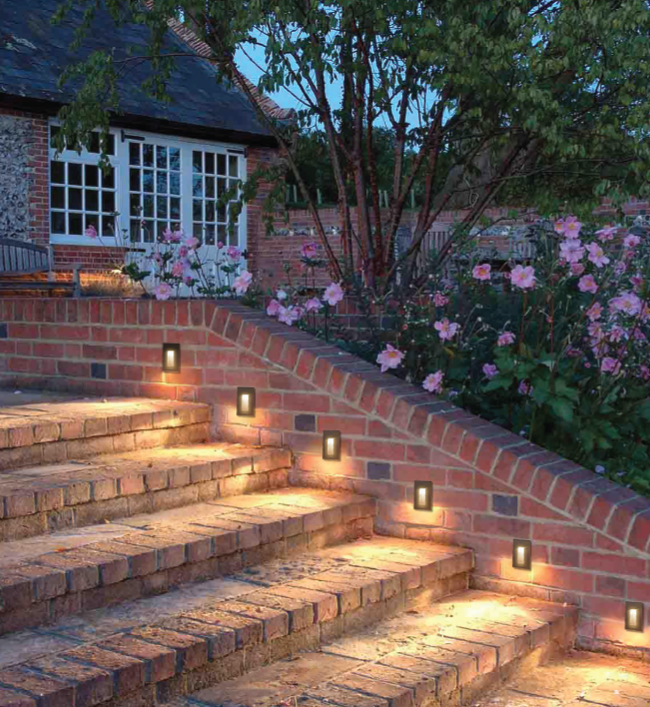

Staircase, Patios, Walkways, Passages, Porches, Entrance & Exits for both Interior & Exterior applications.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Accessory
Recess installation mounting sleeve included.
Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive A2 stainless steel fasteners.
• Non yellowing UV stabilized clear acrylic diffuser.
• Silicone gasket.
• ABS plastic installation housing for preparing the recess opening in wall / stairs for flush mounting.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (>90 - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22750-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• High visual comfort
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for pathway.
Areas of Application
Staircase, Patios, Walkways, Passages, Porches, Entrance & Exits for both Interior & Exterior applications.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Accessory
Recess installation mounting sleeve included.
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

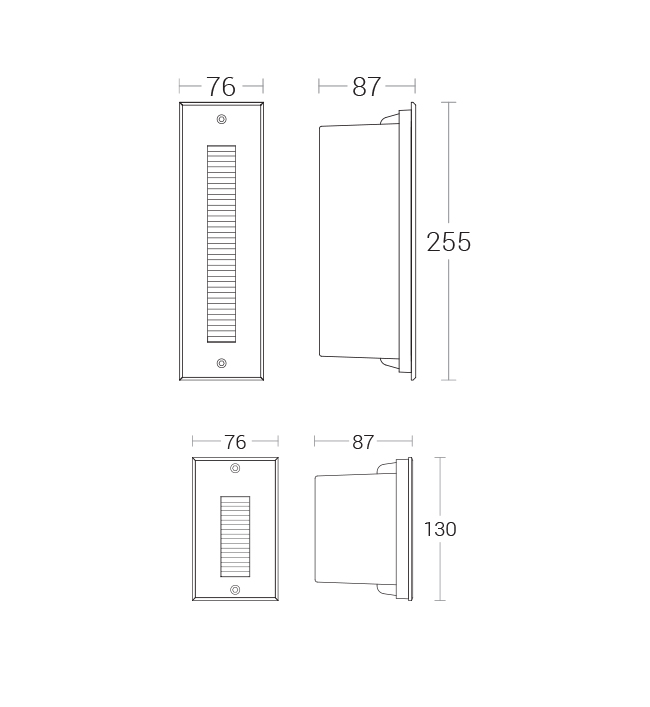

| 22763 | Dimension : 76 x 87 x 255 Wattage : 6W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 ProductFinish : Powder Coating, Marine Grade Powder ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years Diffuser : Clear Acrylic | 22763-BA--2700K.IES 22763-BA--3000K.IES 22763-BA--4000K.IES 22763-BA--5700K.IES |
22763-BA--2700K.PDF 22763-BA--3000K.PDF 22763-BA--4000K.PDF 22763-BA--5700K.PDF |
22763.pdf | 22763.txt |
| 22750 | Dimension : 76 x 87 x 130 Wattage : 3W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 ProductFinish : Powder Coating, Marine Grade Powder ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years Diffuser : Clear Acrylic | 22750-BA--2700K.IES 22750-BA--3000K.IES 22750-BA--4000K.IES 22750-BA--5700K.IES |
22750-BA--2700K.PDF 22750-BA--3000K.PDF 22750-BA--4000K.PDF 22750-BA--5700K.PDF |
22750.pdf | 22750.txt |
Configuration Options
