Deep

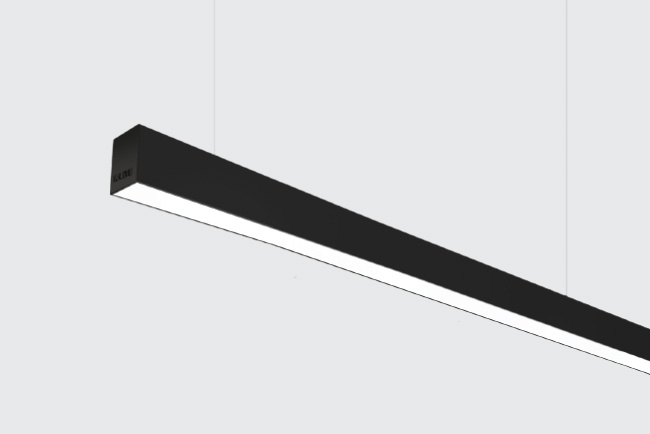

Deep Pendant Direct / Indirect luminaire, offers high quality and easy to install modular lighting solutions. Linear pendant lighting designed for continuous lighting systems. Unobstructed illumination offering coherent solutions suitable for any kind of space.
Our modern,slim profiles and stylish linear design offer excellent direct lighting,exceptional performance and versatility combined with visually comfortable and efficient light.
Product Description
• Luminaire made of extruded aluminium for better thermal management.
• polycarbonate diffuser for optimum optical performance.
• Supplied with standard suspension kit (1metre).
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply.
• Suitable for operation on 240V,50Hz single phase ac supply.
Product Benefits
• Attractive high quality housing.
• Environmental friendly.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application

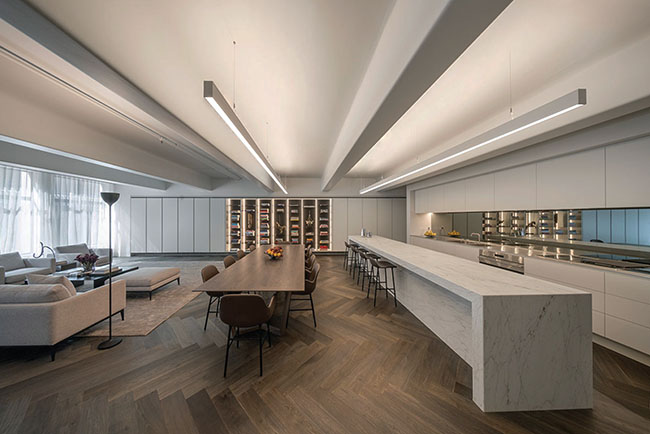

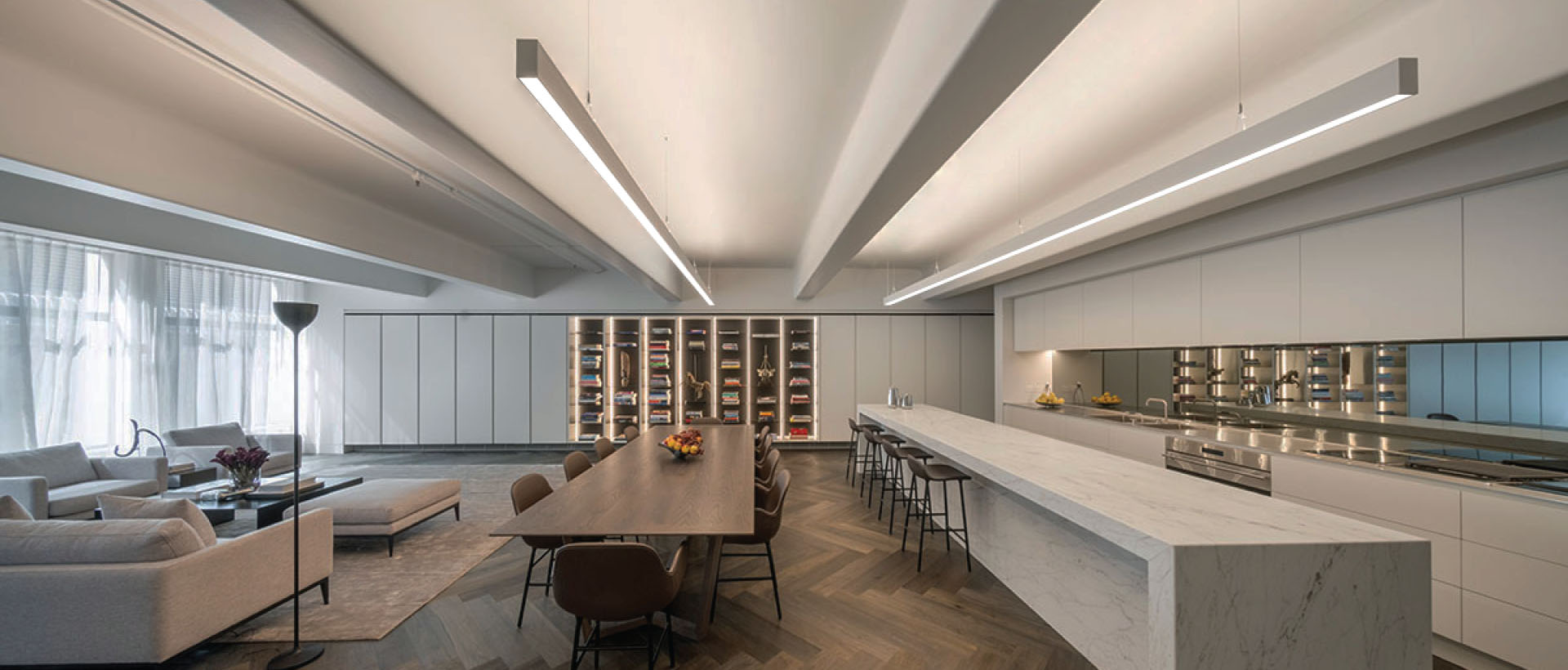

Corporate Offices,Conference rooms,Museums,Retail outlets,Hotels,Restaurants,Receptions,etc.
Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 9016 Traffic White
Our modern,slim profiles and stylish linear design offer excellent direct lighting,exceptional performance and versatility combined with visually comfortable and efficient light.
Product Description
• Luminaire made of extruded aluminium for better thermal management.
• polycarbonate diffuser for optimum optical performance.
• Supplied with standard suspension kit (1metre).
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply.
• Suitable for operation on 240V,50Hz single phase ac supply.
Product Benefits
• Attractive high quality housing.
• Environmental friendly.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.
Area of Application
Corporate Offices,Conference rooms,Museums,Retail outlets,Hotels,Restaurants,Receptions,etc.
Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 9016 Traffic White
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

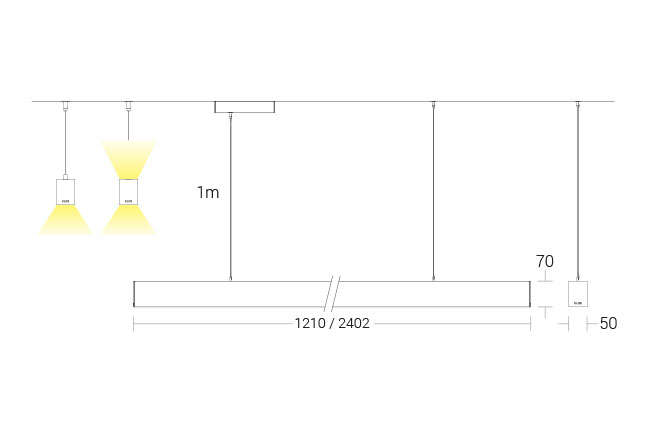

| 23412 | Dimension : 1210 x 50 x 70, 2402 x 50 x 70 Wattage : Upto 40W, Upto 40W & 15W, Upto 80W, Upto 80W & 30W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 Optics : 120° Accessories : 2m Suspension Kit, 1m Suspension Kit ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years LuminaireOption : Direct, Direct & Indirect Mounting : Pendant Mounting Diffuser : PC Opal, PC Prismatic, PC Prismatic & Opal Controls : Switchable | 23412-BA120°-WW.IES 23412-BA120°-CW.IES 23412-BA120°-NW.IES |
23412-BA120°-WW.PDF 23412-BA120°-CW.PDF 23412-BA120°-NW.PDF |
23412.pdf | 23412.txt |
Configuration Options
