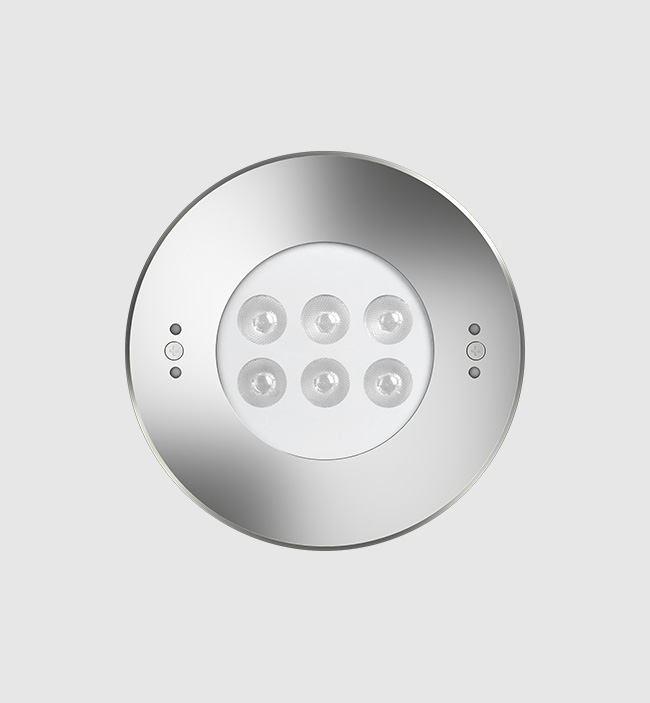

Underwater Luminaire – Recessed Pool LED Luminaires
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture.
Product Description
• Complete housing made of marine grade stainless steel #316
• PCB made of excellent heat conductivity aluminium, coefficient of heat conductivity >2.0w/mk
• Luminaire hard wired for single colour 2 x 1.0sqmm 3 metres water resistant cable.
• Recommended installation depth upto 1 metre below the water surface.
Product Benefits
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Fountains, Swimming pools, Water features and other similar applications.
Product Description
• Complete housing made of marine grade stainless steel #316
• PCB made of excellent heat conductivity aluminium, coefficient of heat conductivity >2.0w/mk
• Luminaire hard wired for single colour 2 x 1.0sqmm 3 metres water resistant cable.
• Recommended installation depth upto 1 metre below the water surface.
Product Benefits
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Fountains, Swimming pools, Water features and other similar applications.
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

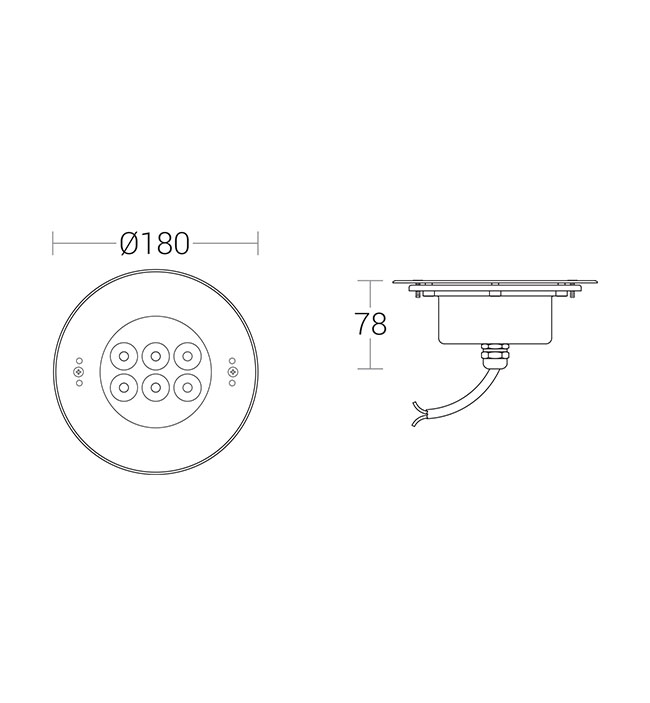

| 26707 | Dimension : Ø180 x 78 Wattage : 18W CCT : RGB CRI : >80 Optics : 30° ProductFinishColour : Stainless Steel Warranty : 2 Years LuminaireOption : 24Vdc Diffuser : Step Tempered Glass T=8mm | 26707.IES | 26707.PDF | 26707.pdf | 26707.txt |
Configuration Options
