Zimba

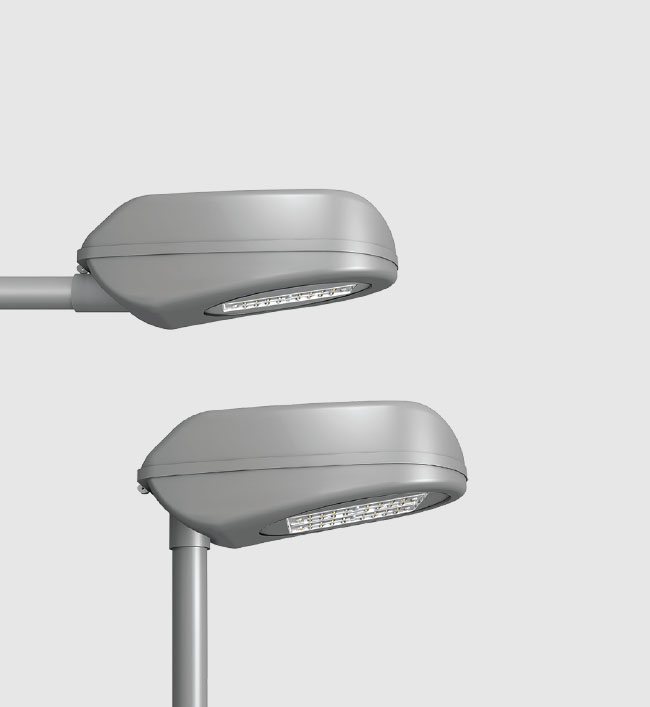

Zimba Street Light luminaire, integral model, horizontal and vertical mounting. Improved long lasting protection against ingress of dust / insects inside optical compartment with top opening facility for maintenance.
Product Description
• Luminaire body and top cover made of pressure die cast aluminium featuring high strength and anti corrosion.
• Integrated with 50W / 100W LED.
• Polycarbonate optical cover
• Suitable for mounting horizontal & vertical on 60mm OD pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-24159-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.
Product Benefits
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Street Lighting, Smaller Roadways, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.
Available Finish
Pure polyester powder coated
Black
Traffic Grey
Product Description
• Luminaire body and top cover made of pressure die cast aluminium featuring high strength and anti corrosion.
• Integrated with 50W / 100W LED.
• Polycarbonate optical cover
• Suitable for mounting horizontal & vertical on 60mm OD pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-24159-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.
Product Benefits
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Street Lighting, Smaller Roadways, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.
Available Finish
Pure polyester powder coated
Black
Traffic Grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

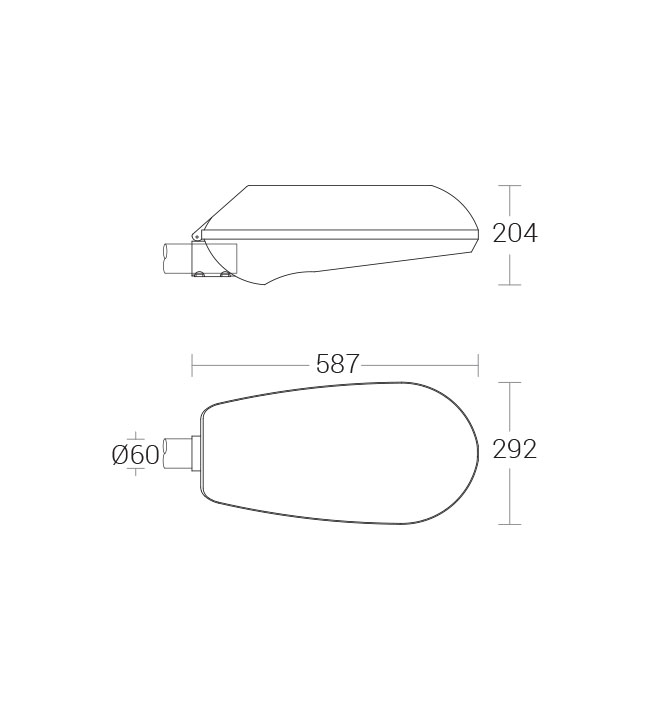

| 24159 | Dimension : 587 x 292 x 204 Wattage : 50W CCT : 3000K, 4000K, 5700K CRI : >70 Optics : Type III ProductFinishColour : Black, Traffic Grey Warranty : 5 Years Diffuser : Polycarbonate Optical Lens | 24159-BATYPEIII-WW.IES 24159-BATYPEIII-CW.IES 24159-BATYPEIII-NW.IES |
24159-BATYPEIII-WW.PDF 24159-BATYPEIII-CW.PDF 24159-BATYPEIII-NW.PDF |
24159.pdf | |
| 24160 | Dimension : 587 x 292 x 204 Wattage : 100W CCT : 3000K, 4000K, 5700K CRI : >70 Optics : Type III ProductFinish : Powder Coating ProductFinishColour : Black, Traffic Grey Warranty : 5 Years Diffuser : Polycarbonate Optical Lens | 24160.pdf |
Configuration Options
