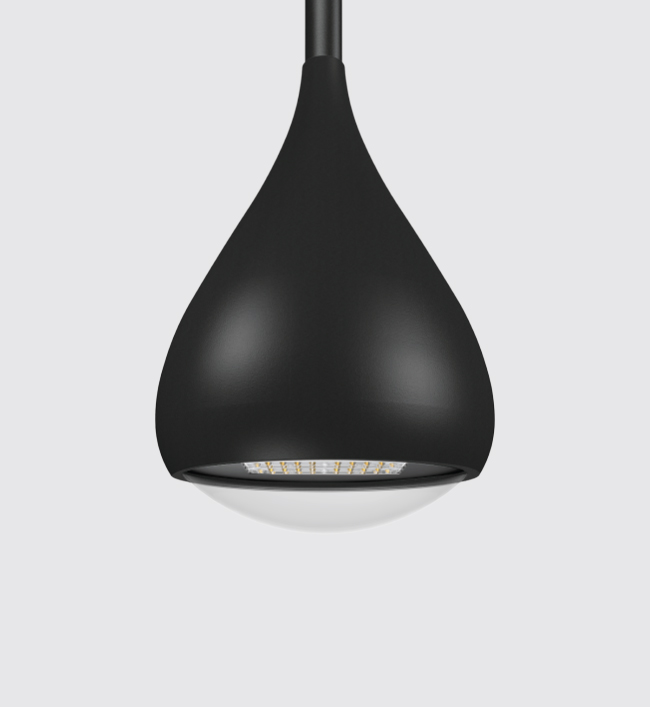

Honeydrop
Street light is a special purpose outdoor luminaire, integral model, totally weather proof aesthetically contoured. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment.
Product Description
• Housing made of die cast aluminium featuring high strength and anti corrosion.
• Convex type clear toughened glass.
• Luminaire integrated with 150W /200W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24941-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K
Product Benefits
• Functionally versatile, strong and stable.
• Environmental friendly, moisture proof, insect free.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
Area of Application

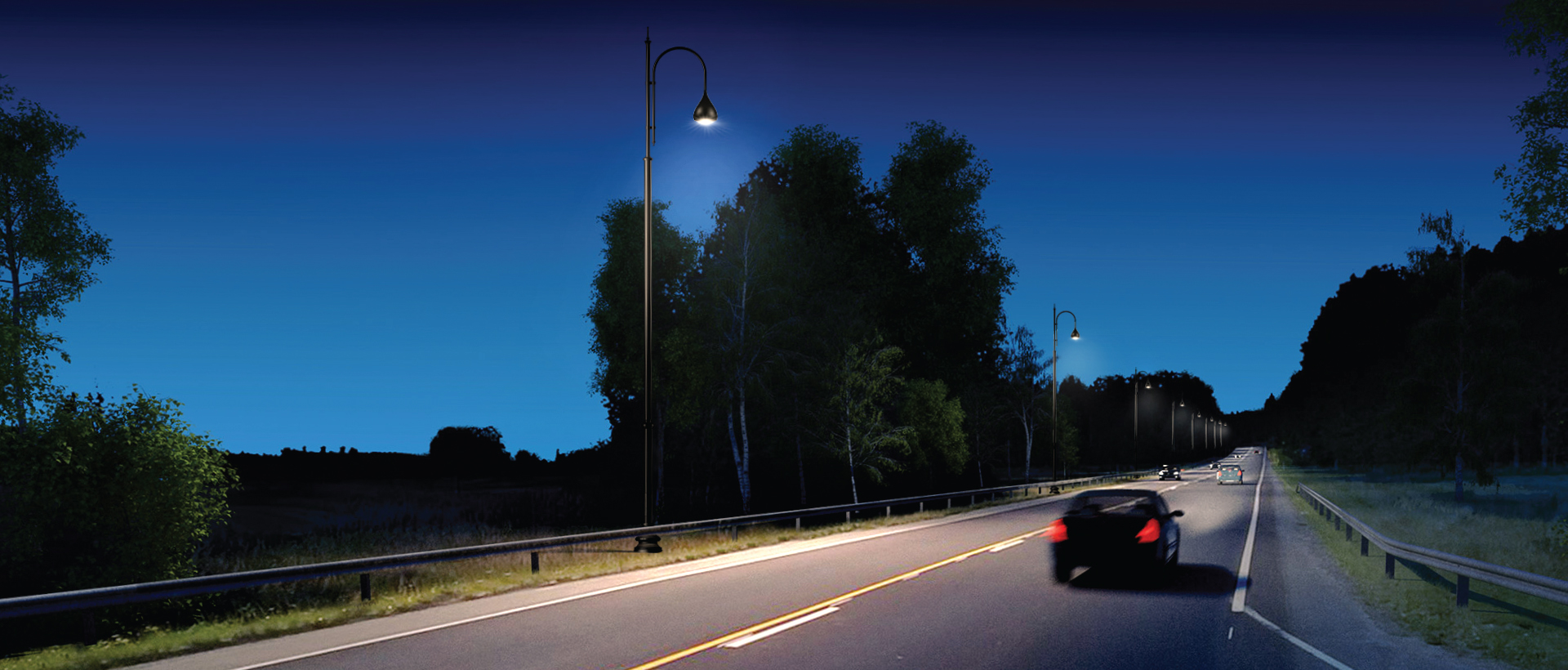

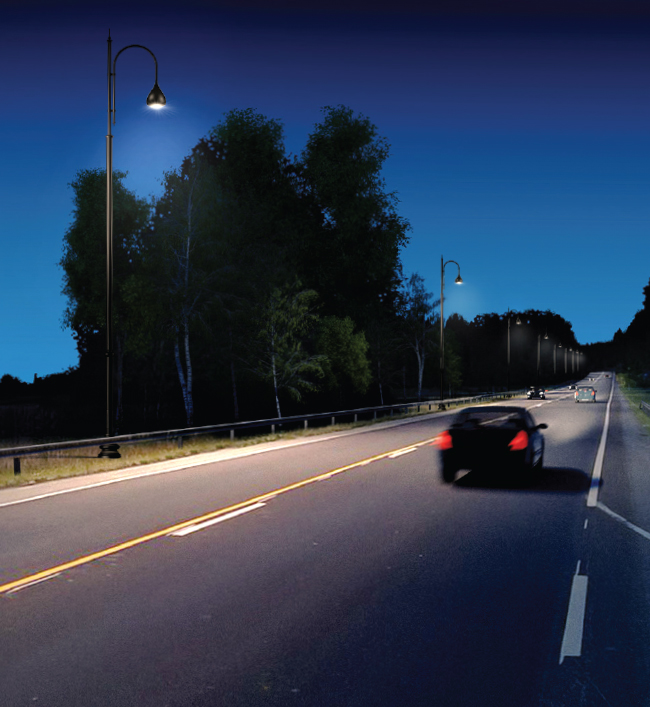

Street Lighting, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Housing made of die cast aluminium featuring high strength and anti corrosion.
• Convex type clear toughened glass.
• Luminaire integrated with 150W /200W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24941-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K
Product Benefits
• Functionally versatile, strong and stable.
• Environmental friendly, moisture proof, insect free.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
Area of Application
Street Lighting, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

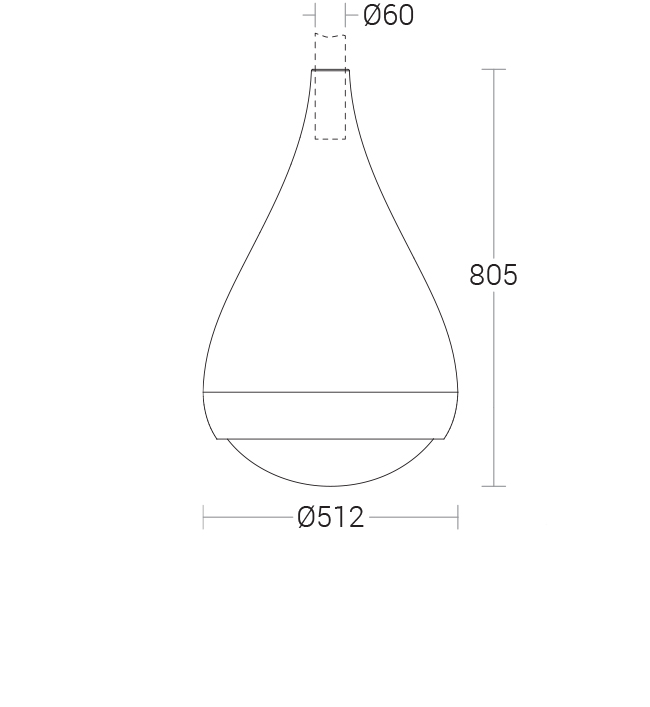

| 24622 | Dimension : Ø512 x 805 LuminaireCoupling : Ø38 with M30 Wattage : 200W CCT : 3000K, 4000K, 5700K CRI : >70 Optics : Type II ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years Diffuser : Clear Toughened Glass | 24622.pdf | |||
| 24941 | Dimension : Ø512 x 805 LuminaireCoupling : Ø38 with M30 Wattage : 100W, 150W CCT : 3000K, 4000K, 5700K CRI : >70 Optics : Type II ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years Diffuser : Clear Toughened Glass | 24941.pdf | 24941.txt |
Configuration Options
