Navya
“Navya” pathway luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.
Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 60W / 120W LED.
• Suitable for mounting on 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22565-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application

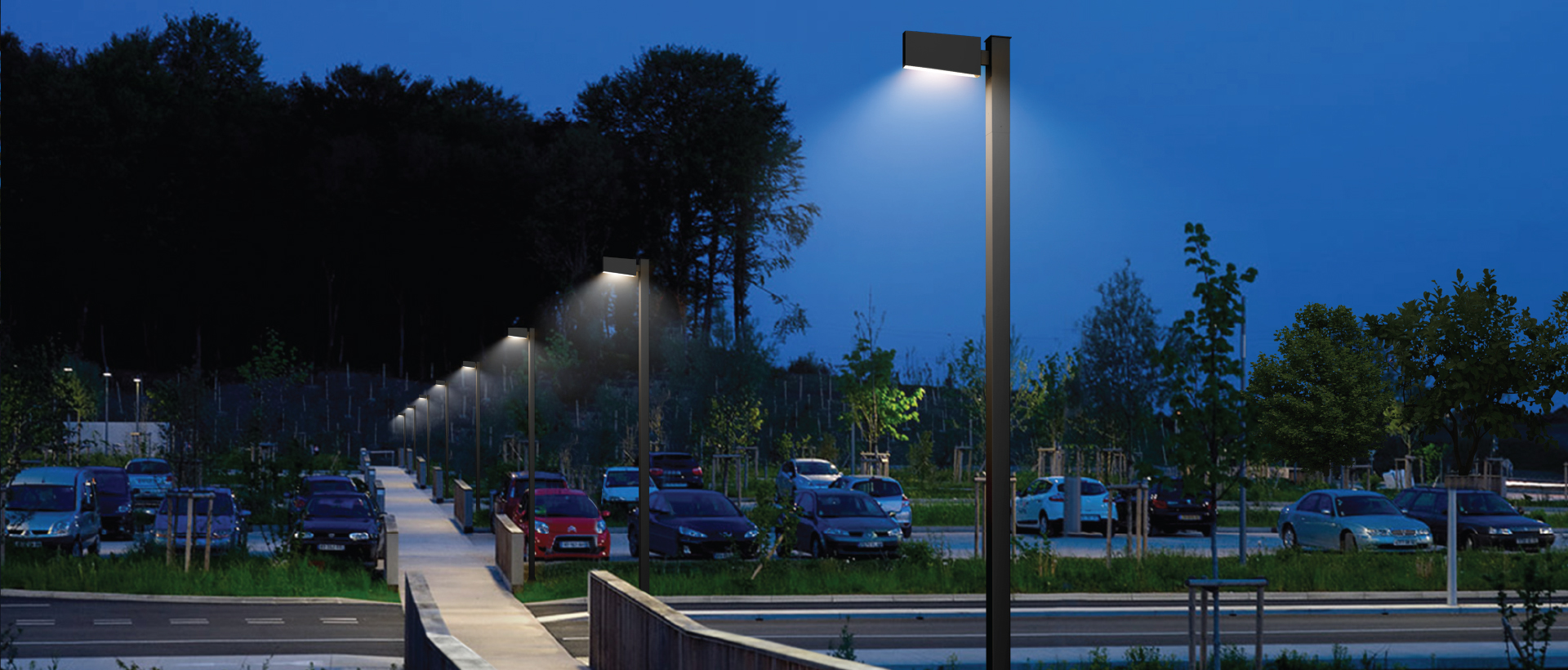

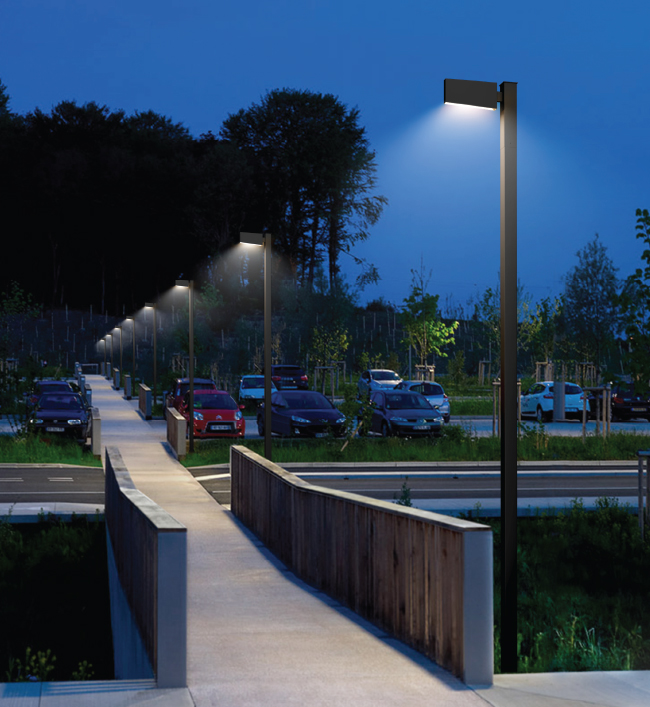

Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 60W / 120W LED.
• Suitable for mounting on 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22565-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

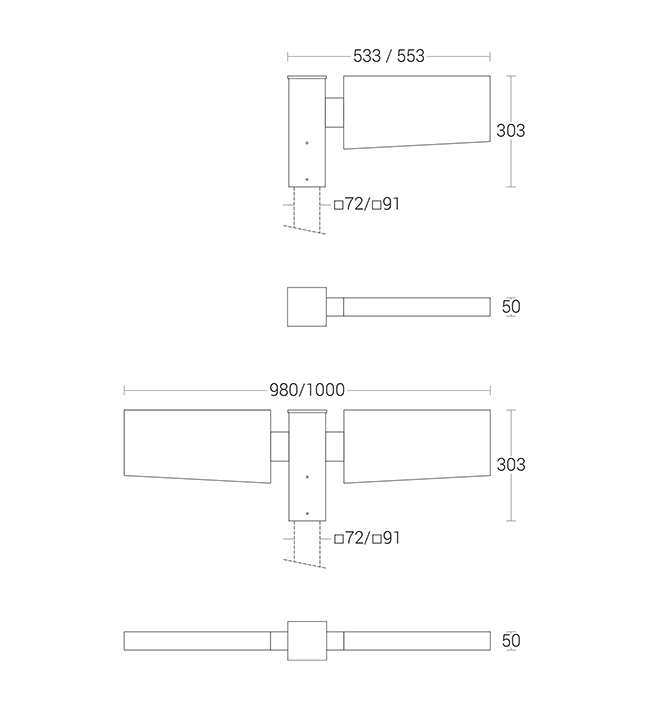

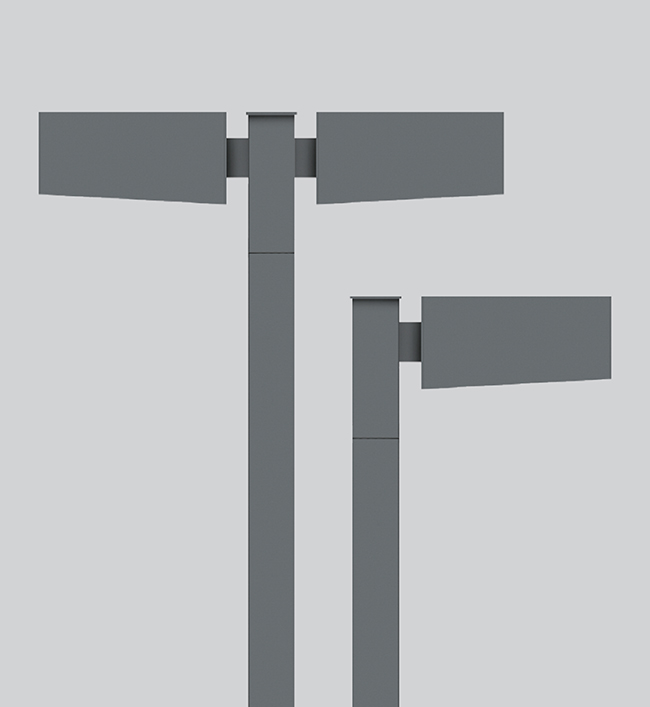

| 22565 | Dimension : 533 x Sq.80 x 303, 553 x Sq.100 x 303, 980 x Sq.80 x 303, 1000 x Sq.100 x 303 LuminaireCoupling : Sq.72 - Ht.140mm, Sq.91 - Ht.140mm PoleBracketArm : Single Arm, Double Arm Wattage : 60W, 120W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 Optics : Type III Medium ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years |
Configuration Options
