Pelican Fort Mini
Pelican Fort Mini pathway luminaires is a special purpose outdoor luminaire, integral model, totally weather proof aesthetically contoured. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment with top opening facility for maintenance.
Product Description
• Luminaire comprises of specially contoured spun aluminium body featuring high strength and anti corrosion.

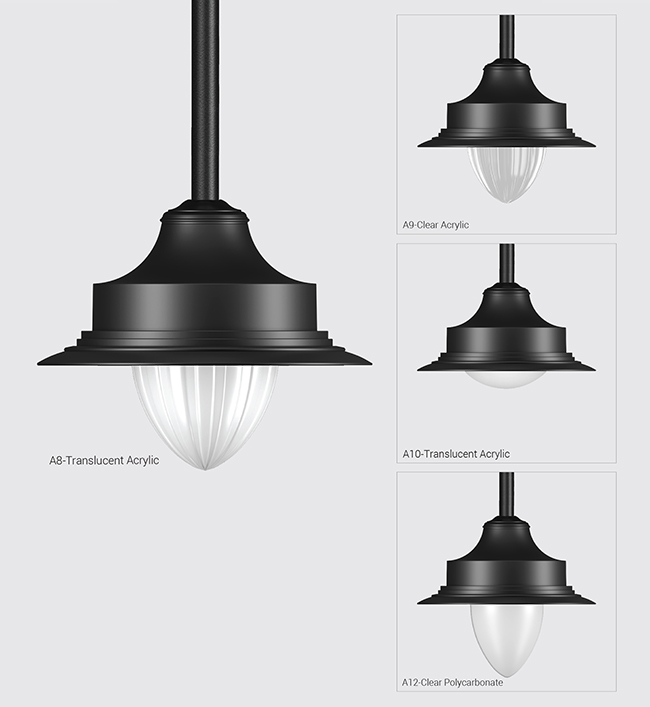

• Non yellowing, UV stabilised, translucent acrylic diffuser / Clear acrylic diffuser / Clear polycarbonate diffuser.
• EPDM gasket.
• Luminaire integrated with 30W / 50W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-21813-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption
Area of Application
Gardens, Smaller Roadways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Luminaire comprises of specially contoured spun aluminium body featuring high strength and anti corrosion.
• Non yellowing, UV stabilised, translucent acrylic diffuser / Clear acrylic diffuser / Clear polycarbonate diffuser.
• EPDM gasket.
• Luminaire integrated with 30W / 50W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-21813-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption
Area of Application
Gardens, Smaller Roadways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

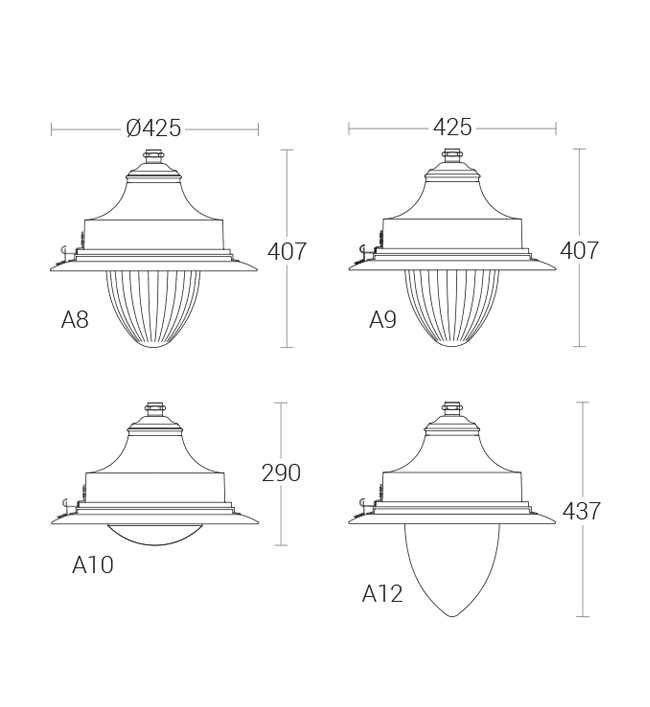

| 21813 | Dimension : Ø425 x 407, Ø425 x 437, Ø425 x 290 LuminaireCoupling : Ø38 with M30, Ø50 with M30, Ø60 with M30, Ø88.9 with M30 Wattage : E27 holder, 30W, 50W CCT : 2700K, 3000K, 4000K, 5700K, No Colour CRI : No CRI, >70 Optics : No Optics, Symmetrical, Type II, Type III, Type IV ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years Diffuser : A8 - Translucent Acrylic, A9 - Clear Acrylic, A12 - Clear Polycarbonate, A10 - Translucent Acrylic | 21813.pdf | 21813.txt |
