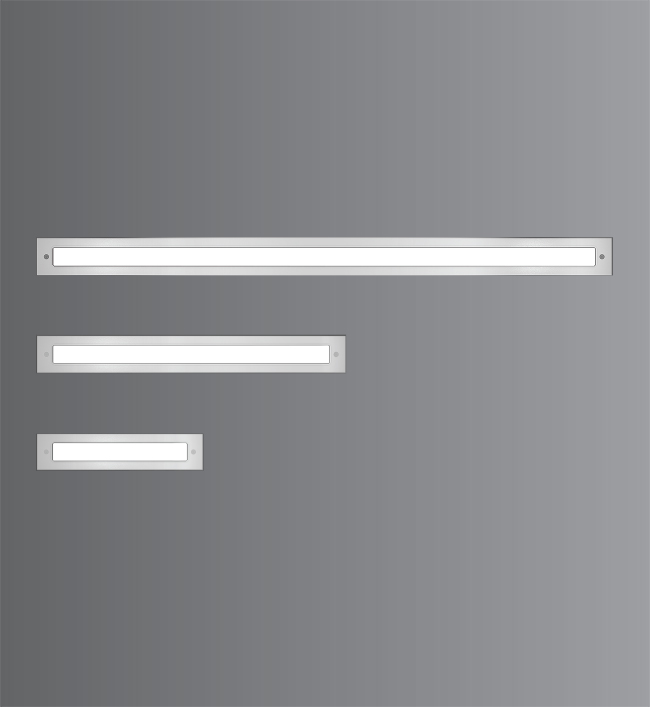

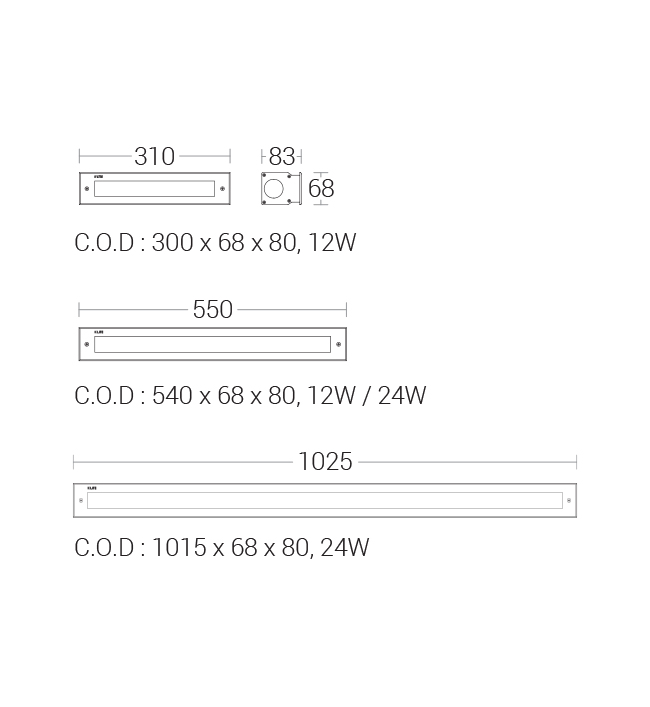

Linear recess mounted LED luminaires suitable for floor and wall applications which adds elegance to commercial, historical and modern architecture. Three different lengths are provided allowing the luminaire installation to be tailored as per the structure.

MATERIAL
Body : Extruded Aluminium Alloy
& Stainless steel 316 front plate 3mm thickness
Impact Protection : IK05
Ingress Protection : IP67
Diffuser : Safety 6mm thickness toughened glass (Diffused / Lens)
Mounting : Recess mounting sleeve made of aluminium profile

ELECTRICAL
Driver : Standard
Power Supply : Non-Integral

PRODUCT CONFIGURATIONS
Optical Beam Angle : 100°
CCT : 2700K / 3000K / 4000K / 5700K

AREA OF APPLICATION

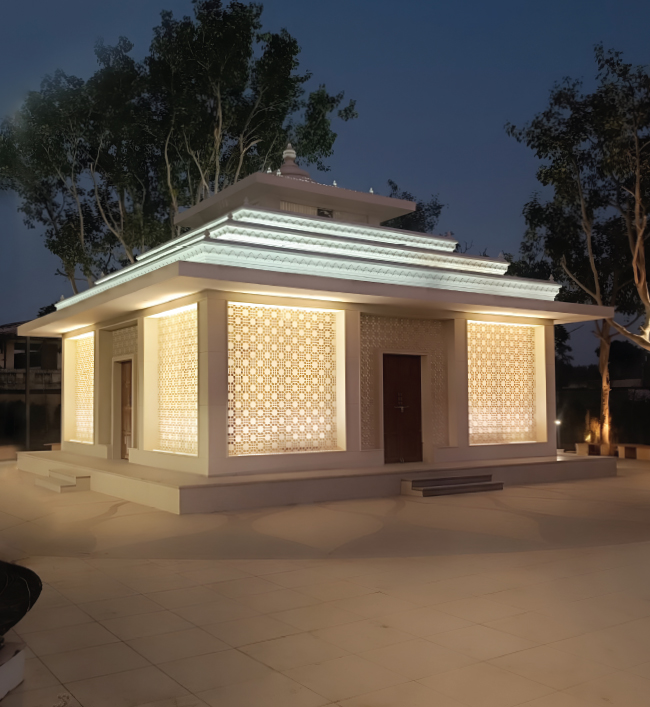

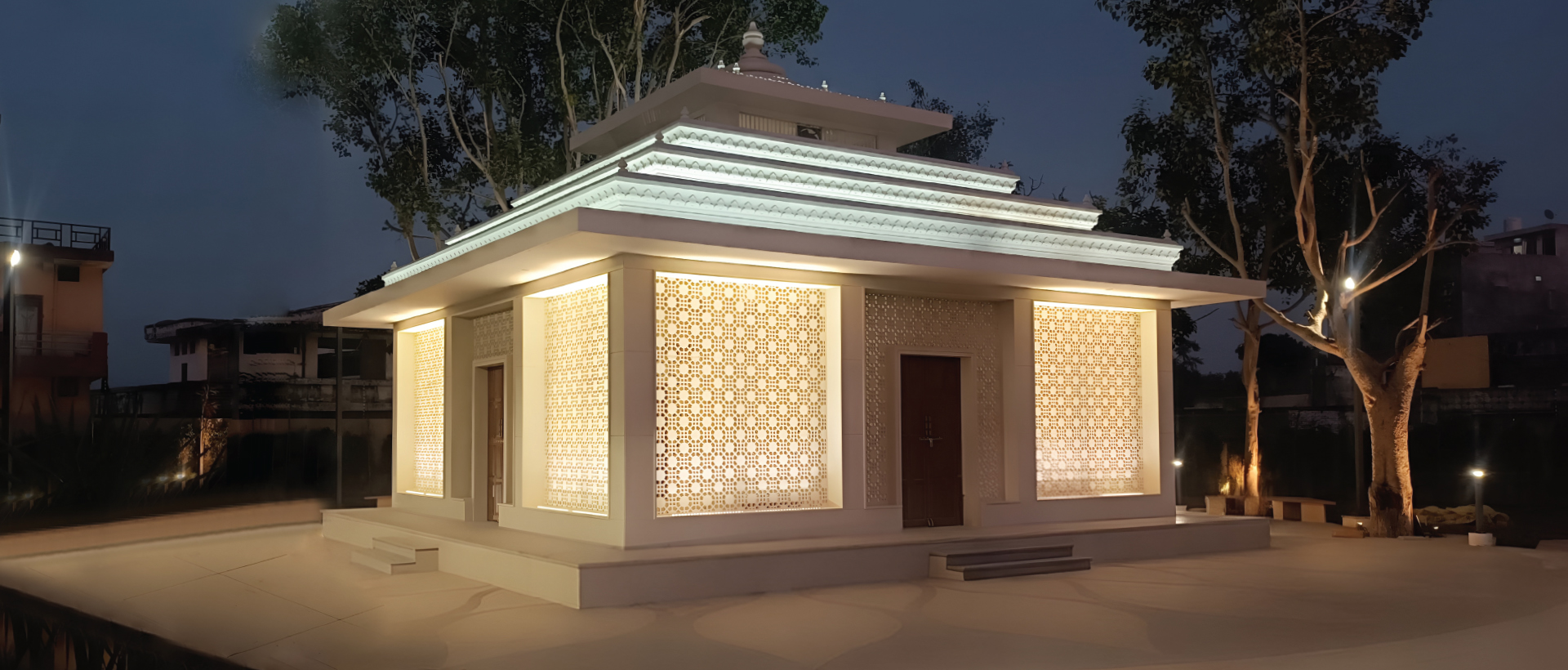

Building Facade, Walk ways, Building mounted focal points, Bridges, Landscapes, Architectural elements.

ACCESSORY
• A separate IP67 rated connector supplied for a secure connection.
• Power supply unit of 24V dc required for the luminaire.
• The power supply units are also suitable for the operation of several LED luminaires. In this case total wattage of the LED luminaires must not
exceed the wattage of power supply.

INSTALLATION
Possible in both horizontal and vertical mounting position. Luminaire must not be used for installation where the fixture is exposed to a horizontal strain due to braking, acceleration and change of direction.
