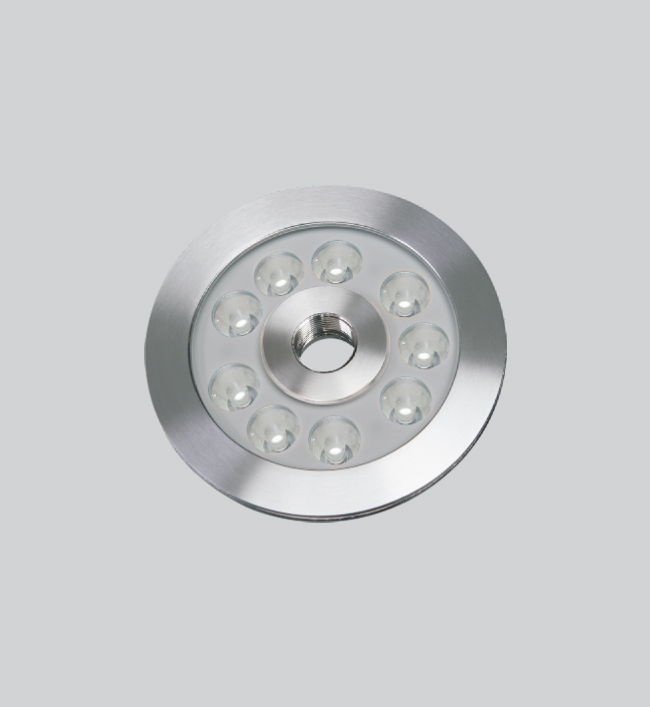

Underwater Luminaire – LED Fountain Light
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture.
Product Description
• Luminaire housing made of marine grade stainless steel #316.
• Silicone gasket. Stainless steel screws.
• Clear toughened glass of 7.75mm thickness.
• Optical lens, efficiency >85%.
• Luminaire hard wired for single colour 2 x 1.0mm2 / RGB 4 x 1.0mm2
/ RGBW 5 x 1.0mm2 3 metres water resistant
• Recommended installation depth upto 1 metre below the water surface
• Supplied with mounting sleeve for preparing recessed opening in ground.
• Temperature of water between -20°C ~ +40°C.
Area of Application

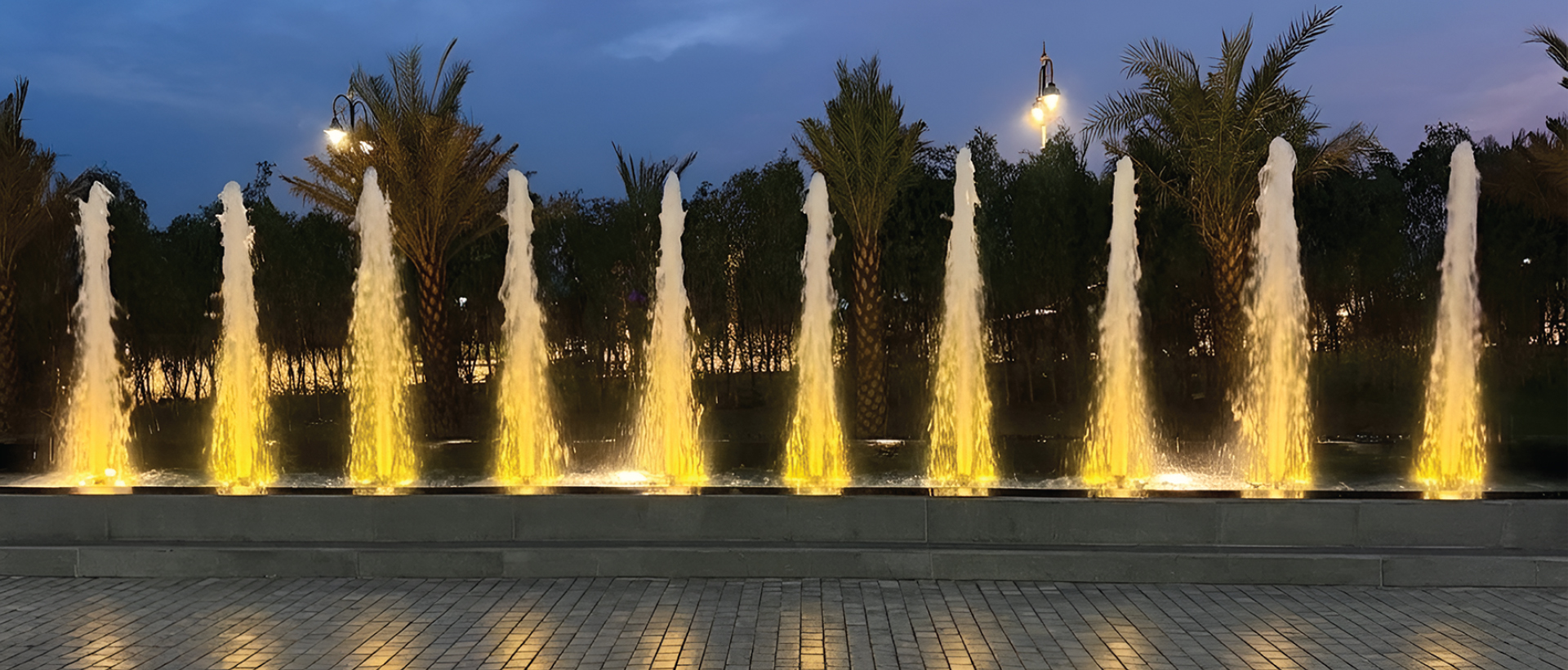

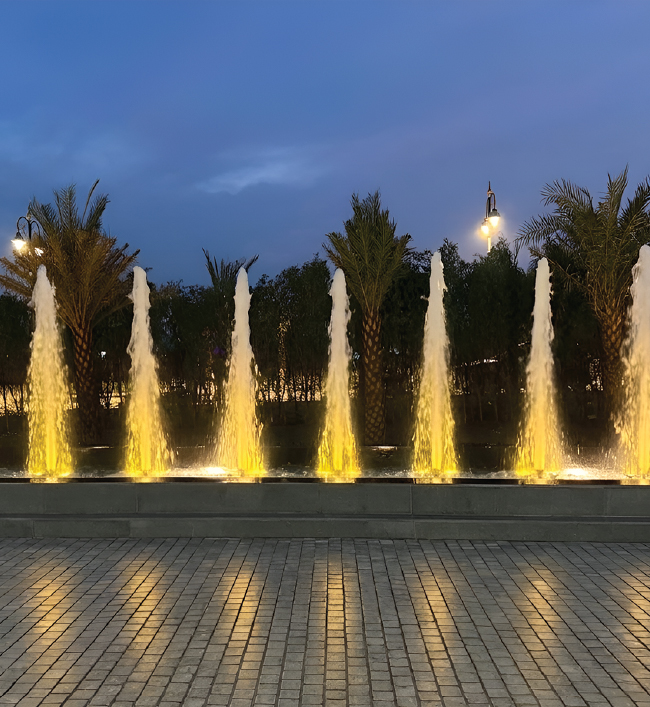

Fountains, Swimming pools, Water features and other similar applications.
Product Description
• Luminaire housing made of marine grade stainless steel #316.
• Silicone gasket. Stainless steel screws.
• Clear toughened glass of 7.75mm thickness.
• Optical lens, efficiency >85%.
• Luminaire hard wired for single colour 2 x 1.0mm2 / RGB 4 x 1.0mm2
/ RGBW 5 x 1.0mm2 3 metres water resistant
• Recommended installation depth upto 1 metre below the water surface
• Supplied with mounting sleeve for preparing recessed opening in ground.
• Temperature of water between -20°C ~ +40°C.
Area of Application
Fountains, Swimming pools, Water features and other similar applications.
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

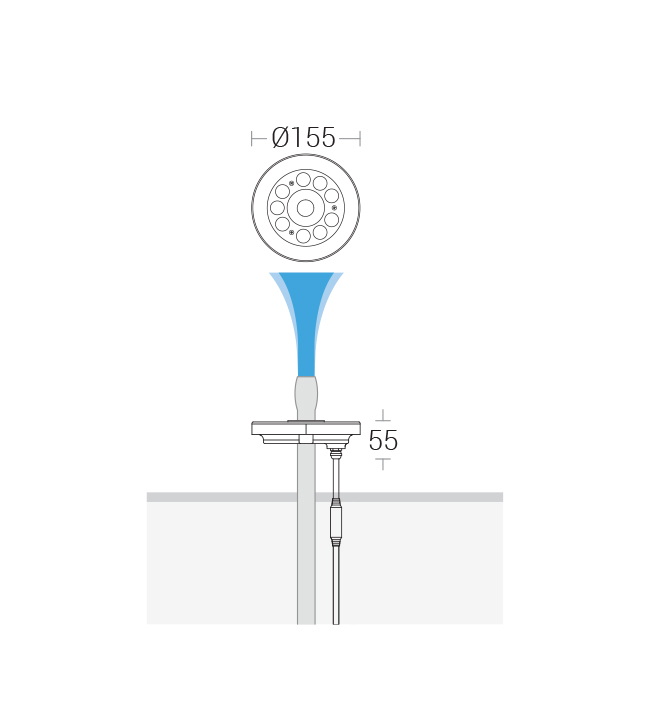

| 22559 | Dimension : Ø155 x 55 Wattage : 18W CCT : 3000K, RGB CRI : >80, No CRI Optics : 20° ProductFinishColour : Stainless Steel Warranty : 2 Years LuminaireOption : 12Vdc Diffuser : Clear Toughened Glass |
Configuration Options
