Blossom Mini
Elegantly crafted for superior performance, this lantern features a translucent diffuser that provides soft, symmetrical, and glare-free illumination for exceptional visual comfort. Its premium, weather-resistant construction ensures outstanding durability and long-lasting reliability, preserving its initial performance and aesthetic appeal throughout the entire service life of the installation.
Product Description
• The luminaire made of spun aluminium top cover.
• Turn type polycarbonate locking system for easy maintenance.
• Lamp compartment encased in translucent acrylic diffuser.
• Luminaire integrated with 12W LED.
• Pressure die cast aluminium base of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-21800-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• Elegant, Robust design
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
Area of Application

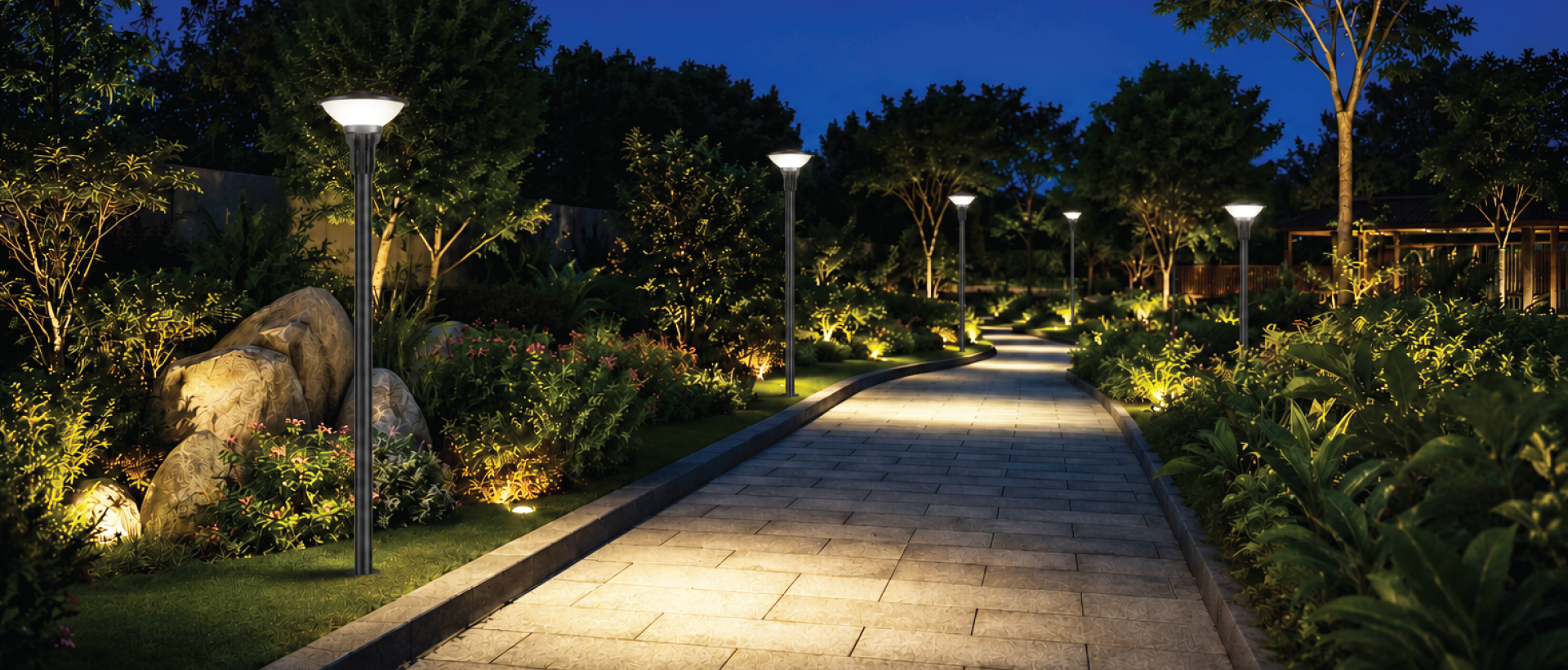

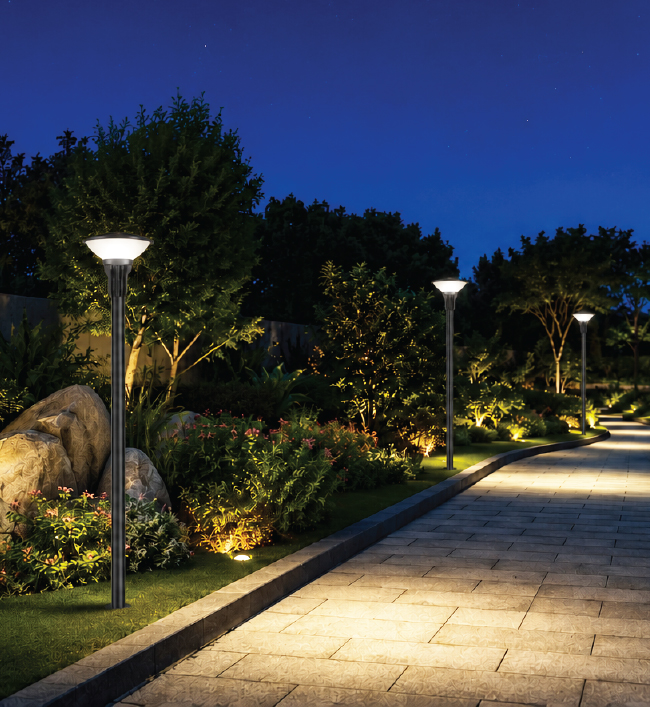

Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• The luminaire made of spun aluminium top cover.
• Turn type polycarbonate locking system for easy maintenance.
• Lamp compartment encased in translucent acrylic diffuser.
• Luminaire integrated with 12W LED.
• Pressure die cast aluminium base of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-21800-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• Elegant, Robust design
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
Area of Application
Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

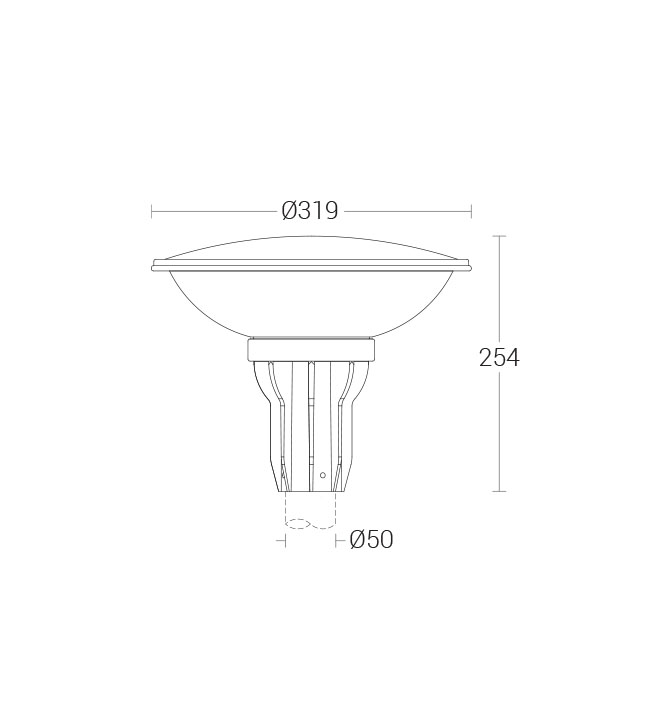

| 21800 | Dimension : Ø319 x 254 LuminaireCoupling : Ø50 - Ht.60mm Wattage : 12W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years Diffuser : Translucent Acrylic | 21800.pdf | 21800.txt |
Configuration Options
