Nebula Micro
LED compact spot light luminaires designed to provide directional light.The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall, under a ceiling or on a column.
Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.

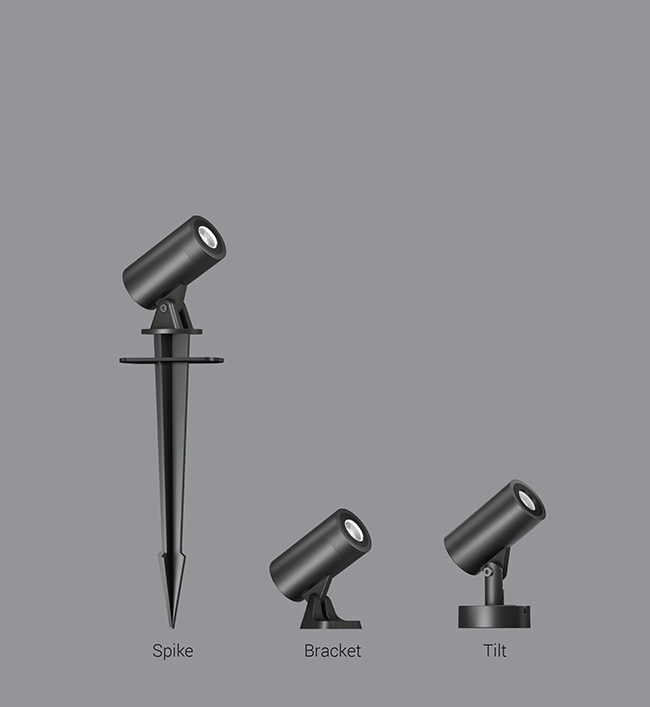

• Mounting earth spike or die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90° & Rotational 360° for Tilt.
• Luminaire supplied with 0.5 metre cable length.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22544-CCT (Colour Temperature)
• Available CCT : 2700K / 3000K / 4000K / 5700K
Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application

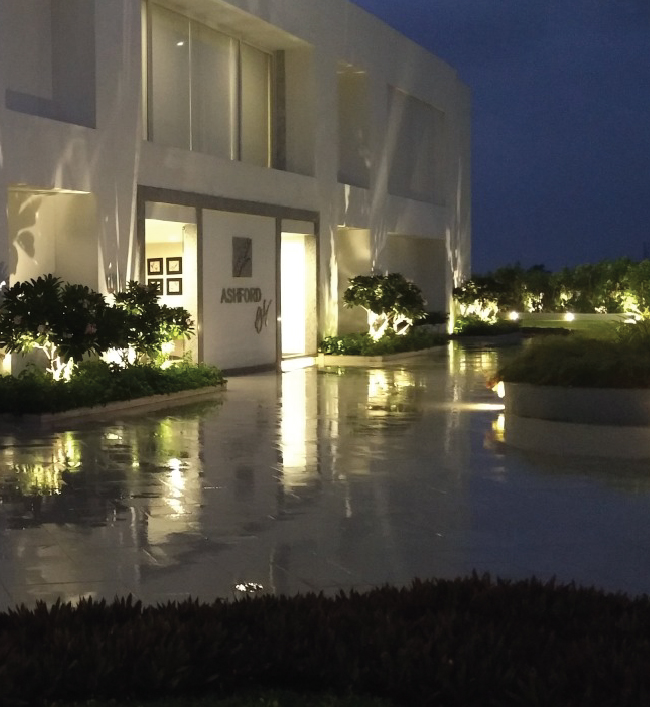

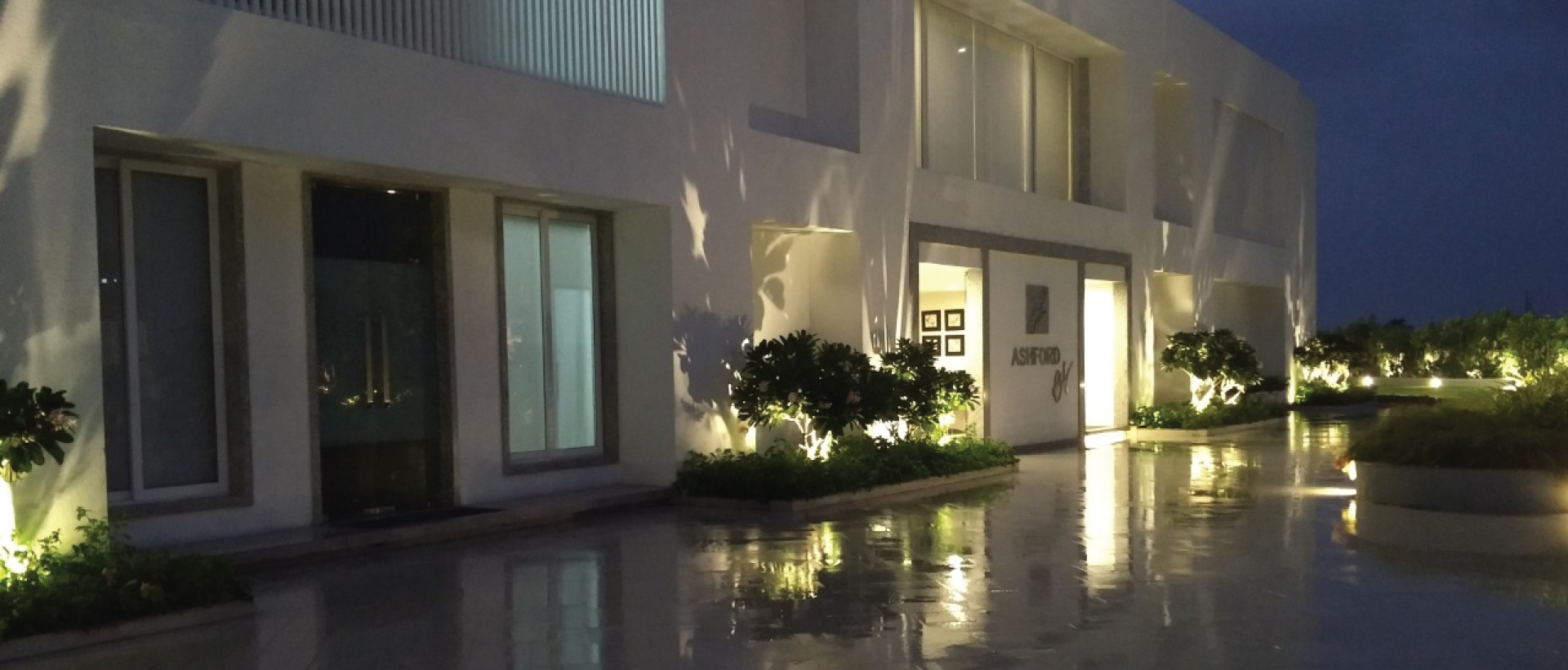

Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting earth spike or die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90° & Rotational 360° for Tilt.
• Luminaire supplied with 0.5 metre cable length.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22544-CCT (Colour Temperature)
• Available CCT : 2700K / 3000K / 4000K / 5700K
Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

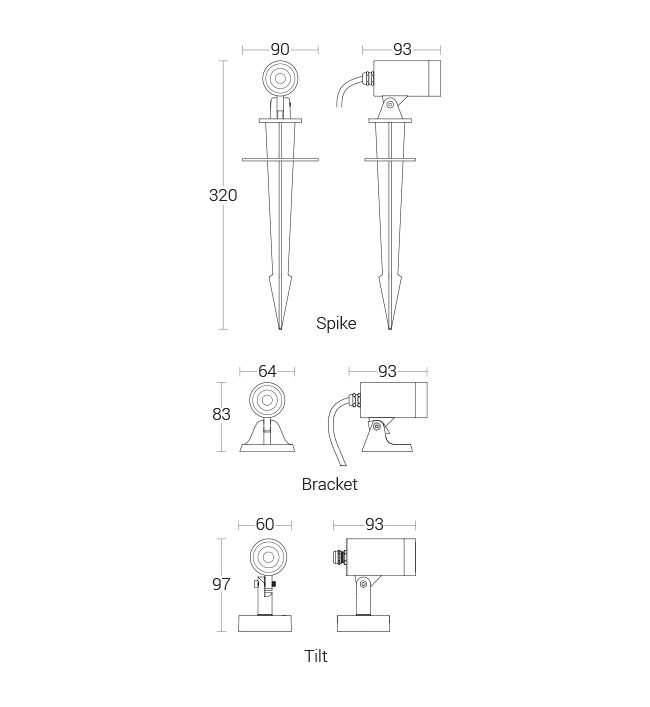

| 22544 | Dimension : 93 x 90 x 320, 93 x 64 x 83, 93 x 60 x 97 Wattage : 3W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 Optics : 24°, 12°, 40° Accessories : No Accessories, Visor, Snoot, Honeycomb Louvre, VisorHoneycomb Louvre, SnootHoneycomb Louvre ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years LuminaireOption : No Accessories, ID 28275 - Tree Strap Mounting : Spike Mounting, Bracket Mounting, Tilt Mounting Diffuser : Clear Toughened Glass | 22544.pdf | 22544.txt |
