Elina

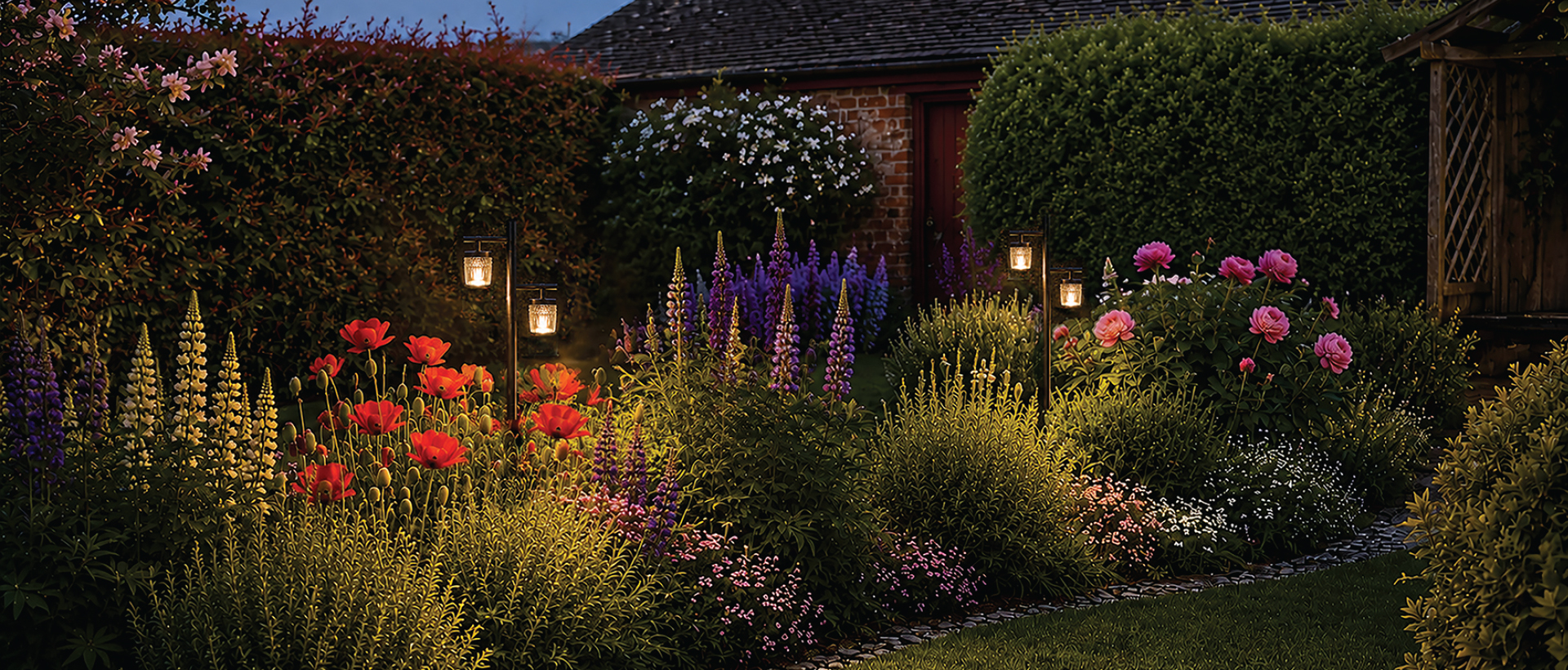

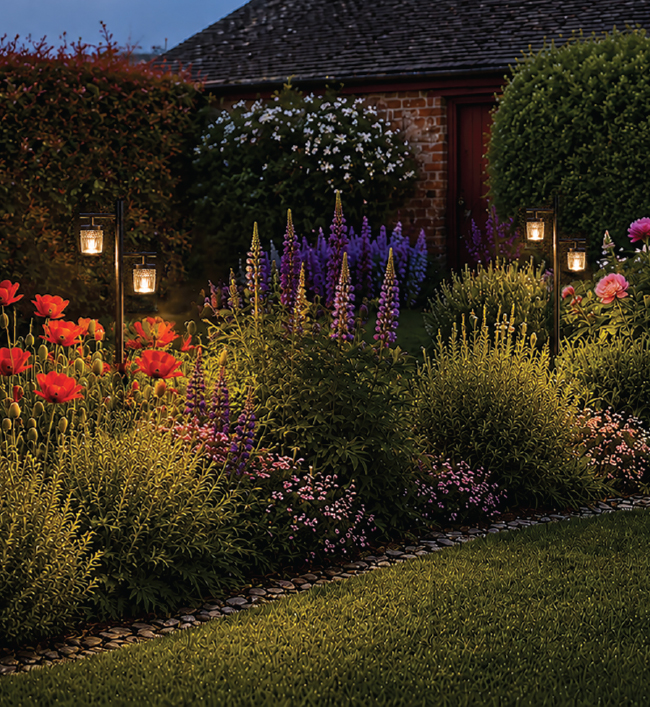

An eco-friendly LED garden and pathway luminaire designed for sustainability and superior visual comfort. With smooth light distribution and glare control, it creates a pleasant and safe lighting environment for outdoor pathways and landscaped areas.

Material
Body : Extruded aluminium tube (grade 6063)
Diffuser : PMMA
Ingress Protection : IP65
Mounting : Pressure die cast aluminium mounting base

Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc

Product Configurations
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 120°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area Of Application
Suitable for low traffic areas

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
22569

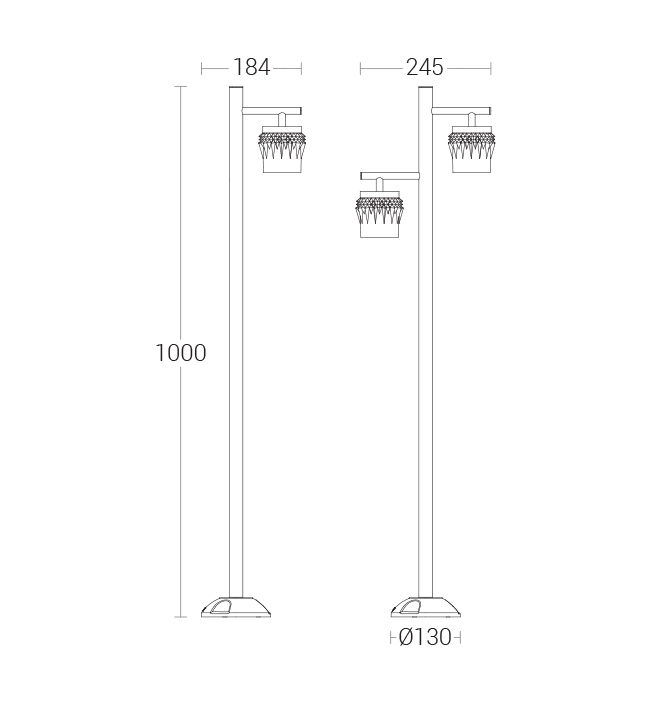

Dimension : 184 x Ø130 x 1000, 245 x Ø130 x 1000
Wattage : 1 x 6W, 2 x 6W
CCT : 3000K, 4000K, 5700K, 2700K
CRI : >80
ProductFinish : Powder Coating
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 3 Years
22569.pdf 22569.txt
24Vdc product. Order required driver and accessories
