Torch
Compact and efficient decorative pendant / ceiling mounted down lighters. High protection class & lumen output makes it versatile solution for both indoor & outdoor applications.

MATERIAL
Body : Extruded aluminium tube (grade 6063)
Diffuser : Clear toughened glass
Impact Protection : IK06
Ingress Protection : IP65
Gasket : Silicone
Mounting : Surface / Pendant

ELECTRICAL
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz

PRODUCT CONFIGURATIONS
Wattage : 6W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H

AREA OF APPLICATION
Corporate Offices, Malls, Restaurants, Receptions, Corridors, Commercial & Business Centers, etc.

AVAILABLE FINISH
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
24035

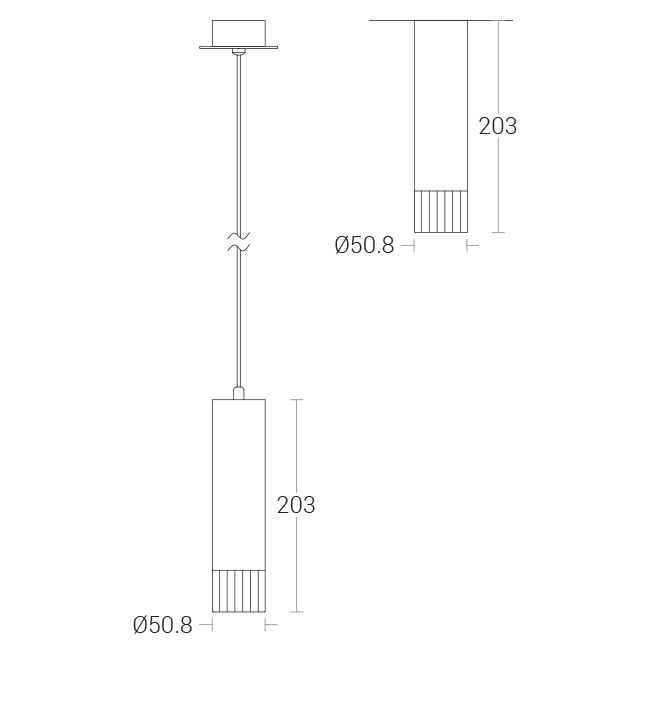

Dimension : Ø51 x 203, Ø100 x 1000
Wattage : 6W
CCT : 3000K, 4000K, 6500K, 2700K
CRI : 90
Optics : 12°, 24°, 40°
Accessories : No Accessories, 1m Suspension Kit
ProductFinish : Powder Coating
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 3 Years
Mounting : Surface Mounting, Pendant Mounting
Diffuser : Clear Toughened Glass
24035.pdf 24035.txt
