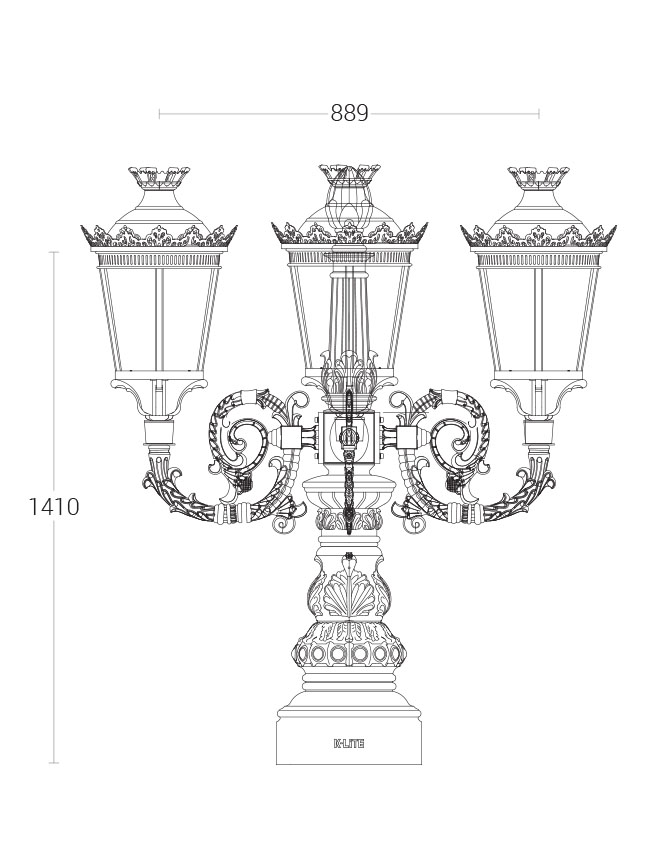

Scorpio Celosia
The Decorative Pillar Light enhances pillars, entrances, gateways and boundary walls with functional illumination and a distinctive decorative appearance. It complements the surrounding architecture, adding character to residential, commercial and landscaped spaces. Our poles can be designed with single or multi-arm brackets to accommodate one or more luminaires, depending on the lighting requirements and layout. This flexibility allows the arrangement to suit the scale, architectural style and visual character of each project.

Product Description
• Pillar light made of gravity die cast aluminium alloy can achieve high strength and corrosion resistance in various atmospheric conditions.
• Pole design parameters vary depending on the type of bracket and loading factor.
• All pole sections are welded using special v groove technique by certified welders using high end MIG welding processes.
• Post top luminaire suitable for mounting on 38 / 50 / 60mm OD pipe.
• An external junction box can be provided on request at an additional cost.
• The pole’s base plate features foundation bolt holes for secure anchoring to the concrete foundation during installation.
• Base plate made of steel grade E250 & foundation bolt of grade 4.6
• CE Conformity mark

Product Benefits
• Quick installation and low assembly costs.
• Excellent corrosion resistant.
• A wide range of bracket options to meet various lighting requirements.
• Functionally versatile, strong and stable.
• Long life span with very low maintenance.

Area of Application
Entrance pillars and gateways, Boundary walls and compound pillars, Residential villas and housing communities, Gardens and landscaped spaces, Hotels and resorts, Commercial and institutional campuses, Heritage properties and public buildings.

Installation
Surface mounted with base plate and fitted on a pre formed foundation.

Available Finish
Coated with zinc rich primer and finished using environmentally stable polyurethane based paint / Pure polyester powder coated of desired colour.
• RAL 9004 Black
• RAL 7016 Anthracite grey
• Graphite grey

Note : The ID is only for pole & bracket, luminaire to be ordered separately


CodeHeightBracketArmFoundation
12082-088-G44-DA
12082-088-G44-DP
12082-088-G44-FA
Configuration Options +
Scorpio Celosia
