Navira Mini 2.0
“Navira Mini 2.0” pathway luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances
through the lifetime of the installation. Product offered asymmetrical light distribution.
Product Description
• Luminaire made of aluminium with non corrosive stainless steel fasteners.
• Clear toughened glass.

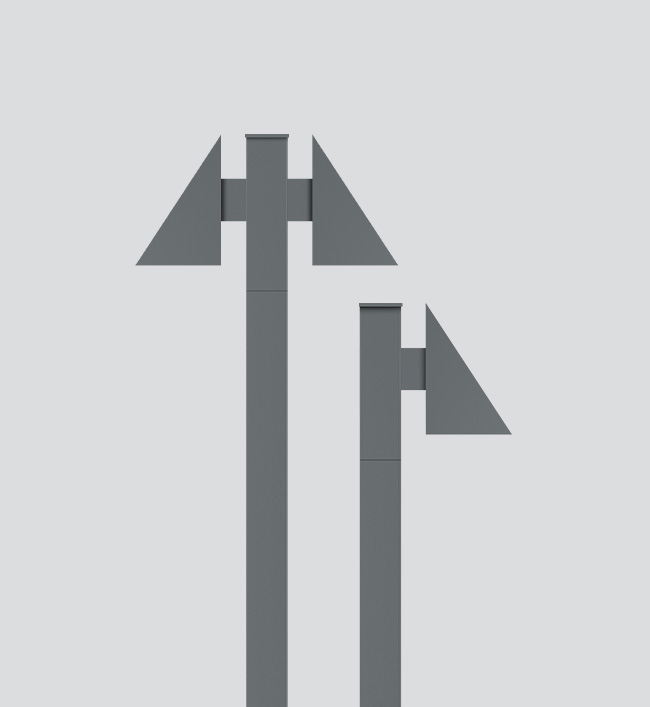

• Luminaire integrated with 30W / 50W-Single Arm & 60W & 100W-Double Arm.
• Suitable for mounting on 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >70
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22801-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application

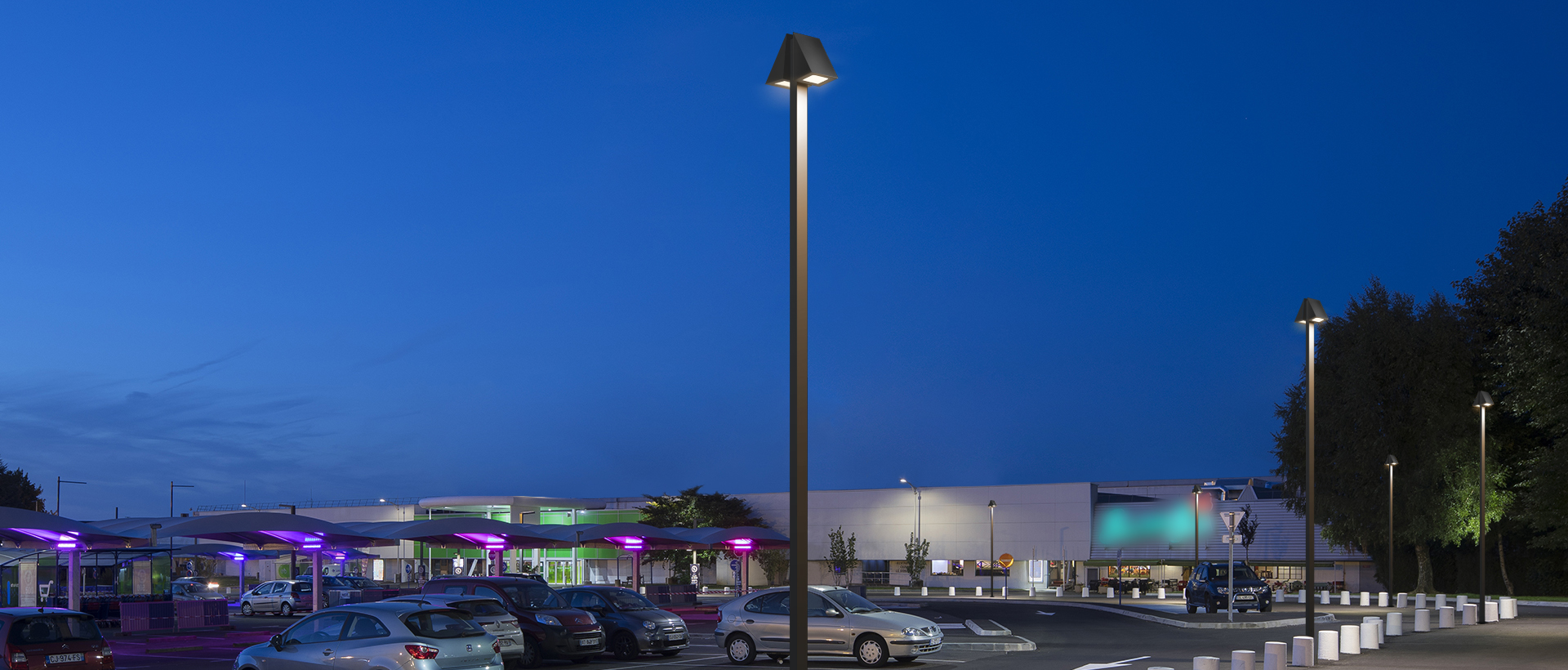

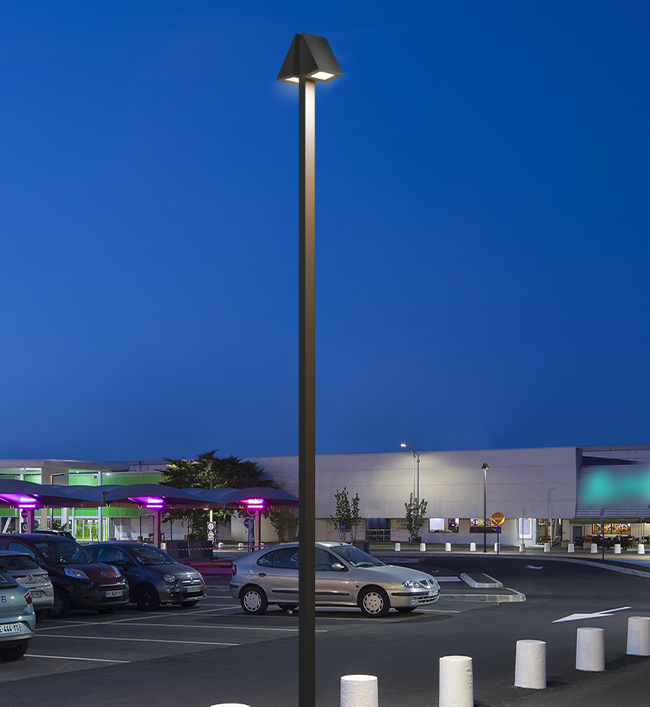

Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 7016 Anthracite grey
Graphite grey
through the lifetime of the installation. Product offered asymmetrical light distribution.
Product Description
• Luminaire made of aluminium with non corrosive stainless steel fasteners.
• Clear toughened glass.
• Luminaire integrated with 30W / 50W-Single Arm & 60W & 100W-Double Arm.
• Suitable for mounting on 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >70
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22801-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

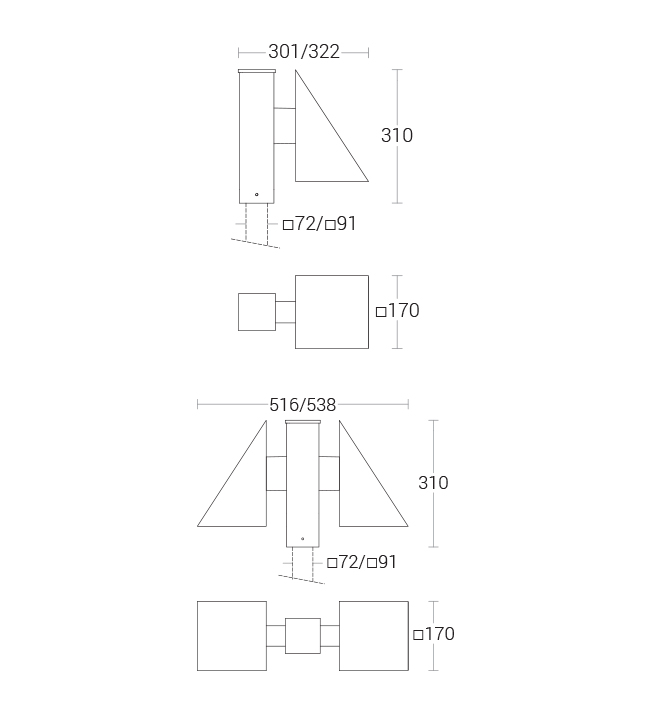

| 22801 | Dimension : 301 x 170 x 310, 322 x 170 x 310, 516 x 170 x 310, 538 x 170 x 310 LuminaireCoupling : Sq.72 - Ht.140mm, Sq.91 - Ht.140mm PoleBracketArm : Single Arm, Double Arm Wattage : 30W, 50W, 60W, 100W CCT : 3000K, 4000K, 5700K, 2700K CRI : >70 Optics : Type II ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years | 22801.pdf |
Configuration Options
