Spectra 2.0
“Spectra 2.0” pathway luminaire, is an innovative lighting solution designed to seamlessly integrate with its surroundings. This aesthetically crafted luminaire features a robust construction that ensures durability and consistent performance under all weather conditions. Engineered for longevity, it maintains its initial lighting quality throughout its operational life. The product delivers asymmetrical light distribution, providing efficient and focused illumination ideal for pathways and outdoor spaces.
Material
Body : Extruded aluminium alloy (grade 6063)
Impact Protection : IK08
Ingress Protection : IP65
Mounting : Extruded aluminium (grade 6063) suitable for
mounting on Ø76 / Ø88.9 / Sq.72 / Sq.91 pole.
Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV
Product Configurations
Wattage : 50W / 100W / 200W
Light Distribution : Type III (Type II & Type IV on request)
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 72,000 H
Area of Application
Illuminating parks, Gardens, Commercial complex, Smallar Roadways, Private driveways, Street lighting, Pathways in Residential buildings & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Material
Body : Extruded aluminium alloy (grade 6063)
Impact Protection : IK08
Ingress Protection : IP65
Mounting : Extruded aluminium (grade 6063) suitable for
mounting on Ø76 / Ø88.9 / Sq.72 / Sq.91 pole.
Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV
Product Configurations
Wattage : 50W / 100W / 200W
Light Distribution : Type III (Type II & Type IV on request)
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 72,000 H
Area of Application
Illuminating parks, Gardens, Commercial complex, Smallar Roadways, Private driveways, Street lighting, Pathways in Residential buildings & office complex.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

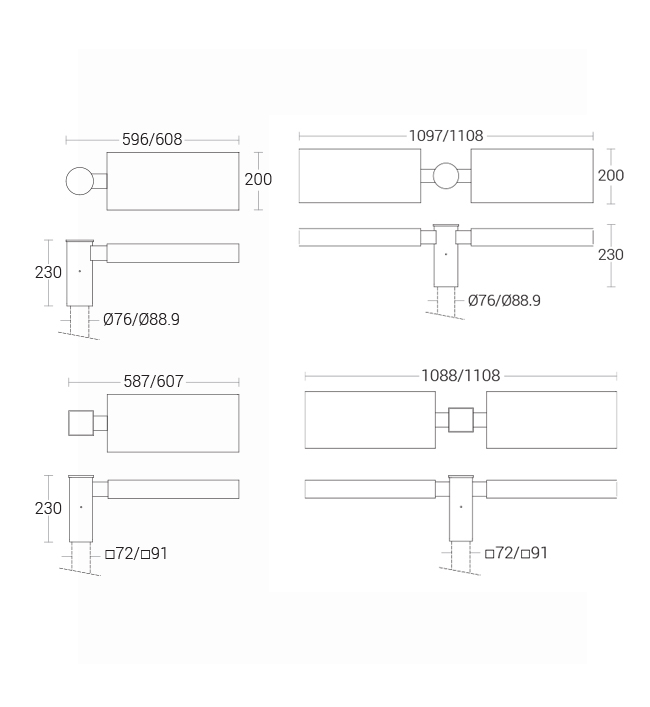

| 24460 | Dimension : 596 x 200 x 230, 608 x 200 x 230, 587 x 200 x 230, 607 x 200 x 230, 1097 x 200 x 230, 1108 x 200 x 230, 1088 x 200 x 230 LuminaireCoupling : Ø76 - Ht.140mm, Ø88.9 - Ht.140mm, Sq.72 - Ht.140mm, Sq.91 - Ht.140mm PoleBracketArm : Single Arm, Double Arm Wattage : 50W, 100W CCT : 3000K, 4000K, 5700K, 2700K CRI : >70 Optics : Type III ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years | 24460.pdf | 24460.txt | ||
| 24461 | Dimension : 596 x 200 x 230, 608 x 200 x 230, 587 x 200 x 230, 607 x 200 x 230, 1097 x 200 x 230, 1108 x 200 x 230, 1088 x 200 x 230 LuminaireCoupling : Ø76 - Ht.140mm, Ø88.9 - Ht.140mm, Sq.72 - Ht.140mm, Sq.91 - Ht.140mm PoleBracketArm : Single Arm, Double Arm Wattage : 100W, 200W CCT : 3000K, 4000K, 5700K, 2700K CRI : >70 Optics : Type III ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years | 24461.pdf | 24461.txt |
Configuration Options
