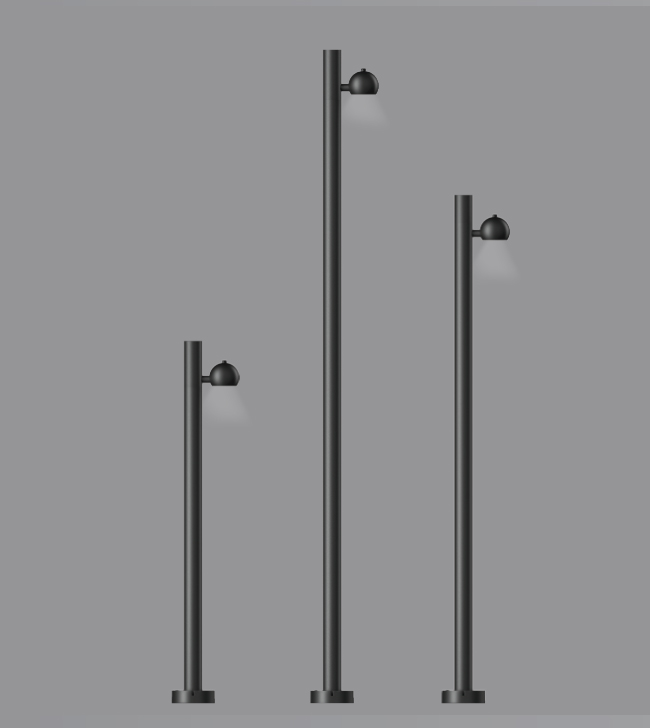

Parula
Its emphasis on creating a pleasant light distribution and high visual comfort, they cater to the needs of outdoor spaces while minimizing glare and discomfort for those in the vicinity.
Material
Body : Extruded aluminium tube (grade 6063) & Pressure die cast aluminium
Impact Protection : IK08
Ingress Protection : IP64
Diffuser : Clear toughened glass
Mounting : Die cast aluminium mounting base.
Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc
Product Configurations
Wattage : 1 x 6W LED
Light Distribution : Symmetrical
Tiltable : -45° to +45°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H
Area Of Application
Suitable for low traffic areas.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Material
Body : Extruded aluminium tube (grade 6063) & Pressure die cast aluminium
Impact Protection : IK08
Ingress Protection : IP64
Diffuser : Clear toughened glass
Mounting : Die cast aluminium mounting base.
Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc
Product Configurations
Wattage : 1 x 6W LED
Light Distribution : Symmetrical
Tiltable : -45° to +45°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H
Area Of Application
Suitable for low traffic areas.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

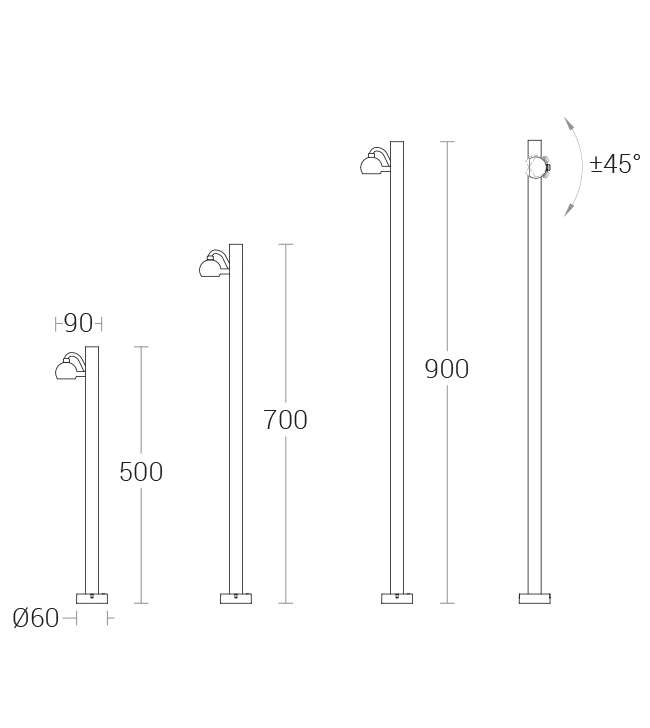

| 22784 | Dimension : 90 x Ø60 x 500, 90 x Ø60 x 700, 90 x Ø60 x 900 Wattage : 6W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years LuminaireOption : 24Vdc | 22784.pdf | 22784.txt |
Configuration Options
