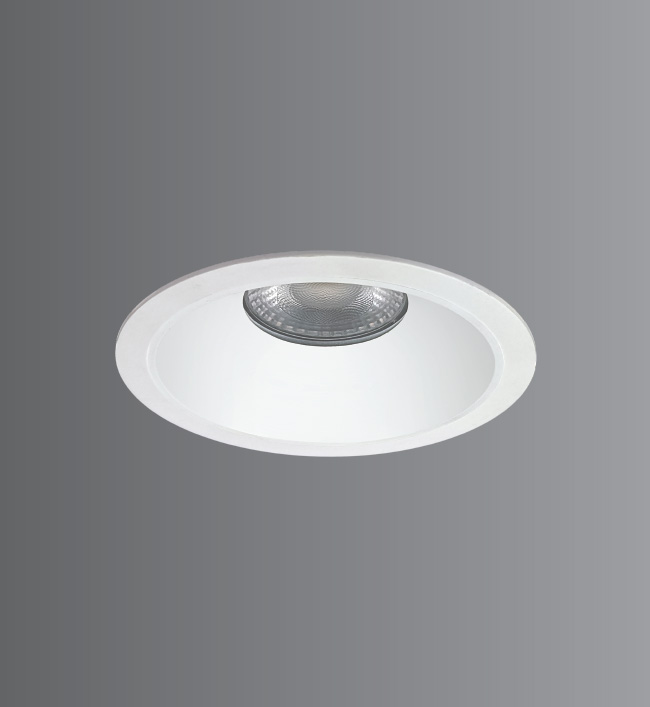

Liya
Our recess-mounted range of LED ceiling lights offers exceptional versatility for diverse lighting applications. Featuring high-quality LED sources, these luminaires ensure minimal energy consumption and an extended service life. Designed to accommodate both low and high mounting heights, they are ideal for installation in ceilings, catering to interior and exterior settings alike. With an elegant design that adheres to green lighting standards, these fixtures exemplify energy efficiency and aesthetic appeal.
Material
Body : Die-cast aluminium alloy
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Mounting : Recessed
Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Product Configurations
Wattage : 12W LED
Beam Angle : 60° (15° / 24° / 36° on request)
CCT : 2700K / 3000K / 4000K / 6000K
LED Life Time : L70 B10 60,000 H
Area Of Application

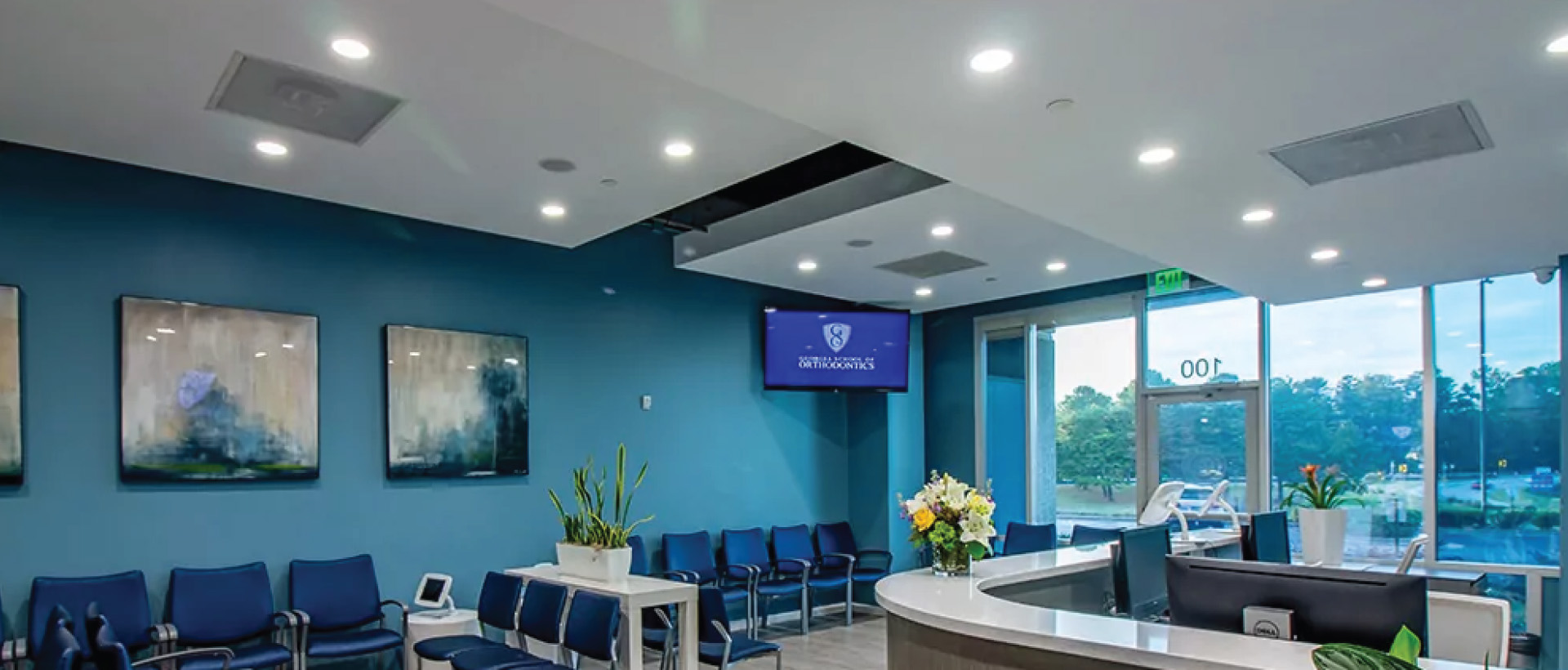

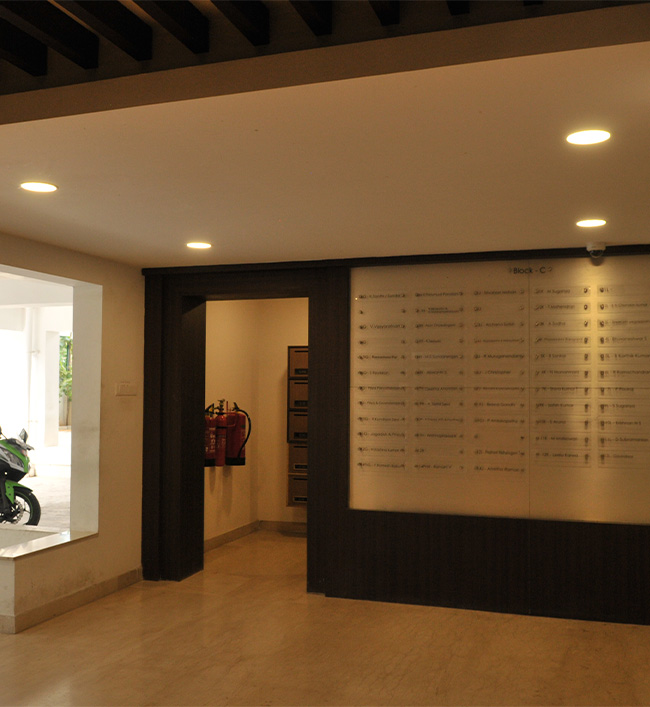

Retail Sector, Commercial & Business Centers, Residential town ships, Educational Institutes, Hospitality & Industrial sector, Entrance foyer.
Available Finish
Pure polyester powder coated RAL 9016 Traffic white.
Material
Body : Die-cast aluminium alloy
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Mounting : Recessed
Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Product Configurations
Wattage : 12W LED
Beam Angle : 60° (15° / 24° / 36° on request)
CCT : 2700K / 3000K / 4000K / 6000K
LED Life Time : L70 B10 60,000 H
Area Of Application
Retail Sector, Commercial & Business Centers, Residential town ships, Educational Institutes, Hospitality & Industrial sector, Entrance foyer.
Available Finish
Pure polyester powder coated RAL 9016 Traffic white.
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

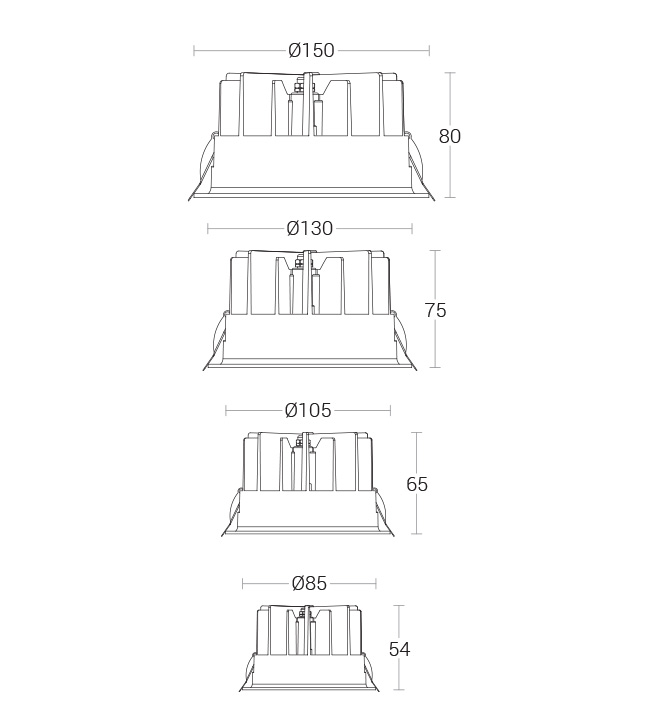

| 22816 | Dimension : Ø105 x 65 Wattage : 18W CCT : 3000K, 4000K, 6500K, 2700K CRI : >80 Optics : 60° ProductFinish : Powder Coating ProductFinishColour : White Warranty : 3 Years Controls : Switchable | 22816.pdf | 22816.txt | ||
| 22817 | Dimension : Ø130 x 75 Wattage : 30W CCT : 3000K, 4000K, 6500K, 2700K CRI : >80 Optics : 60° ProductFinish : Powder Coating ProductFinishColour : White Warranty : 5 Years Controls : Switchable | 22817.pdf | 22817.txt | ||
| 22818 | Dimension : Ø150 x 80 Wattage : 40W CCT : 3000K, 4000K, 6500K, 2700K CRI : >80 Optics : 60° ProductFinish : Powder Coating ProductFinishColour : White Warranty : 5 Years Controls : Switchable | 22818.pdf | 22818.txt | ||
| 22815 | Dimension : Ø85 x 54 Wattage : 12W CCT : 3000K, 4000K, 6500K, 2700K CRI : >80 Optics : 60° ProductFinish : Powder Coating ProductFinishColour : White Warranty : 3 Years Controls : Switchable | 22815.pdf | 22815.txt |
