Pyro Stix
Product Description
• Luminaire made of Stainless Steel Pipe (grade 304) & Pressure die cast aluminium pyro top.
• Non yellowing UV stabilized clear acrylic diffuser
• Mounting spike / die cast aluminium base arrangement to facilitate easy Installation at any desired location.
• Luminaire operating voltage is 24Vdc. Supplied with suitable external dc to dc converter, to be installed with suitable IP Junction box.
• Luminaire to be ordered with suitable power supply.
• Luminaire supplied with one metre cable length and IP67 connector.
• Low Voltage at 24V dc assures safety.
• Ordering guide : KL-24560-CCT (Colour Temperature)
• Available CCT : 2700K / 3000K / 4000K / 5700K

Product Benefits
• Timeless modern design, quick & simple installation.
• Corrosion resistant and Maintenance free.
• Soft diffused lighting provides pedestrians glareless and distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption

Area of Application
Suitable for low traffic areas.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
24560

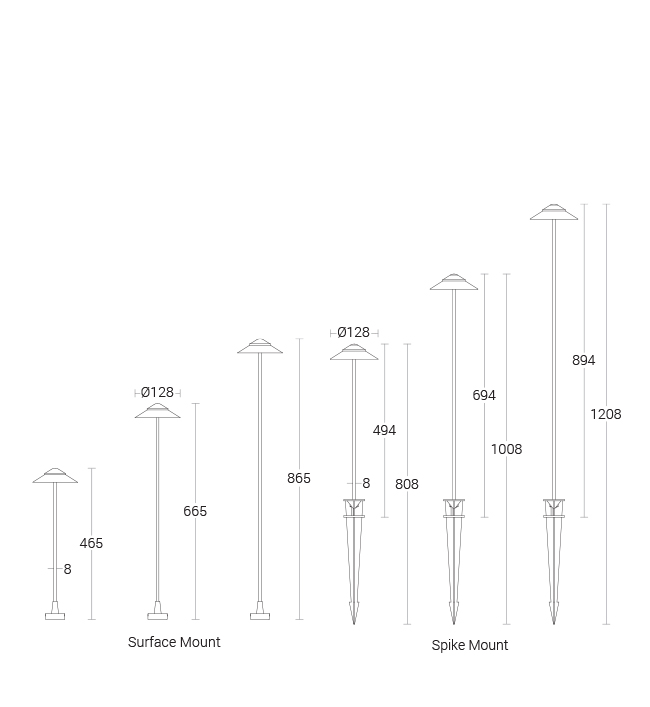

Dimension : 465, 665, 865, 808, 1008, 1208
Wattage : 6W
CCT : 3000K, 4000K, 5700K, 2700K
CRI : >80
ProductFinish : Powder Coating, Liquid Coating
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 3 Years
LuminaireOption : 24Vdc

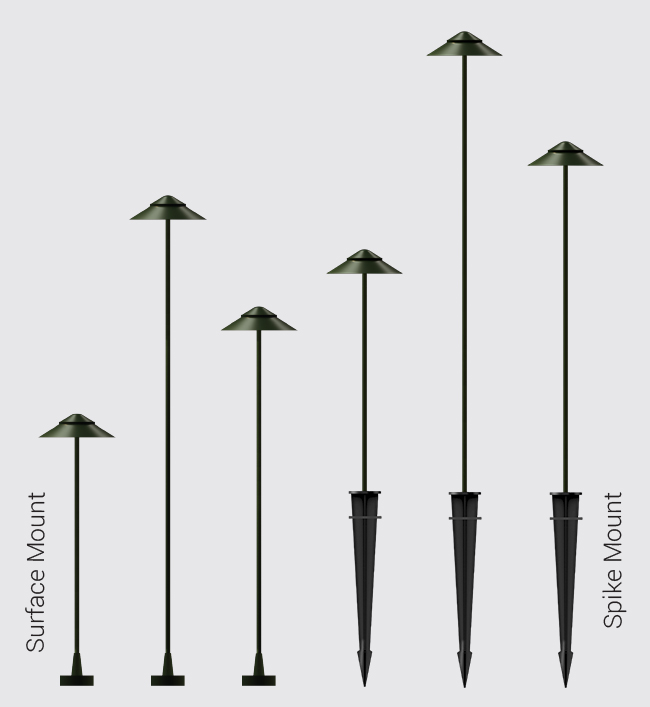

Mounting : Surface Mounting, Spike Mounting
24560.pdf 24560.txt
24Vdc product. Order required driver and accessories
