Crafted with a focus on exceptional visual comfort, the Line luminaire is designed to excel in creating both orientation and ambiance in outdoor spaces. Whether it's illuminating pathways, driveways, or outdoor seating areas, these luminaries are
adept at providing gentle yet effective general ambient light. This capability not only enhances visibility but also contributes to a sense of security and tranquillity during night-time hours. The design of Line luminaries ensures they blend
seamlessly into their surroundings while offering reliable performance and aesthetic appeal.

Material
Body : Extruded aluminium alloy (grade 6063)
Impact Protection : IK08
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Optical : Slight regress in the optical assembly for better glare control
Mounting : Suitable for mounting on Ø76mm / Sq.72mm pipe

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV

Product Configurations
Wattage : 30W / 60W
Light Distribution : Type III Medium
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application

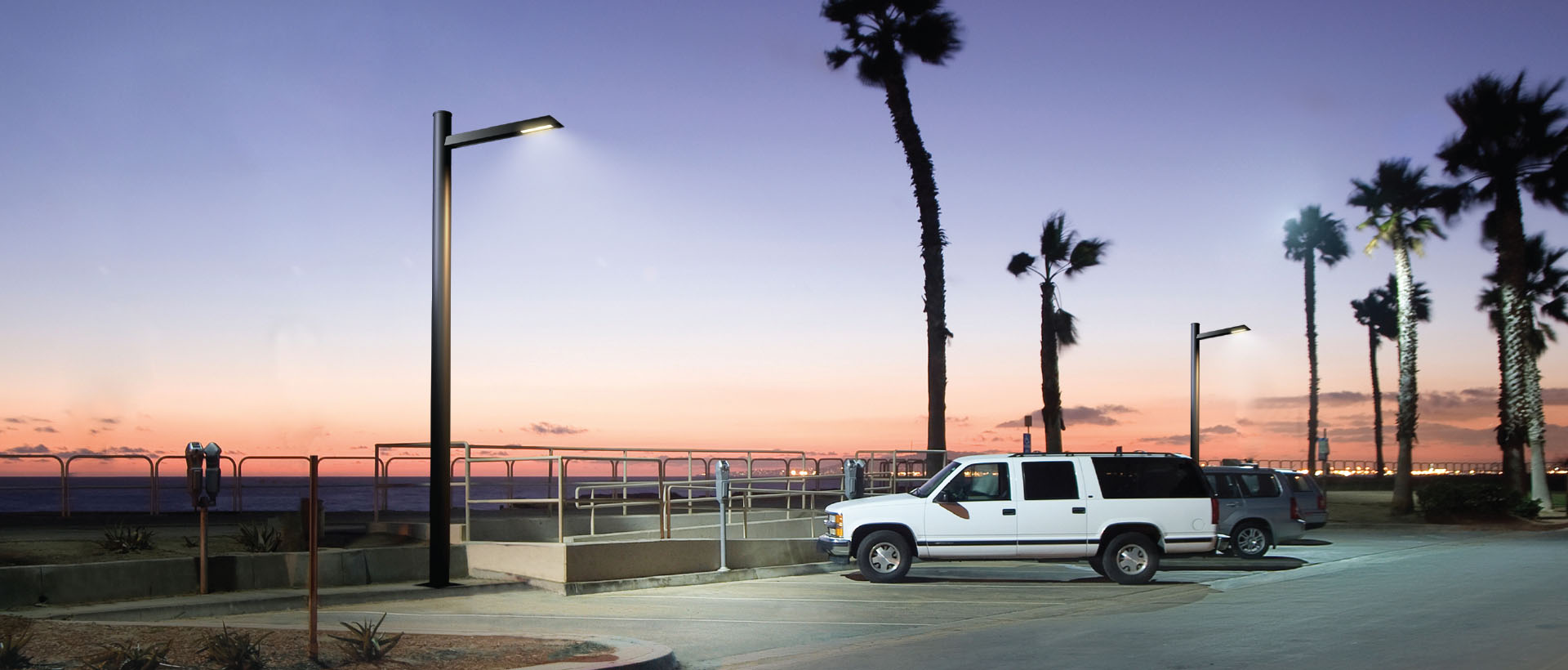

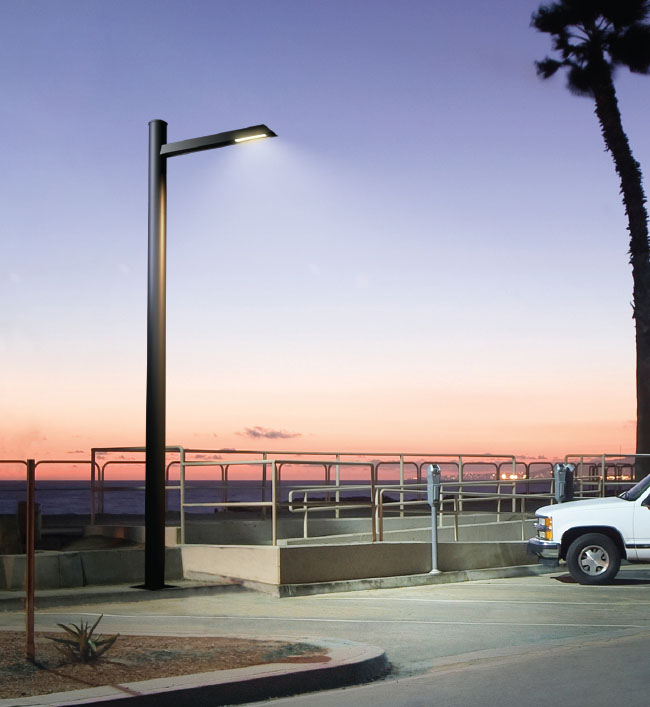

Illuminating parks, Gardens, Commercial complex, Pathways in residential buildings.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
